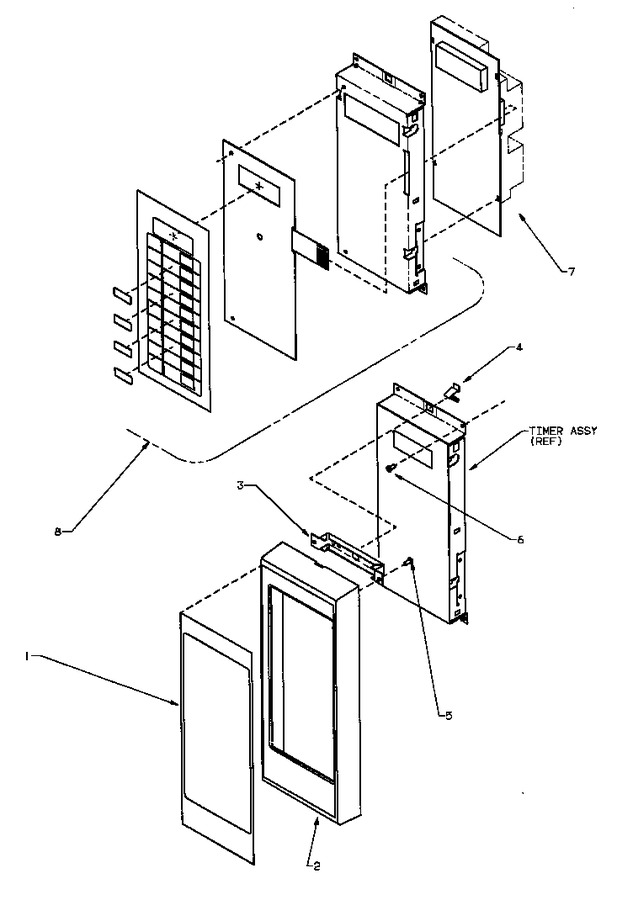

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8960701 | Insert Esc Brushed Chrome |
|
- | |||||
| 2 | D7730101 | Escutcheon Control |
|
- | |||||
| 3 | C8960301 | Bracket |
|
- | |||||
| 4 | B8379401 | Clip |
|
- | |||||
| 5 | M0234403 | Screw |
|
- | |||||
| 6 | M0231704 | Screw, Tf |
|
- | |||||
| 7 | R0163289 | Assy, P.c.board |
|
- | |||||
| 8 | R0163288 | Assy, Keyboard |
|
- |
