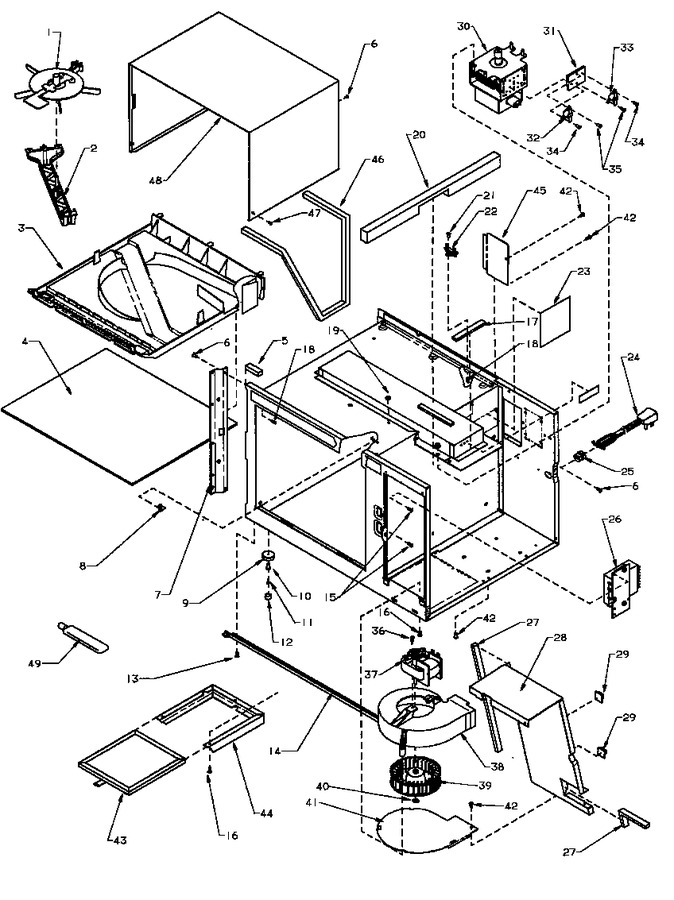

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8943002		Assy, Antenna		Appelez-nous	-
2	D7685502		Cradle, Antenna		Appelez-nous	-
3	D7692501		Grease Shield		Appelez-nous	-
4	C8936903		Tray-glass Floor		Appelez-nous	-
5	A3030301		Gasket (inch)		Appelez-nous	-
6	M0231704		Screw, Tf		Appelez-nous	-
7	C8935901		Brkt,hinge Support		Appelez-nous	-
8	B8374901		Support, Shelf		Appelez-nous	-
9	C8960601		Foot, Outer Case		Appelez-nous	-
10	M0571201		Eyelet		Appelez-nous	-
11	M0213147		Screw		Appelez-nous	-
12	C8965404		Plug Button		Appelez-nous	-
13	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
14	C8943602		Trim		Appelez-nous	-
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
16	M0230017		Screw,tc		Appelez-nous	-
17	A4591129		Gasket K		Appelez-nous	-
18	M0308801		Cap, Protective-threaded (red)		Appelez-nous	-
19	M0288808		Nut		Appelez-nous	-
20	B8369901		Gasket, Oven Top		Appelez-nous	-
21	M0225929		Screw		Appelez-nous	-
22	B5795305		Fuse, Thermal		Appelez-nous	-
23	B8367701		Window, Oven Light		Appelez-nous	-
24	B5674406		Cord-power		Appelez-nous	-
25	M0370007		Strain Relief		Appelez-nous	-
26	10403502		Kit, Interlock		Appelez-nous	-
27	A3030302		Gasket		Appelez-nous	-
28	D7685409		Blower Partition,black E Ct		Appelez-nous	-
29	M0104102		Clip, Cord				$ 8.10
30	C8798603		Magnetron		Appelez-nous	-
31	B8380601		Plate, Thermal Cutout		Appelez-nous	-
32	18QBP110H		Thermal Cutout   (Replaces: B5684112)		Appelez-nous	-
33	B5684113		Protector, Thermal		Appelez-nous	-
34	M0232012		Screw		Appelez-nous	-
35	M0229916		Screw T.c		Appelez-nous	-
36	M0213123		Screw		Appelez-nous	-
37	D7670306		Motor, Blower		Appelez-nous	-
38	D7684601		Scroll, Blower		Appelez-nous	-
39	C8793501		Blower Wheel		Appelez-nous	-
40	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 8.96
41	C8942501		Brkt Scroll		Appelez-nous	-
42	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 7.30
43	10169101		Filter, Preform		Appelez-nous	-
44	D7740902		Bracket		Appelez-nous	-
45	B8370701		Cover, Light		Appelez-nous	-
46	A3263907		Gasket - Each		Appelez-nous	-
47	M0249719		Screw		Appelez-nous	-
48	D7684903		Wrapper		Appelez-nous	-
49	M0275501		Sealer		Appelez-nous	-
NI	M0321209		Tie-elect.		Appelez-nous	-
