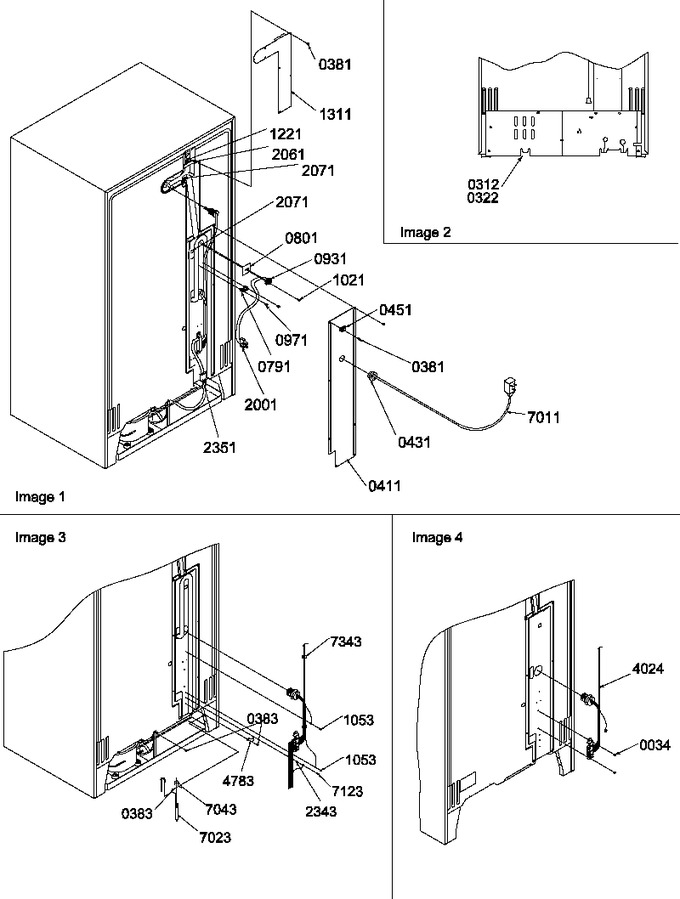

01 - Cabinet Back


02 - Cabinet Parts


03 - Control Assy


04 - Deli, Shelves, Crisper Assemblies & Acs


05 - Drain Systems, Rollers, And Evap Assy


06 - Fz Door And Toe Grille


07 - Fz Shelves And Lights


08 - Ice Maker Parts And Add On Ice Maker Kit


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
34	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
312	D7788911		Assy,mc Back		Appelez-nous	-
322	M0201216		Screw - Sm		Appelez-nous	-
381	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
383	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
411	10178406		Cover, O.c.back		Appelez-nous	-
431	A4554813		Snap Bushing		Appelez-nous	-
451	M0108001		Clamp, Tube		Appelez-nous	-
791	Y10203701		Strain Relief		Appelez-nous	-
801	10377602		Insulation, Term Block		Appelez-nous	-
931	C8969204		Block, Term		Appelez-nous	-
971	WP489474		Screw 1``   (Replaces: M0211021)			Immediately	$ 8.55
1021	M0219758		Screw		Appelez-nous	-
1053	WP489399		Screw   (Replaces: M0232903)				$ 7.30
1221	M0310319		Plug Button		Appelez-nous	-
1311	10178505		Cover - Wire		Appelez-nous	-
2001	10786301		Jumper, Pwr Cord		Appelez-nous	-
2061	A3189336		Gasket, Foam		Appelez-nous	-
2071	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
2343	M0272803		Lock Washer		Appelez-nous	-
2351	M0104102		Clip, Cord				$ 8.10
4024	10893701		Harness, Cabinet		Appelez-nous	-
4783	B5794201		Clamp		Appelez-nous	-
7011	B5669014		Cord, Power		Appelez-nous	-
7023	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7043	10547001		Clip, Drier		Appelez-nous	-
7123	M0232330		Screw, Spextite		Appelez-nous	-
7343	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
