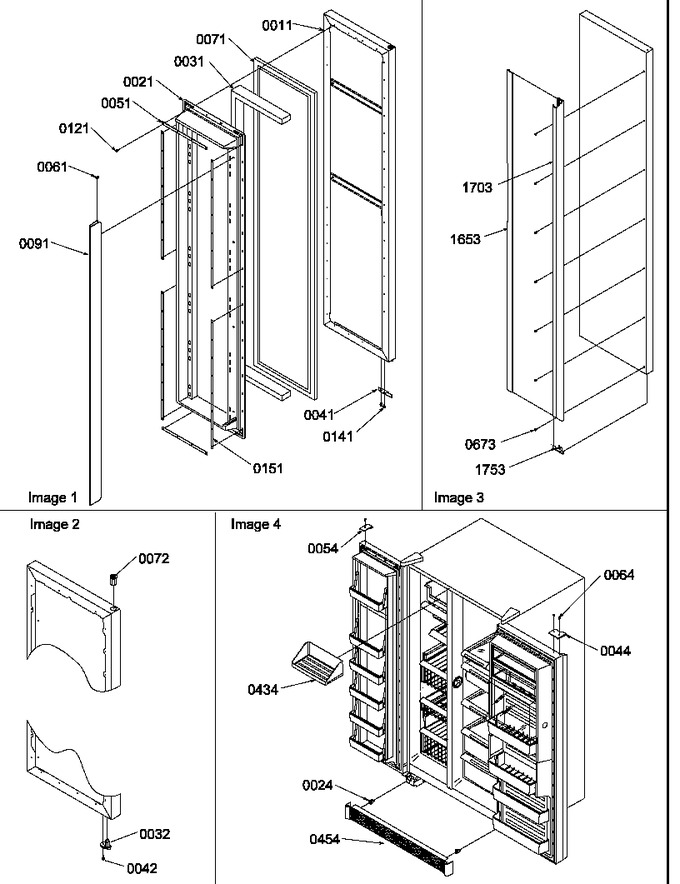

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881103W		Ass`y, Frz Door(white)		Appelez-nous	-
21	10534901		Liner, Frz. Door		Appelez-nous	-
24	M0117302		Clip, Grille		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
32	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
41	C8972405		Stop-w Door		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
44	10871101		Cap, W Ref Handle Top		Appelez-nous	-
51	C8982801		Retainer, Door Liner		Appelez-nous	-
54	10871102		Cap-w Fz Hndl Top		Appelez-nous	-
61	10063102		Clip, Door Dike		Appelez-nous	-
64	M0213517		Screw K		Appelez-nous	-
71	10359702		Gasket (w Frz Dr)		Appelez-nous	-
72	10961001		Bushing, Door (wht)		Appelez-nous	-
91	10063206		Rem Dike I & W Lower		Appelez-nous	-
121	M0219730		Screw				$ 7.65
141	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
151	D7828601		Retainer, Door Liner		Appelez-nous	-
434	10870801		Shelf, Ice Cream		Appelez-nous	-
454	10470302		Assy, Toe Grille (white)		Appelez-nous	-
673	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1653	10945901		Insert, W Handle		Appelez-nous	-
1703	12106202		Handle, Frz (white)		Appelez-nous	-
1753	10871202		Cap-w Fz Hndl Bot.		Appelez-nous	-
