SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Control Assy


04 - Deli, Shelves, Crisper Assemblies & Acs

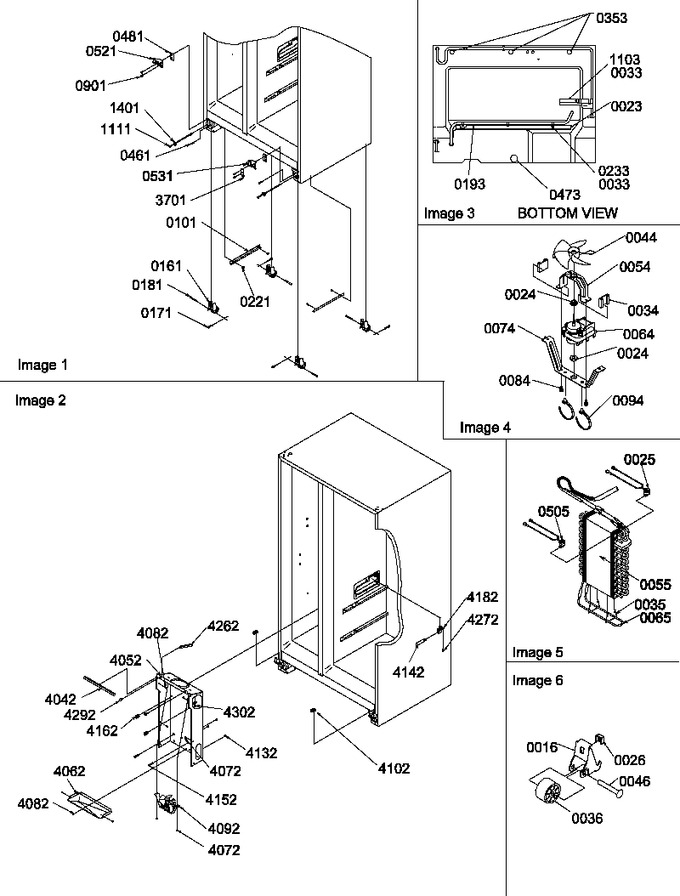

05 - Drain Systems, Rollers, And Evap Assy


06 - Fz Door And Toe Grille


07 - Fz Shelves And Lights


08 - Ice Maker Parts And Add On Ice Maker Kit


09 - Machine Compartment


10 - Ref Door


11 - Ref/fz Shelves, Lights, And Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	C8742401		Assy, Roller Bracket		Appelez-nous	-
23	10906506		Insul., Oc Bot		Appelez-nous	-
24	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
25	12017820		Thermostat		Appelez-nous	-
26	M0286708		Nut, Speed				$ 47.85
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
34	A1047901		Shim		Appelez-nous	-
35	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
36	WP10450603		Roller   (Replaces: 10450602)			Immediately	$ 8.27
44	12033101		Fan-evap				$ 35.30
46	M1205302		Rivet				$ 5.85
54	C8881301		Brkt Evap Fan		Appelez-nous	-
55	RO170065		Low-side Assy		Appelez-nous	-
64	WP10513804		Motor, Evap.   (Replaces: C8891604)				$ 256.76
65	WP10428406		Heater, Evap. (230 Vac)   (Replaces: 10428406)				$ 100.32
74	D7767705		Brkt, Mtr Shroud		Appelez-nous	-
84	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
94	M0322202		Tie Wire		Appelez-nous	-
101	C8913701		Support, Mc		Appelez-nous	-
161	C8956101		Assy, Roller Bracket		Appelez-nous	-
171	M1200004		Cotter Pin K		Appelez-nous	-
181	M1200202		Pin K		Appelez-nous	-
193	12142001		Tube-drain		Appelez-nous	-
221	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
233	M0102303		Clamp		Appelez-nous	-
353	A3080001		Plug, Button (blk)		Appelez-nous	-
461	M0204339		Screw Bolt K		Appelez-nous	-
473	A3076901		Plug-button				$ 5.70
481	12187601		Shim-bot Hinge		Appelez-nous	-
505	R0161085		Tstat-safety   (Replaces: 12017819)				$ 124.18
521	10496107		Kit,hinge Lh Btm(w)		Appelez-nous	-
531	10496113		Hinge, R Btm Wh E-ct		Appelez-nous	-
901	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
1103	12021201		Baffle, Air		Appelez-nous	-
1111	10093301		Screw, Adj Roller		Appelez-nous	-
1401	M0274067		Washer, Nylon		Appelez-nous	-
3701	12146901		Brkt-adj Hinge		Appelez-nous	-
4042	A3189362		Gasket, Foam		Appelez-nous	-
4052	D7865812		Evap. Shield		Appelez-nous	-
4062	D7850202		Drip Tray Pnt.		Appelez-nous	-
4072	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
4082	10098801		Rivet		Appelez-nous	-
4092	Y00000000		See Note Evap Fn Mtr Assy -- (see Image 4 Pages 18 & 19 For Assy Breakdown)		Appelez-nous	-
4102	R0181181		Kit,dr Closure   (Replaces: 12113501)			Immediately	$ 7.55
4132	M0580002		Grommet A		Appelez-nous	-
4142	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
4152	10527401		Clip, Evap		Appelez-nous	-
4162	10623003		Clip, Evaporator		Appelez-nous	-
4182	D7845102		Socket, Lamp		Appelez-nous	-
4262	B8386602		Gasket		Appelez-nous	-
4272	M0217225		Screw		Appelez-nous	-
4292	M0580003		Grommet		Appelez-nous	-
4302	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30

    View Diagram in Separate Window       Print Part List
