Diagram # Part Number Description Series Availability Ships Price Add to Cart
151 D7846014 Assy, Frz Back Appelez-nous -
222 D7547411 Control-damper Appelez-nous -
232 C8902601 Insert, Control Appelez-nous -
242 10862703 Cover, Control Appelez-nous -
252 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

291 D7827402 Cover, Fill Tube Appelez-nous -
322 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

402 10176602 Air Duct, Waxed Appelez-nous -
441 C8994001 Plug Button Appelez-nous -
511 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

532 D7788201 Insulation Appelez-nous -
552 D7822404 Box, Bottom Control Appelez-nous -
581 D7838302 Cover, Supply Air Appelez-nous -
651 B8386602 Gasket Appelez-nous -
662 M0216539 Screw Appelez-nous -
671 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

722 A3044208 Spacer Damper Appelez-nous -
732 D7868606 Box, Control Top Appelez-nous -
782 B8345401 Gasket, Damper Appelez-nous -
812 10177901 Gasket, Air Duct Appelez-nous -
881 C8976201 Clamp Appelez-nous -
891 C8976102 Gasket, Air Block Appelez-nous -
962 C8977301 Clamp Appelez-nous -
972 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

1052 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

1092 C8992302 Brkt-control Cover Appelez-nous -
1382 D7795828 Knob, Wh Control (red) Appelez-nous -
1392 D7795826 Knob, Control (wht) Appelez-nous -
1402 D7846103 Control-temp Appelez-nous -
2102 10383201 Gasket, Damper Appelez-nous -
4701 D7865914 Cover, Evap. Appelez-nous -
7122 M0232330 Screw, Spextite Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

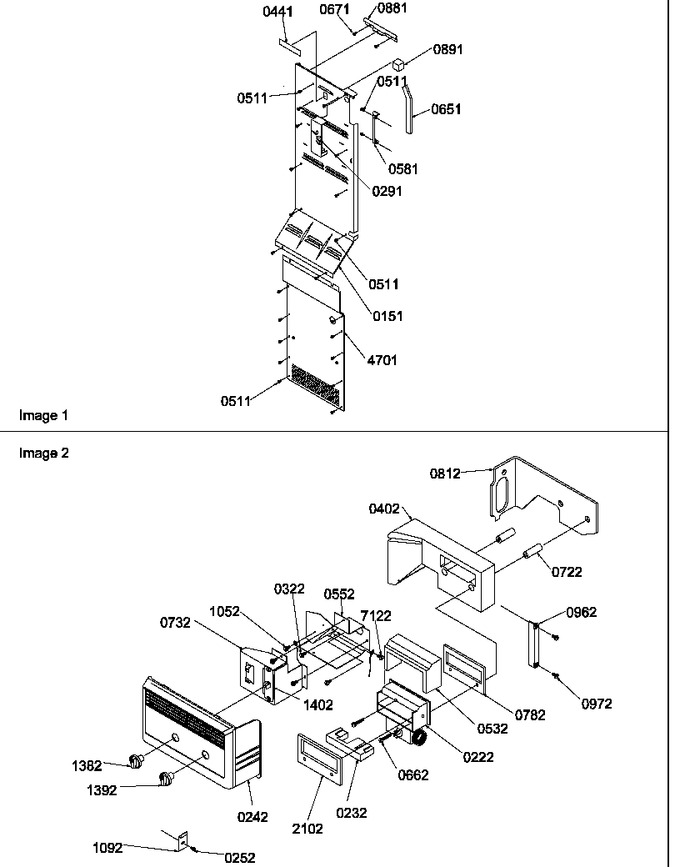

Diagram for SR520SW (BOM: P1183002W W)
