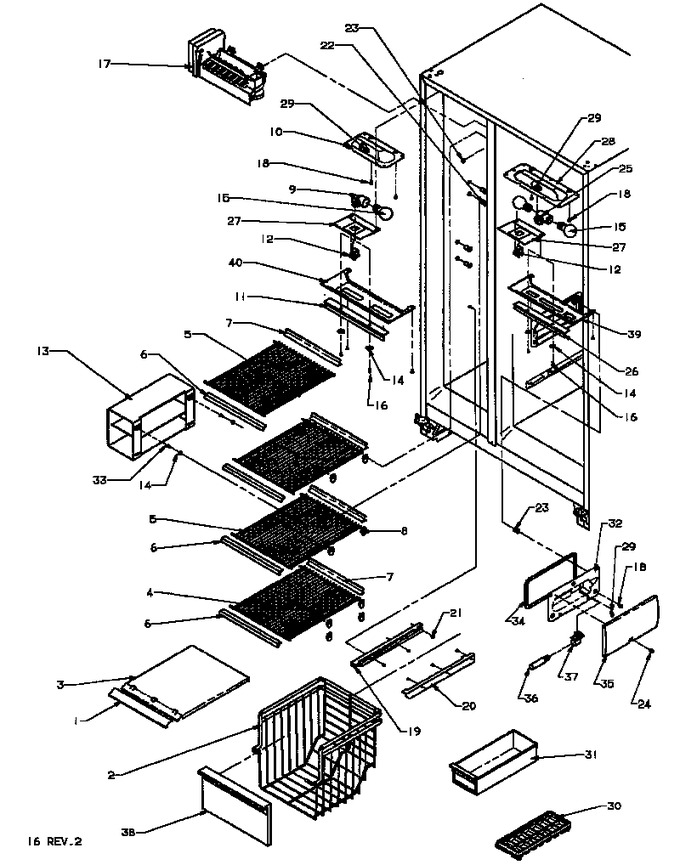

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7616690 | Trim-fz Shelf |
|
- | |||||
| 2 | D7820803 | Basket, Freezer |
|
- | |||||
| 3 | D7781502 | Freezer Shelf |
|
- | |||||
| 4 | D7788312 | Shelf, Fz Wire |
|
- | |||||
| 5 | D7788313 | Shelf, Frz |
|
- | |||||
| 6 | 10049937 | Trim, Shelf (front) |
|
- | |||||
| 7 | C8913609 | Trim |
|
- | |||||
| 8 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 9 | C8973404 | Socket-light |
|
- | |||||
| 10 | D7760102 | Housing Frz Light |
|
- | |||||
| 11 | 10014707 | Shield, Light |
|
- | |||||
| 12 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 35.18 | ||||
| 13 | D7620104 | Rack, Ice |
|
- | |||||
| 14 | M0270508 | Washer |
|
- | |||||
| 15 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 16 | M0219546 | Screw |
|
- | |||||
| 17 | Y00000000 | See Note Add On Ice Maker -- (available Through Sales, See Pages 34 And 35) |
|
- | |||||
| 18 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 6.57 | ||||
| 19 | 10619601 | Glide, Frz. (left) |
|
- | |||||
| 20 | 10619602 | Glide, Frz. (right) |
|
- | |||||
| 21 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 7.71 | |||||
| 22 | C8973701 | Plug, Frz Shelf Support |
|
- | |||||
| 23 | M0580007 | Grommet, Screw |
|
- | |||||
| 26 | 10014709 | Shield, Light, Ref |
|
- | |||||
| 27 | D7297603 | Cover, Light Sw |
|
- | |||||
| 28 | D7716404 | Housing-ref Light |
|
- | |||||
| 29 | B5733302 | Clip, Ground |
|
- | |||||
| 30 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 43.06 | ||||
| 31 | 10423117 | Bin, Egg |
|
- | |||||
| 33 | M0219559 | Screw |
|
- | |||||
| 38 | D7820721 | Front,basket |
|
- | |||||
| 39 | 10493201 | Cover, Ref. Light |
|
- | |||||
| 40 | 10493301 | Cover, Frz Light |
|
- |
