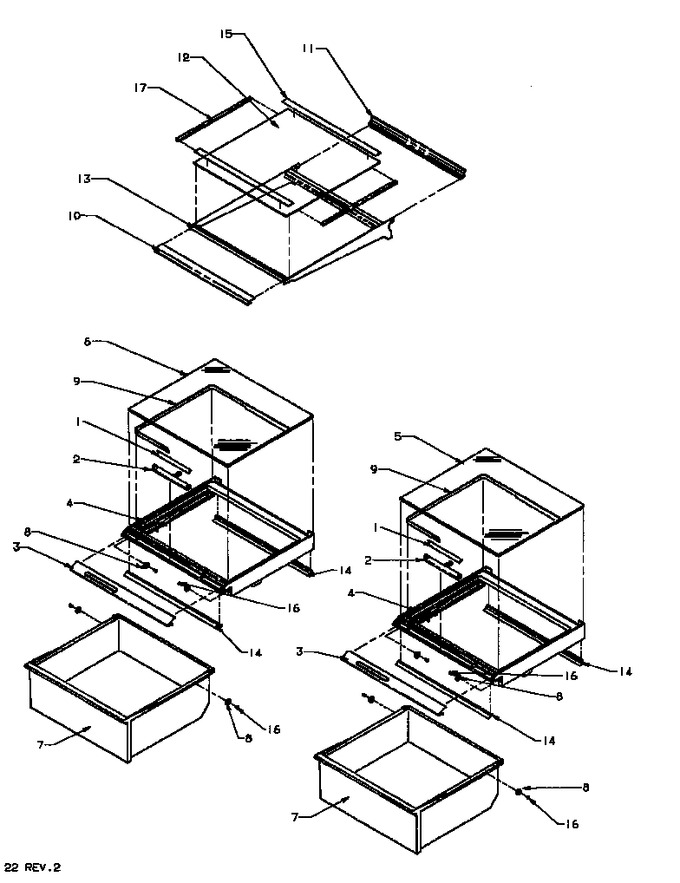

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10199910		Insert, Crisp Sl		Appelez-nous	-
2	10289908		Slide Crisper Control		Appelez-nous	-
3	10524302		Trim, Crisper Top Frt		Appelez-nous	-
4	10470102		Frame, Crisper		Appelez-nous	-
4	10470101		Frame, Crisper		Appelez-nous	-
5	10370046		Glass, Shelf		Appelez-nous	-
6	Y10370045		Glass, Shelf		Appelez-nous	-
7	10471908		Pan-crisper		Appelez-nous	-
8	10481001		Roller, Pan				$ 10.99
9	10519307		Band, Crisper		Appelez-nous	-
10	10049958		Trim, Shelf Front		Appelez-nous	-
11	C8913610		Trim, Glass Shelf		Appelez-nous	-
12	10370047		Glass, Shelf		Appelez-nous	-
13	10579111		Frame, Cantilever Shelf		Appelez-nous	-
14	D7718402		Seal Crisper		Appelez-nous	-
14	10523402		Seal, Crisper Frt		Appelez-nous	-
15	A3189355		Gasket, Foam		Appelez-nous	-
16	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 9.71
17	10635802		Extr., Glass Shelf		Appelez-nous	-
NI	10543735		Assy,up Crisp Frm.		Appelez-nous	-
NI	10543736		Ass`y, Lwr Crisp Fr		Appelez-nous	-
NI	10582420		Ass`y, Split Shelf		Appelez-nous	-
