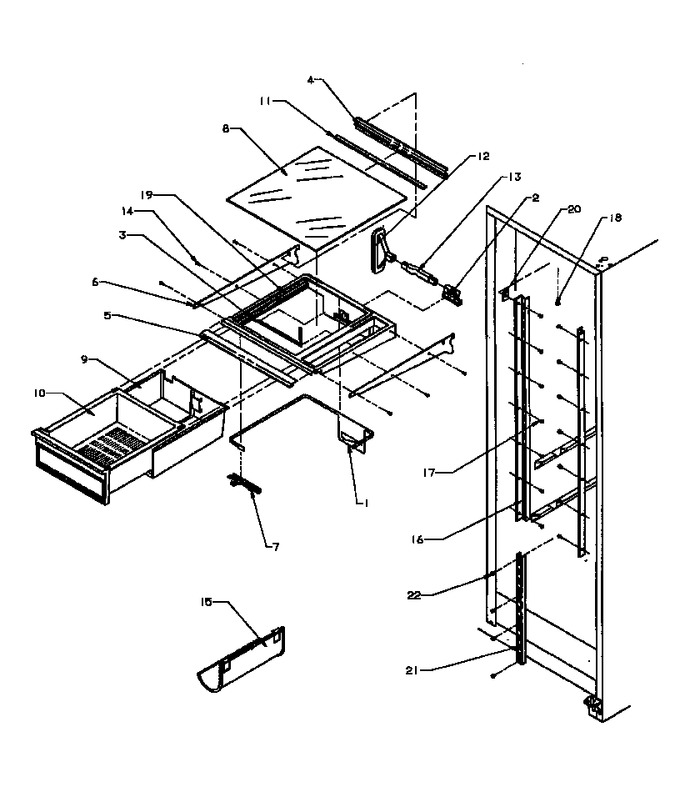

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7859504		Band M.k. Control		Appelez-nous	-
2	D7869101		Ext. Air Duct		Appelez-nous	-
3	A3030353		Gasket		Appelez-nous	-
4	C8990406		Trim M.k Top Rear		Appelez-nous	-
5	10049959		Trim, Shelf Front		Appelez-nous	-
6	D7862988		Rail, Blank Side		Appelez-nous	-
6	D7862989		Rail, Blank Side		Appelez-nous	-
7	D7859402		Slide-mk Control		Appelez-nous	-
8	10370048		Glass, Shelf (mk Shelf)		Appelez-nous	-
9	D7698112		Sleeve M.k. V		Appelez-nous	-
10	D7698342		Pan-meatkeeper		Appelez-nous	-
11	10043101		Ext. Rear Glass		Appelez-nous	-
12	10546701		Grommet, Meat Keeper		Appelez-nous	-
13	D7869001		Xduct M.k. Air		Appelez-nous	-
14	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
15	10448901		Rack, Wine		Appelez-nous	-
16	D7789806		Ladder Cantilever		Appelez-nous	-
16	D7789805		Ladder Cantilever		Appelez-nous	-
17	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.43
18	M0580007		Grommet, Screw		Appelez-nous	-
19	D7853303		Frame,meatkeeper		Appelez-nous	-
20	C8992301		Bracket		Appelez-nous	-
