Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 10507902 Pan, Drain Appelez-nous -
3 M0219704 Screw Appelez-nous -
4 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.59

5 10495901 Box, H. V. Appelez-nous -
6 10495701 Bracket, Drain Pan Mtg. Appelez-nous -
7 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 7.70

8 10497801 Cover H.v. Box Appelez-nous -
9 M0216517 Screw Appelez-nous -
10 M0118703 Clip, Guide Appelez-nous -
11 M0585601 Tab, Wire Tie Appelez-nous -
12 10518701 Blade, Fan Appelez-nous -
13 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 6.80

14 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 7.47

15 YB8358601 Bale Strap Appelez-nous -
16 B8384901 Pin, Comp. Mtg. Appelez-nous -
17 B8385001 Clip, Comp. Mtg Appelez-nous -
18 10377003 Overload Appelez-nous -
19 10266401 Shield-capacitor Appelez-nous -
20 2154436 Relay-ptc   (Replaces: C8931502) Special Order $ 127.52

21 WPW10662129 Capacitor   (Replaces: C8931602) In-Stock Immediately $ 52.97

22 C8960801 Term Cover Appelez-nous -
23 10496501 Kit,shroud/brkt Sound Appelez-nous -
24 833697 Motor, Fan   (Replaces: 10448603) In-Stock Immediately $ 98.23

25 W10439652 Kit, Compressor   (Replaces: 10507802) Special Order $ 397.98

26 10461505 Cont, Adap. Defrost Appelez-nous -
27 M0213529 Screw Appelez-nous -
28 10704201 Harness, Mach. Comp. Appelez-nous -
29 10602404 Kit,shroud/brkt Sound Appelez-nous -
30 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.43

31 A4539603 Pop Rivet Appelez-nous -
32 M0110505 Clip-cable Appelez-nous -
34 M0223803 Screw Appelez-nous -
35 10580402 Ass`y, Cond/pan (e Coat) Appelez-nous -
36 M0253916 Screw Appelez-nous -
38 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.85

39 10578701 Ass`y, Mach Comp Back (r) Appelez-nous -
40 10578801 Ass`y, L. Mc Back Appelez-nous -
41 10470508 Mc Back-e Ct Appelez-nous -

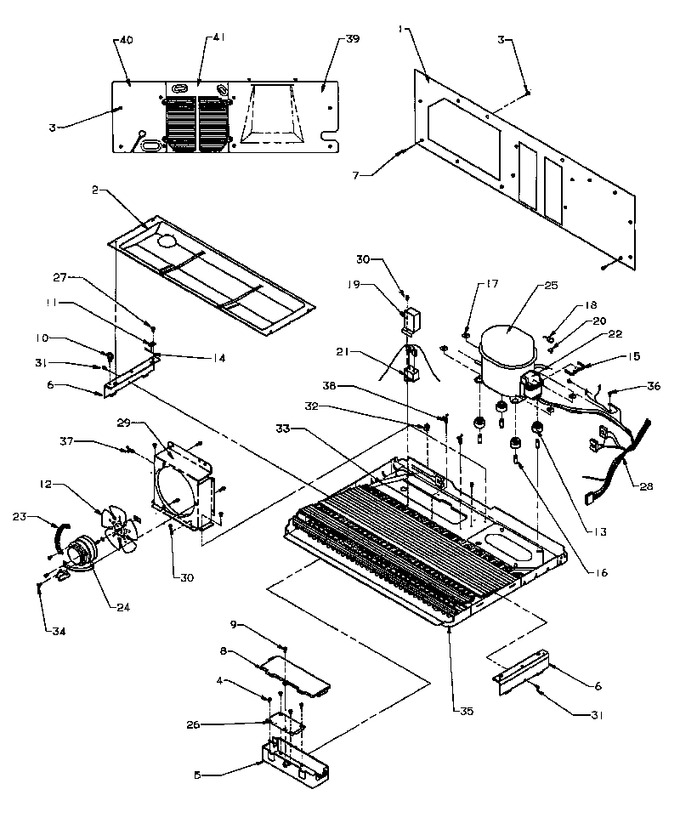

    View Diagram in Separate Window     Print Icon   Print Part List
