SELECT A DIAGRAM

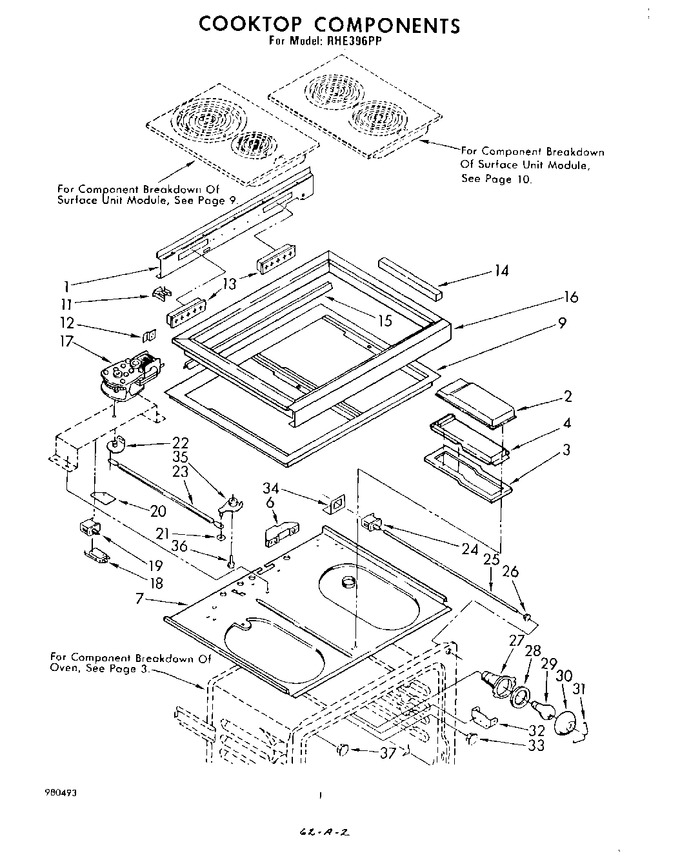

01 - Cook Top


02 - Oven


03 - Backguard


04 - Door And Drawer


05 - Surface Unit


06 - Surface Unit Rck 886 (261951)


07 - Grille Kit Rck 882 (261949)


08 - Griddle Rck 884 (261950) , Cutting


09 - Rotisserie Rck 890 (242808)


11 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
1	868801		Shield, Wire		Appelez-nous	-
2	868430		Screw 10-24 X 1/2		Appelez-nous	-
2	868803		Cover, Vent Duct		Appelez-nous	-
3	868802		Gasket, Duct		Appelez-nous	-
4	865960		Duct, Sub Top		Appelez-nous	-
4	681151		Screw, 10-24 X 1/2		Appelez-nous	-
6	595119		Screw, 10-24 X 5/8 (2)		Appelez-nous	-
6	868281		Housing, Latch		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2		Appelez-nous	-
7	868800		Panel, Sub Top		Appelez-nous	-
9	241425		Screw, 10-24 X 1/4 (2)		Appelez-nous	-
9	868805		Cooktop (chrome)		Appelez-nous	-
9	868430		Screw, 10-24 X 1/2 (6)		Appelez-nous	-
11	868422		Terminal, Female (10)		Appelez-nous	-
11	486525		Screw, 8-32 X 3/16		Appelez-nous	-
12	868421		Clip, Receptacle (4)		Appelez-nous	-
12	241425		Screw, 10-24 X 1/4 (4)		Appelez-nous	-
13	868420		Receptacle, Female (2)		Appelez-nous	-
14	868948		Tape Foam (cooktop)		Appelez-nous	-
15	866034		Seal, Cooktop (1)		Appelez-nous	-
16	681151		Screw, 10-12 X 1/2 (2)		Appelez-nous	-
16	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
16	868804		Frame, Cooktop		Appelez-nous	-
17	273225		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
17	834849		Motor, Door Latch		Appelez-nous	-
18	834906		Switch, Limit (lower)		Appelez-nous	-
18	834903		Screw, 4-40 X 1-1/4		Appelez-nous	-
19	868280		Switch, Limit (upper)		Appelez-nous	-
19	834903		Screw, 4-40 X 1-1/4		Appelez-nous	-
20	834905		Insulator, Limit Switch (2)		Appelez-nous	-
21	241547		Pushnut, 3/16``		Appelez-nous	-
22	455105		Pin, Spring		Appelez-nous	-
22	834483		Cam, Door Latch		Appelez-nous	-
23	868487		Tie Bar		Appelez-nous	-
24	WP8283288		Switch, Door Latch & Oven Light   (Replaces: 865677)			Immediately	$ 104.24
25	866116		Rod, Switch		Appelez-nous	-
25	866224		Retainer, Spring		Appelez-nous	-
26	834558		Plug Button		Appelez-nous	-
27	241422		Washer		Appelez-nous	-
27	866133		Socket, Light		Appelez-nous	-
27	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
28	241609		Gasket, Cover		Appelez-nous	-
29	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 17.51
30	241592		Cover, Oven Light		Appelez-nous	-
31	866134		Retainer, Oven Light Cover		Appelez-nous	-
32	486146		Screw, 10-32 X 1/2				$ 12.83
32	865959		Bracket, Thermostat Bulb		Appelez-nous	-
33	142017		Plug Button (1/2``)		Appelez-nous	-
34	865961		Bracket, Door Switch		Appelez-nous	-
34	681151		Screw, 10-24 X 1/2		Appelez-nous	-
35	241422		Washer		Appelez-nous	-
35	834484		Latch, Door		Appelez-nous	-
36	241564		Axle, Latch		Appelez-nous	-
36	256158		Pushnut		Appelez-nous	-
37	251379		Button, Plug (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
