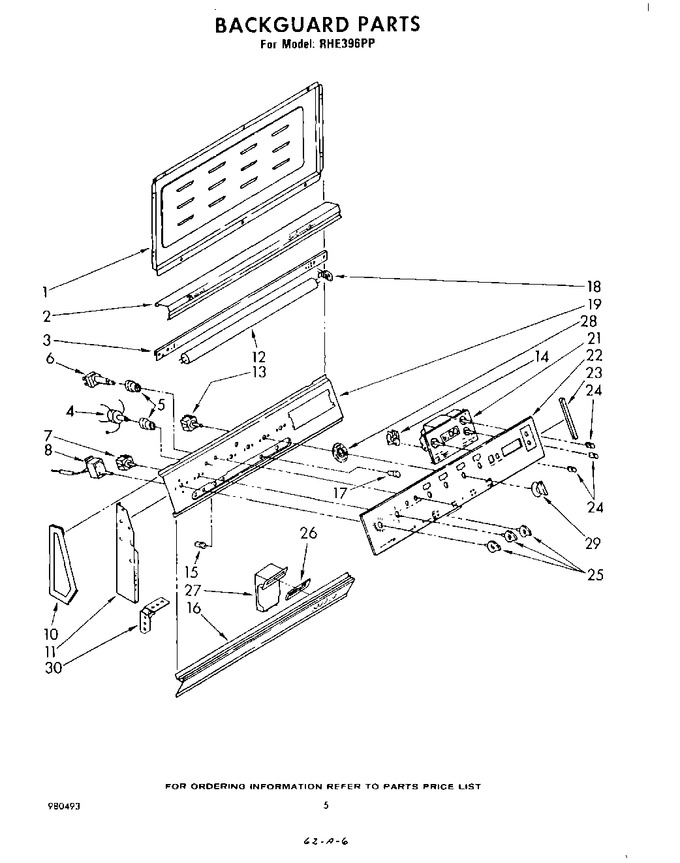

03 - Backguard


04 - Door And Drawer


05 - Surface Unit


06 - Surface Unit Rck 886 (261951)


07 - Grille Kit Rck 882 (261949)


08 - Griddle Rck 884 (261950) , Cutting


09 - Rotisserie Rck 890 (242808)


11 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	866234		Cover, Wiring		Appelez-nous	-
1	681151		Screw, 10-24 X 1/2		Appelez-nous	-
2	244604		Screw, 6-32 X 5/16		Appelez-nous	-
2	486146		Screw, 10-32 X 1/2				$ 12.83
2	868806		Shade, Lamp		Appelez-nous	-
3	865995		Channel, Light Mounting		Appelez-nous	-
3	681151		Screw, 10-24 X 1/2		Appelez-nous	-
4	866085		Switch, Fluorescent Light		Appelez-nous	-
4	98754		Nut, Hex (3/8-27)		Appelez-nous	-
5	866053		Bezel Switch (2)		Appelez-nous	-
6	866138		Switch, Oven Light		Appelez-nous	-
6	98754		Hex Nut, 3/8-27		Appelez-nous	-
7	868048		Switch, Oven Selector		Appelez-nous	-
7	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
8	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
8	868808		Thermostat, Oven		Appelez-nous	-
10	98788		Nut (4)		Appelez-nous	-
10	486146		Screw, 10-32 X 1/2				$ 12.83
10	865915		End Cap (l.h.)		Appelez-nous	-
10	865914		End Cap (r.h.)		Appelez-nous	-
11	868858		Support, Backguard (l.h.)		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2		Appelez-nous	-
11	868859		Support, Backguard (r.h.)		Appelez-nous	-
12	252670		Lamp, Fluorescent		Appelez-nous	-
13	486525		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
13	866012		Switch, Infinite (4)		Appelez-nous	-
14	308594		Motor, Timer		Appelez-nous	-
15	868290		Light, Pilot (oven)		Appelez-nous	-
15	834409		Light, Pilot (3) (clean, Lock & Surface Unit)		Appelez-nous	-
16	WP308685		Screw, 10-16 X 7/16 (2)   (Replaces: 487094)			Immediately	$ 7.08
16	865992		Base, Backguard		Appelez-nous	-
16	681151		Screw, 10-24 X 1/2		Appelez-nous	-
17	834956		Bumper (3)		Appelez-nous	-
18	866082		Lampholder (r.h.)		Appelez-nous	-
18	487428		Screw, 6-32 X 3/16		Appelez-nous	-
18	241425		Screw, 10-24 X 1/4 (3)		Appelez-nous	-
18	866081		Lampholder (l.h.)		Appelez-nous	-
21	868807		Timer, Complete (includes Illus. 14 & 24)		Appelez-nous	-
21	487836		Nut, Hex (10-32) (2)		Appelez-nous	-
22	868809		Panel, Glass		Appelez-nous	-
23	866086		Trim, Glass (2)		Appelez-nous	-
24	255853		Knob, Timer (3)		Appelez-nous	-
25	868810		Knob, Surface Units (4)		Appelez-nous	-
26	868877		Gasket, Duct		Appelez-nous	-
27	868430		Screw 10-24 X 1/2		Appelez-nous	-
27	866014		Duct, Oven Vent		Appelez-nous	-
28	868294		Dial, Surface Unit (4)		Appelez-nous	-
29	868431		Knob, Control (2) (oven Selector & Thermostat)		Appelez-nous	-
30	868128		Gusset, Backguard (2)		Appelez-nous	-
30	868430		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
