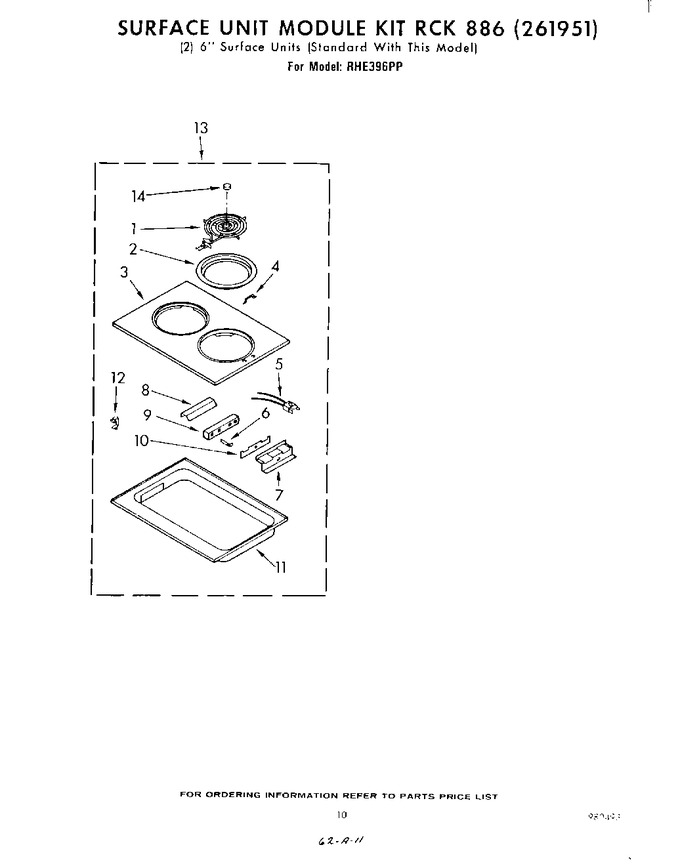

06 - Surface Unit Rck 886 (261951)


07 - Grille Kit Rck 882 (261949)


08 - Griddle Rck 884 (261950) , Cutting


09 - Rotisserie Rck 890 (242808)


11 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660532		Unit, Surface (6``) (2)   (Replaces: 868445)			Immediately	$ 45.10
2	868444		Bowl, Surface Unit (6``) (2)		Appelez-nous	-
3	868462		Cooktop, 6/6		Appelez-nous	-
3	486978		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
4	868450		Handle, Cooktop		Appelez-nous	-
5	330031		Receptacle & Wire Assembly   (Replaces: 868464)			Immediately	$ 17.93
6	868438		Terminal, Male (4)		Appelez-nous	-
7	866272		Pushnut, 1/8		Appelez-nous	-
7	868440		Bracket, Ground		Appelez-nous	-
8	868686		Shield, Wire		Appelez-nous	-
9	WP486754		Screw, 6-32 X 5/16 (5)   (Replaces: 9406386)				$ 7.21
9	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
9	868437		Receptacle, Male		Appelez-nous	-
10	868814		Insulator, Receptacle		Appelez-nous	-
11	868813		Pan, Surface Unit		Appelez-nous	-
12	868466		Clamp, Wire		Appelez-nous	-
13	261951		Kit, Surface Unit Module (6/6) (complete)		Appelez-nous	-
14	868522		Medallion		Appelez-nous	-
