SELECT A DIAGRAM

01 - Cook Top


02 - Oven


03 - Backguard

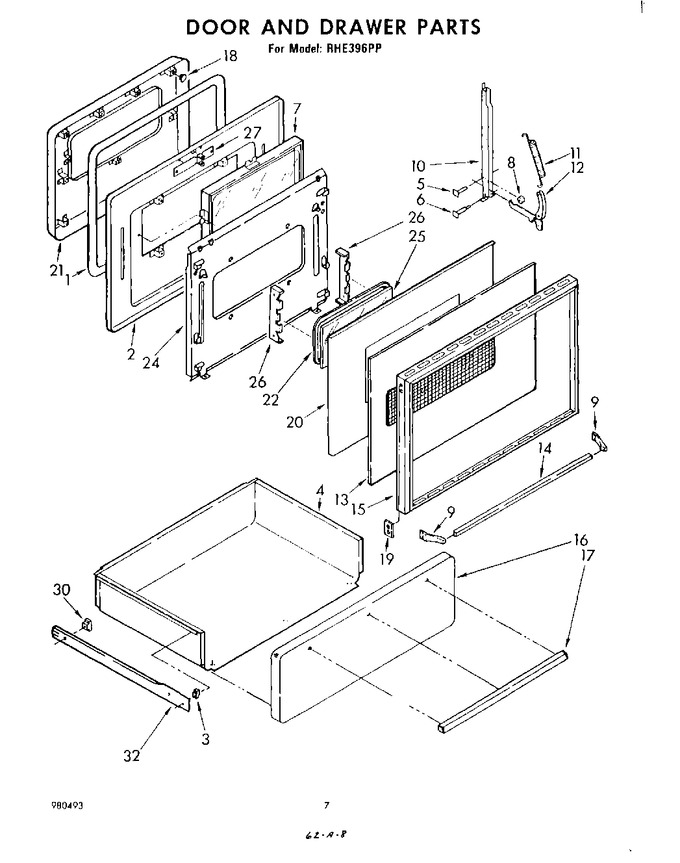

04 - Door And Drawer


05 - Surface Unit


06 - Surface Unit Rck 886 (261951)


07 - Grille Kit Rck 882 (261949)


08 - Griddle Rck 884 (261950) , Cutting


09 - Rotisserie Rck 890 (242808)


11 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868177		Seal, Oven Door		Appelez-nous	-
2	868938		Liner, Oven Door		Appelez-nous	-
3	834649		Screw, 10-24 X 7/8		Appelez-nous	-
3	868127		Guide, Drawer (front)		Appelez-nous	-
4	868151		Drawer Assembly		Appelez-nous	-
5	46363		Nut, Speed		Appelez-nous	-
5	241423		Rivet		Appelez-nous	-
6	595326		Nut, Speed		Appelez-nous	-
6	241334		Pin, Hinge (2)		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2		Appelez-nous	-
7	241421		Washer		Appelez-nous	-
7	868797		Window		Appelez-nous	-
8	834471		Roller, Stop		Appelez-nous	-
9	866047		Stanchion, Handle (2)		Appelez-nous	-
10	865972		Channel, Assembly (2)		Appelez-nous	-
10	241422		Washer (2)		Appelez-nous	-
10	595119		Screw, 10-24 X 5/8		Appelez-nous	-
10	247326		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
11	241312		Spring (2)		Appelez-nous	-
12	865640		Arm Assembly (2)		Appelez-nous	-
13	487865		Washer (2)		Appelez-nous	-
13	868199		Glass, Outer (black)		Appelez-nous	-
14	271482		Nut (4)		Appelez-nous	-
14	866046		Handle, Door (includes Illus. 9)		Appelez-nous	-
14	866155		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
15	868494		Frame, Oven Door		Appelez-nous	-
15	595119		Screw, 10-24 X 5/8		Appelez-nous	-
16	246625		Screw, 10-24 X 3/8		Appelez-nous	-
16	868811		Panel, Drawer (black)		Appelez-nous	-
16	441256		Nut, 10-24 (2)		Appelez-nous	-
17	868812		Handle, Drawer		Appelez-nous	-
17	868585		Screw, 10-24 X 3/8		Appelez-nous	-
18	142001		Plug Button (2)		Appelez-nous	-
19	866259		Trim, Frame (2)		Appelez-nous	-
19	271482		Hex Nut, 6-32 (4)		Appelez-nous	-
19	866155		Screw, 6-32 X 3/8		Appelez-nous	-
20	868200		Panel, Heat Reflector		Appelez-nous	-
21	866265		Screw, 10-24 X 1/2		Appelez-nous	-
21	241421		Washer, Asbestos		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2		Appelez-nous	-
21	W10080180		Nut, Hex (keps) (10-24)   (Replaces: 487351)				$ 12.74
21	868886		Baffle		Appelez-nous	-
22	868796		``j`` Moulding		Appelez-nous	-
24	868940		Panel, Airwash		Appelez-nous	-
24	681151		Screw, 10-24 X 1/2		Appelez-nous	-
25	868502		Glass, Inner		Appelez-nous	-
26	868503		Retainer, Glass		Appelez-nous	-
26	681151		Screw, 10-24 X 1/2		Appelez-nous	-
27	W10080180		Hex Nut (10-24)   (Replaces: 487351)				$ 12.74
27	834703		Strike Assy (door)		Appelez-nous	-
27	241421		Washer		Appelez-nous	-
27	866265		Screw, 10-24 X 1/2		Appelez-nous	-
30	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
30	868152		Guide, Drawer (back)		Appelez-nous	-
32	868126		Rail, Drawer (l.h.)		Appelez-nous	-
32	681151		Rail, Drawer (screw, 10-24 X 1/2)		Appelez-nous	-
32	868125		Rail, Drawer (r.h.)		Appelez-nous	-
