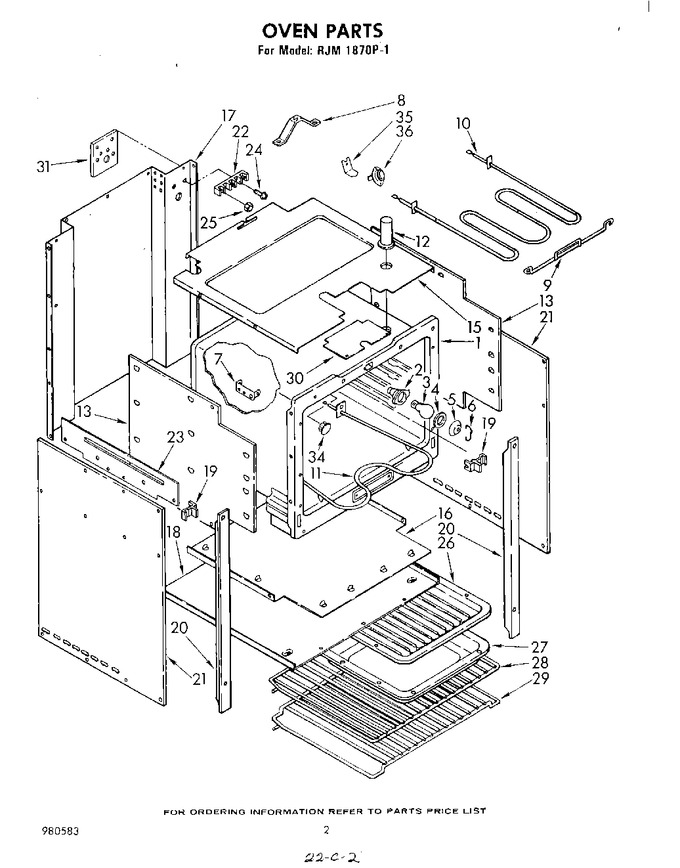

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	868510		Oven Body		Appelez-nous	-
2	866133		Socket, Light		Appelez-nous	-
2	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
2	241422		Washer, Asbestos (2)		Appelez-nous	-
3	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 17.51
4	241609		Gasket, Cover		Appelez-nous	-
5	241592		Cover, Light		Appelez-nous	-
6	866134		Retainer, Cover		Appelez-nous	-
7	865959		Bracket, Thermostat Bulb		Appelez-nous	-
7	486146		Screw, 10-32 X 1/2				$ 12.83
8	868798		Spacer		Appelez-nous	-
8	681151		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
8	486608		Washer (1)		Appelez-nous	-
9	486146		Screw, 10-32 X 1/2 (2)				$ 12.83
9	866429		Hanger, Broil Unit		Appelez-nous	-
10	486146		Screw, 10-32 X 1/2 (2)				$ 12.83
10	865638		Unit, Broil		Appelez-nous	-
11	EB770		Unit, Bake (alternate)   (Replaces: 866375)			Immediately	$ 44.96
11	834649		Unit, Bake (screw, 10-32 X 7/8 (2))		Appelez-nous	-
11	WP866375		Unit, Bake (alternate)   (Replaces: 868969)				$ 120.84
12	241428		Vent Tube (screw, 10-24 X 3/8 (2))		Appelez-nous	-
12	868973		Vent Tube (alternate)		Appelez-nous	-
12	865939		Vent Tube (alternate)		Appelez-nous	-
13	866376		Retainer, Insulation (2)		Appelez-nous	-
15	868511		Retainer, Insulation (top)		Appelez-nous	-
16	866379		Retainer, Insulation Bottom		Appelez-nous	-
16	681151		Screw, 10-24 X 1/2 (11)		Appelez-nous	-
17	868869		Casing, Back		Appelez-nous	-
17	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
18	868095		Casing, Bottom		Appelez-nous	-
18	681151		Screw, 10-24 X 1/2 (16)		Appelez-nous	-
19	866382		Spacer, Trim		Appelez-nous	-
20	866383		Trim, Oven (2)		Appelez-nous	-
21	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
21	868512		Casing, Side (2)		Appelez-nous	-
21	681151		Screw, 10-24 X 1/2 (25)		Appelez-nous	-
22	WP8203546		Terminal Block, Main   (Replaces: 241212)			Immediately	$ 27.12
22	834649		Screw 10-32 X 7/8 (2)		Appelez-nous	-
23	868872		Reinforcement, Side Panel		Appelez-nous	-
24	680363		Screw, Grounding (10-24 X 1/2)		Appelez-nous	-
25	487836		Nut, Hex (10-32) (3)		Appelez-nous	-
26	4396923		Grille, Broiler Pan   (Replaces: 868504)			Immediately	$ 54.64
27	868505		Pan, Broiler		Appelez-nous	-
28	834731		Rack, Oven		Appelez-nous	-
29	834732		Rack, Oven (offset)		Appelez-nous	-
30	868524		Cover, Access		Appelez-nous	-
30	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
31	868868		Plate, Conduit		Appelez-nous	-
31	834649		Screw, 10-24 X 7/8		Appelez-nous	-
34	142017		Plug, Button (1)		Appelez-nous	-
35	681151		Screw, 10-24 X 1/2		Appelez-nous	-
35	868605		Bracket, Switch		Appelez-nous	-
36	868606		Switch, Thermal		Appelez-nous	-
36	486608		Washer		Appelez-nous	-
