SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner


05 - Shelf


06 - Breaker And Partition


07 - Unit , Not Illustrated And Optional


08 - Section


09 - Section


10 - Section

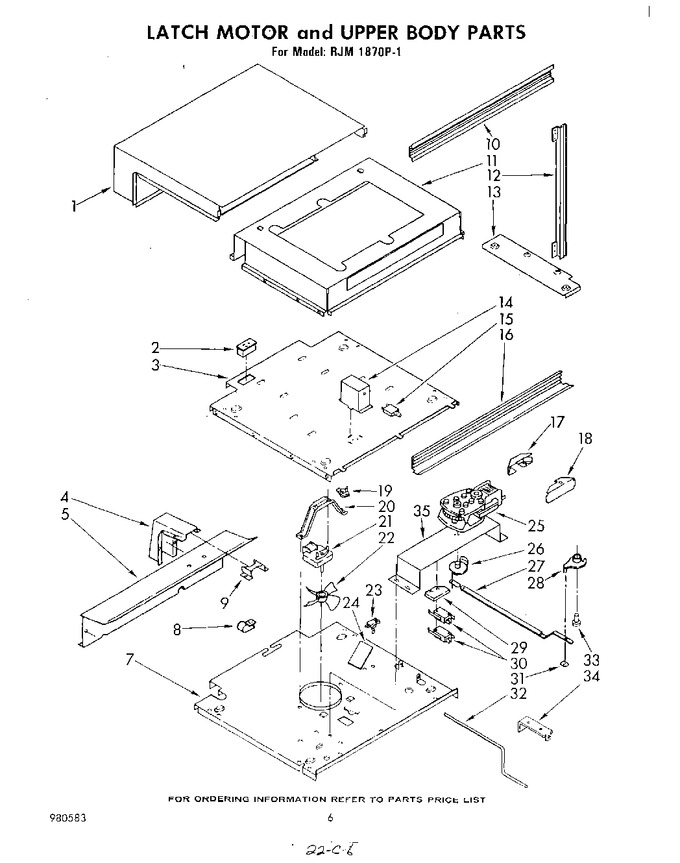

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	866454		Tape, Foam		Appelez-nous	-
1	868537		Duct, Top		Appelez-nous	-
2	866344		Outlet, Grounded		Appelez-nous	-
3	868532		Top Casing		Appelez-nous	-
3	681151		Screw, 10-24 X 1/2 (15)		Appelez-nous	-
4	681151		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
4	866412		Duct, Oven Vent		Appelez-nous	-
5	866411		Housing, Control		Appelez-nous	-
5	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
7	868944		Casing, Fan		Appelez-nous	-
7	834852		Screw, 6-20 X 1-1/4 (2)		Appelez-nous	-
7	681151		Screw, 10-24 X 1/2 (13)		Appelez-nous	-
8	273225		Screw, 8-32 X 5/16		Appelez-nous	-
8	865797		Clamp		Appelez-nous	-
9	868222		Extension, Vent		Appelez-nous	-
9	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
10	868539		Trim, Top Vent		Appelez-nous	-
11	681151		Screw, 10-24 X 1/2		Appelez-nous	-
11	868534		Base, Support		Appelez-nous	-
12	868549		Screw, 6-32 X 5/16 (10)		Appelez-nous	-
12	595119		Screw, 10-24 X 5/8 (4)		Appelez-nous	-
12	868540		Trim, R.h. (vertical)		Appelez-nous	-
12	868541		Trim, L.h. (vertical)		Appelez-nous	-
13	868535		Rail, Mounting R.h.		Appelez-nous	-
13	868548		Screw, 5/16-18 X 1/2		Appelez-nous	-
13	868536		Rail, Mounting L.h.		Appelez-nous	-
14	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
14	868533		Box, Circuit Breaker		Appelez-nous	-
15	866361		Circuit Breaker (20 Amp)		Appelez-nous	-
15	241646		Plate, Reset		Appelez-nous	-
15	98754		Hex Nut, 3/18-27		Appelez-nous	-
16	868609		Trim, Bottom Vent		Appelez-nous	-
17	256158		Pushnut, 1/4		Appelez-nous	-
17	868513		Cover, Latch Housing		Appelez-nous	-
18	868281		Housing, Latch		Appelez-nous	-
19	486608		Washer, Flat		Appelez-nous	-
19	279080		Thermal, Protector   (Replaces: 866396)				$ 94.44
19	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
20	681151		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
20	866393		Bracket, Fan Motor		Appelez-nous	-
21	866390		Motor, Fan (alternate)		Appelez-nous	-
21	271482		Motor, Fan (nut, 6-32)		Appelez-nous	-
21	877516		Motor, Fan (alternate)		Appelez-nous	-
22	877517		Fan Blade (alternate)		Appelez-nous	-
22	866392		Fan Blade (clip, Retainer)		Appelez-nous	-
22	866391		Fan Blade (alternate)		Appelez-nous	-
23	868527		Switch, Limit		Appelez-nous	-
23	834852		Screw, 6-20 X 1-1/8		Appelez-nous	-
24	868528		Insulator, Switch		Appelez-nous	-
25	864849		Motor, Door Latch (alternate)		Appelez-nous	-
25	273225		Motor, Door Latch (screw, 8-32 X 5/16 (4))		Appelez-nous	-
25	868983		Motor, Door Latch (alternate)		Appelez-nous	-
26	455105		Cam, Door Latch (pin, Spring)		Appelez-nous	-
26	868984		Cam, Door Latch (alternate)		Appelez-nous	-
26	834483		Cam, Door Latch (alternate)		Appelez-nous	-
27	241547		Pushnut, 3/16``		Appelez-nous	-
27	868523		Tie Bar		Appelez-nous	-
28	834484		Latch, Oven Door		Appelez-nous	-
28	241422		Washer (2)		Appelez-nous	-
28	868430		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
29	834905		Insulator, Switch (2)		Appelez-nous	-
30	868986		Switch Limit, Lower (alternate)		Appelez-nous	-
30	834906		Switch Limit (lower) (alternate)		Appelez-nous	-
30	868985		Switch Limit, Lower (alternate Switch Limit, Upper)		Appelez-nous	-
30	868280		Switch Limit, Lower (alternate)		Appelez-nous	-
30	868987		Switch Limit, Lower (alternate)		Appelez-nous	-
30	868988		Switch Limit, Lower (alternate)		Appelez-nous	-
30	834903		Switch, Limit (lower) (screw, 4-40 X 1-1/4 (4))		Appelez-nous	-
30	681151		Switch, Limit (lower) (screw, 10-24 X 1/2 (2))		Appelez-nous	-
31	241547		Pushnut (3/16``) (2)		Appelez-nous	-
32	868526		Rod, Oven Light Switch		Appelez-nous	-
33	256158		Pushnut		Appelez-nous	-
33	241564		Axle, Latch		Appelez-nous	-
34	868799		Bracket		Appelez-nous	-
35	877524		Support, Motor		Appelez-nous	-
