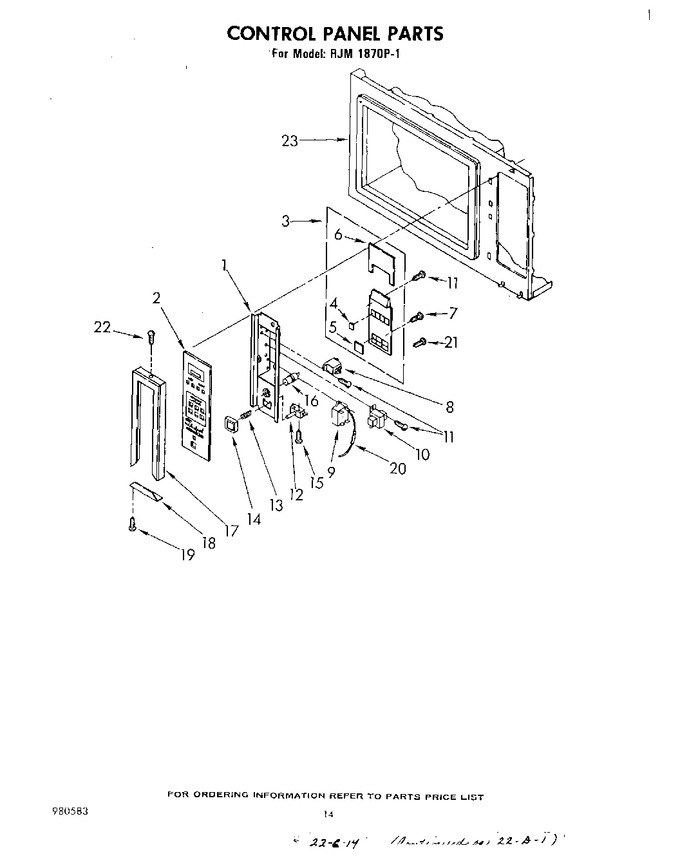

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310310		Bracket, Control		Appelez-nous	-
2	311779		Panel, Control		Appelez-nous	-
3	329427		Microcomputer		Appelez-nous	-
4	309585		Button, Small (4)		Appelez-nous	-
5	309584		Button, Large (4)		Appelez-nous	-
6	310000		Barrier		Appelez-nous	-
7	310378		Screw, 6-18 X 3/8 (6)		Appelez-nous	-
8	310370		Relay, Power (alternate)		Appelez-nous	-
8	310372		Relay Power (alternate)		Appelez-nous	-
9	307634		Relay, Shunt (alternate)		Appelez-nous	-
9	311508		Relay, Shunt (alternate)		Appelez-nous	-
10	309622		Transformer		Appelez-nous	-
11	WP486754		Screw, 6-32 X 1/4 (8)   (Replaces: 246119)				$ 7.21
12	328611		Switch, Start		Appelez-nous	-
13	310200		Spring, Push-to-start Switch		Appelez-nous	-
14	310141		Button, Push To Start		Appelez-nous	-
15	98106		Screw, Switch Mounting (2)		Appelez-nous	-
16	256936		Light, Indicator		Appelez-nous	-
17	310166		Frame, Control Panel		Appelez-nous	-
18	310167		End Cap, Control Panel		Appelez-nous	-
19	309170		Screw, 8-18bt X .88 (2)		Appelez-nous	-
20	328023		Resistor, 3 Ohm		Appelez-nous	-
21	246135		Screw, Ground (8d X 5/16)		Appelez-nous	-
22	WP488627		Screw, 8a X 1/2 (3)   (Replaces: 338156)				$ 7.30
