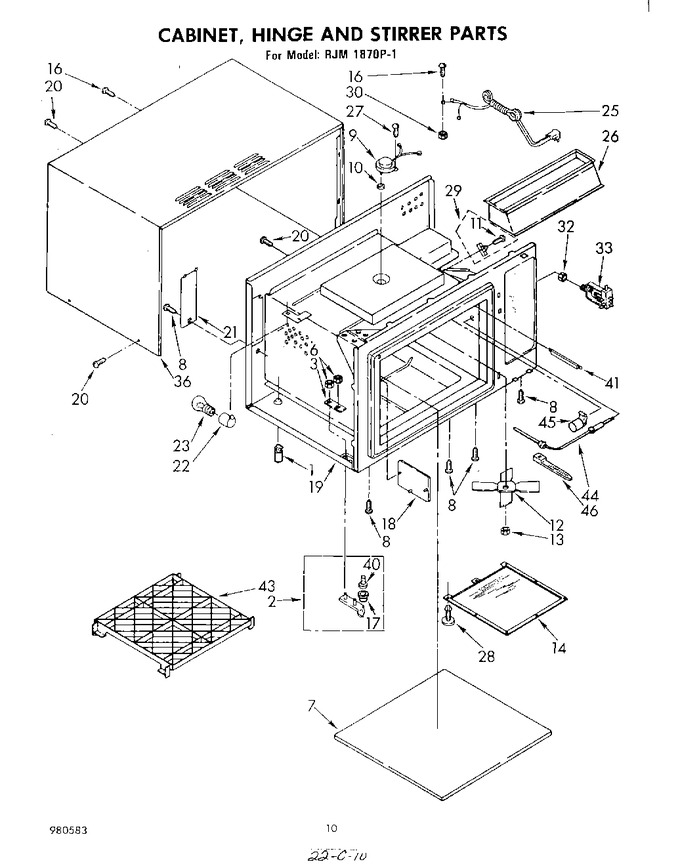

RJM1870P1 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	307540	Foot, Mounting	Appelez-nous	-
2	328126	Hinge, Door (top)	Appelez-nous	-
2	328127	Hinge, Door (bottom)	Appelez-nous	-
3	307527	Plate, Hinge	Appelez-nous	-
6	WP487939	Xnut, Hex (1/4-20) (4) (Replaces: 311721)			$ 7.76
7	311058	Base, Ceramic (alternate (install W/ Silastic No.482338))	Appelez-nous	-
7	309145	Base, Ceramic (alternate)	Appelez-nous	-
8	254217	Screw, 10a X 3/8	Appelez-nous	-
9	311245	Motor, Stirrer (washer)	Appelez-nous	-
9	310950	Motor, Stirrer (alternate)	Appelez-nous	-
9	311515	Motor, Stirrer (alternate)	Appelez-nous	-
10	309768	Nut	Appelez-nous	-
11	246131	Screw, 6a X 3/8	Appelez-nous	-
12	309976	Stirrer 4-blade	Appelez-nous	-
13	307555	Nut, Hex (1/4-20)	Appelez-nous	-
14	309441	Cover, Stirrer	Appelez-nous	-
16	258857	Screw, 10-32 X 1/2	Appelez-nous	-
17	309628	Bushing	Appelez-nous	-
18	307516	Cover, Light	Appelez-nous	-
20	307748	Screw, 10a X 1/2	Appelez-nous	-
21	307512	Cover, Lamp	Appelez-nous	-
22	307519	Socket, Snap-in	Appelez-nous	-
23	8009	Bulb, Oven Light (Replaces: 311255)		Immediately	$ 17.51
25	310900	Cord, Power	Appelez-nous	-
26	309444	Baffle, Air Exhaust	Appelez-nous	-
27	WP486754	Screw, 6-32 X 1/4 (Replaces: 246119)			$ 7.21
28	310423	Fastener, Stirrer Cover (8)	Appelez-nous	-
29	309279	Fuse, Thermal	Appelez-nous	-
30	309487	Nut, Hex (10-32)	Appelez-nous	-
32	311137	Nut, Probe	Appelez-nous	-
33	309654	Jack, Probe	Appelez-nous	-
36	7509	Wrapper, Cabinet (Replaces: 307509)			$ 26.86
40	308785	Pin, Hinge	Appelez-nous	-
41	309437	Cover, Rivet	Appelez-nous	-
43	310878	Rack, Oven	Appelez-nous	-
44	308512	Probe & Plug	Appelez-nous	-
45	311286	Shelf, Support	Appelez-nous	-
46	242832	Wire (14 Ga. 200 C Yellow)	Appelez-nous	-
46	350956	Enamel, Almond (13 Oz. Spray Can)			$ 48.61
46	WP72107	Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107)			$ 16.93
46	242824	Wire (14 Ga. 150 C Orange)	Appelez-nous	-
46	242829	Wire (12 Ga. 150 C Red)	Appelez-nous	-
46	242825	Wire (14 Ga. 150 C Red)	Appelez-nous	-
46	242831	Wire (14 Ga. 200 C Red)			$ 342.23
46	242826	Wire (14 Ga. 150 C White)	Appelez-nous	-
46	242827	Wire (14 Ga. 150 C Yellow)	Appelez-nous	-
46	242820	Wire (14 Ga. 150 C Black)	Appelez-nous	-
46	WPW10339879	Cable, Tie (1) (Replaces: 309330)			$ 7.47
46	311307	Tech Sheet (service Information)	Appelez-nous	-
46	310848	Cookbook (microwave)	Appelez-nous	-
46	307843	Instructions, Installation	Appelez-nous	-
46	868924	Guide, Use & Care	Appelez-nous	-
46	310929	Booklet, Recipe (oven Rack)	Appelez-nous	-
46	310930	Instructions, Use & Care (oven Rack)	Appelez-nous	-
46	868547	Instructions, Installation	Appelez-nous	-
46	308500	Book, Cooking Guide	Appelez-nous	-
46	980583	List, Repair Parts	Appelez-nous	-
46	261819	Touch-up Citrine White (microwave) (1/2 Oz.)	Appelez-nous	-
46	254323	Touch-up Oven (1/4 Pt. Can)	Appelez-nous	-
46	978883	Enamel, Almond (1 Qt. Uncut)	Appelez-nous	-
46	799351	Blend, Thinner (1 Gal.)	Appelez-nous	-
46	591014	Adhesive Loctite (1/3 Oz.)	Appelez-nous	-
46	WP482338	Sealer, Silastic (3 Oz.) (Replaces: 482338)		Immediately	$ 73.65
46	WPW10208653	Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132)		Immediately	$ 54.98
46	WPW10208653	Insulation, Moisture Barrier (Replaces: 866187)		Immediately	$ 54.98
46	834469	Insulation, Oven Wrapper	Appelez-nous	-
46	834470	Insulation, Oven Back	Appelez-nous	-
46	WPW10208653	Insulation, Door (Replaces: 241531)		Immediately	$ 54.98
46	241430	Foil, Aluminum Oven (18`` X 25`)			$ 20.65
46	242828	Wire (12 Ga. 150 C Black)	Appelez-nous	-
46	242821	Wire (14 Ga. 150 C Blue)	Appelez-nous	-
46	242822	Wire (14 Ga. 150 C Brown)	Appelez-nous	-
46	242830	Wire (14 Ga. 200 C Brown)	Appelez-nous	-
46	242823	Wire (14 Ga. 150 C Green)	Appelez-nous	-
