Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 877712 Panel, Control Appelez-nous -
2 868820 Rail, Control Panel (bottom) Appelez-nous -
2 868819 Rail, Control Panel (top) Appelez-nous -
4 868851 End Cap R.h. Appelez-nous -
4 W11693756 Screw, 8-18 X 1/2 (4)   (Replaces: 877752) In-Stock Immediately $ 13.28

4 868852 End Cap L.h. Appelez-nous -
5 868823 Bracket, Control Panel (upper) Appelez-nous -
5 595135 Bracket, Control Panel (screw, 8-32 X 3/8 (2)) Appelez-nous -
5 868824 Bracket, Control Panel (lower) Appelez-nous -
7 W11693756 Screw, 8-18 X 1/2 (4)   (Replaces: 877752) In-Stock Immediately $ 13.28

7 877699 Washer, Flat (4) Appelez-nous -
7 877698 Deflector, Heat Appelez-nous -
8 877900 Light, Indicator (lock, Oven) Appelez-nous -
8 877865 Light, Indicator (125v) (right Module, Left Module, Oven Clean) Appelez-nous -
10 868934 Lens, Indicator Light (5) Appelez-nous -
14 486525 Screw, 8-32 X 3/16 (8) Appelez-nous -
14 W10900107 Switch, Infinite (4)   (Replaces: 877713) In-Stock Immediately $ 51.87

15 877527 Thermostat Appelez-nous -
17 486525 Screw, 8-32 X 3/16 (4) Appelez-nous -
17 868827 Bracket, Thermostat Mounting Appelez-nous -
18 486525 Screw, 8-32 X 3/16 (2) Appelez-nous -
18 877901 Switch, Oven Selector Appelez-nous -
19 834764 Bezel, Clock Appelez-nous -
20 877526 Timer, Range (includes Illus. 21 & 22) Appelez-nous -
21 866403 Motor, Timer Appelez-nous -
22 241383 Knob, Timer (3) Appelez-nous -
23 868843 Glass, Clock Appelez-nous -
24 866148 Switch, Oven Light Appelez-nous -
24 98754 Nut, Hex Flat 3/8-27 Appelez-nous -
24 241266 Nut, Knurled 3/8-27 Appelez-nous -
25 877924 Control Knob (4) (surface Unit) Appelez-nous -
27 868997 Knob, Thermostat Appelez-nous -
28 868998 Knob, Oven Selector Appelez-nous -

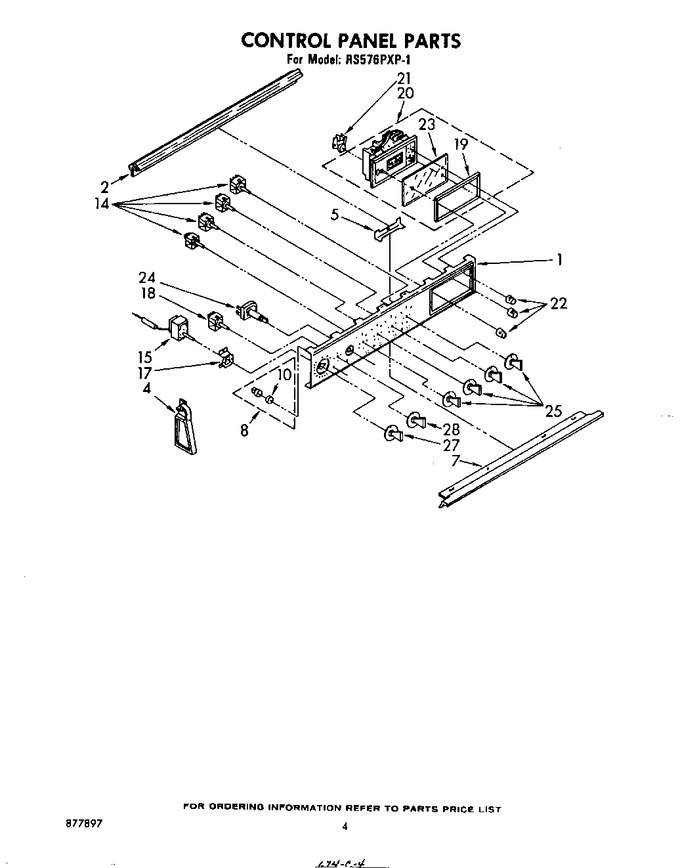

    View Diagram in Separate Window     Print Icon   Print Part List
