Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 865961 Bracket, Door Latch Switch Appelez-nous -
2 681151 Screw, 10-24 X 1/2 Appelez-nous -
4 WP8283288 Switch, Door Latch   (Replaces: 865677) In-Stock Immediately $ 104.24

5 877523 Push Rod, Switch Appelez-nous -
7 877562 Rod End, Switch Appelez-nous -
8 868982 Support, Latch Motor Appelez-nous -
8 681151 Screw, 10-24 X 1/2 Appelez-nous -
9 834849 Motor, Door Latch (alternate) Appelez-nous -
9 868983 Motor, Door Latch (alternate) Appelez-nous -
9 877918 Motor, Door Latch (alternate) Appelez-nous -
9 877619 Motor, Door Latch (alternate) Appelez-nous -
9 273225 Motor, Door Latch (screw, 8-32 X 5/16 (2)) Appelez-nous -
10 877629 Cam, Door Latch (alternate) Appelez-nous -
10 455105 Cam, Door Latch (pin, Spring) Appelez-nous -
10 834483 Cam, Door Latch (alternate) Appelez-nous -
11 834905 Insulator, Limit Switch (2) Appelez-nous -
14 877877 Switch Limit (lower) (alternate) Appelez-nous -
14 834906 Switch Limit (lower) (alternate) Appelez-nous -
14 877800 Switch Limit Lower (alternate) Appelez-nous -
15 877801 Switch Limit (upper) (alternate) Appelez-nous -
15 877878 Switch Limit (upper) (alternate) Appelez-nous -
15 868280 Switch Limit (upper) (alternate) Appelez-nous -
15 834903 Switch Limit (upper) (screw, 4-40 X 1-1/4 (2)) Appelez-nous -
17 241422 Washer (2) Appelez-nous -
17 877614 Housing, Latch Appelez-nous -
17 868430 Screw, 10-24 X 1/2 (2) Appelez-nous -
18 877884 Axle, Latch Appelez-nous -
19 241547 Latch, Door (pushnut, 3/16) Appelez-nous -
19 834484 Latch, Door (alternate) Appelez-nous -
19 877628 Latch, Door (alternate) Appelez-nous -
20 868487 Tie Bar Appelez-nous -
20 241547 Pushnut (3/16``) (2) Appelez-nous -
21 681151 Screw, 10-24 X 1/2 (9) Appelez-nous -
21 877530 Panel, Subtop Appelez-nous -
23 681151 Screw, 10-24 X 1/2 (3) Appelez-nous -
23 WP486579 Screw, 8-32 X 3/16 (10)   (Replaces: 866466) Special Order $ 7.10

23 868833 Shield, Wire Appelez-nous -
24 868420 Receptacle, Porcelain (2) Appelez-nous -
26 865959 Screw, 10-24 X 1/4 (4) Appelez-nous -
26 868421 Clip, Receptacle Appelez-nous -
27 868422 Terminal Female Appelez-nous -
30 877714 Frame, Cooktop Appelez-nous -
31 866454 Tape, Foam (74``) Appelez-nous -
33 868430 Screw, 10-24 X 1/2 (8) Appelez-nous -
33 868959 Screw, 10-24 X 1/4 (4) Appelez-nous -
33 877534 Cooktop, Modular Appelez-nous -
34 877765 Gasket, Vent Tube Appelez-nous -
36 877733 Clip, Retainer (2) Appelez-nous -
36 877732 Cover, Vent Appelez-nous -
38 877766 Deflector, Oven Vent Appelez-nous -

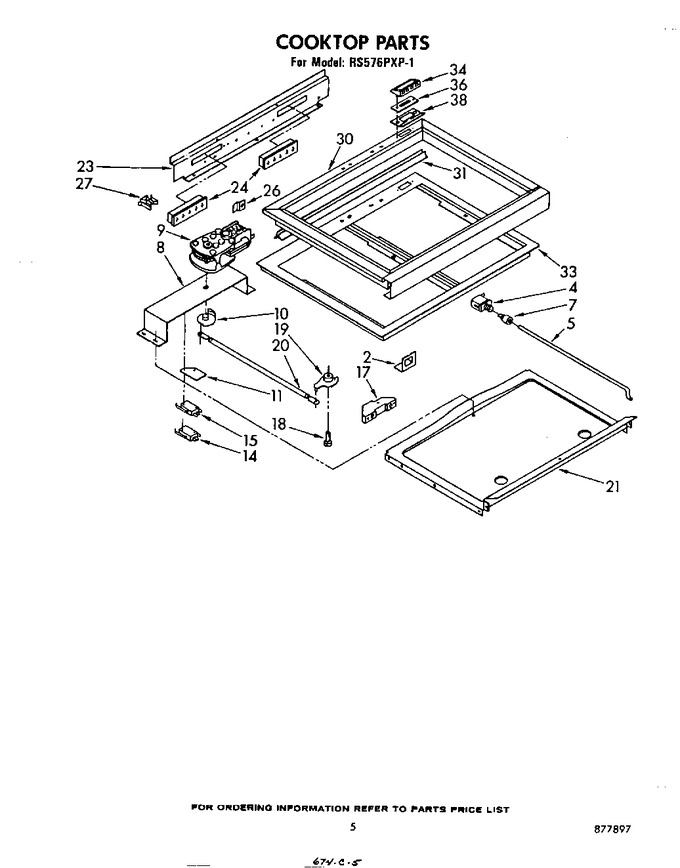

    View Diagram in Separate Window     Print Icon   Print Part List
