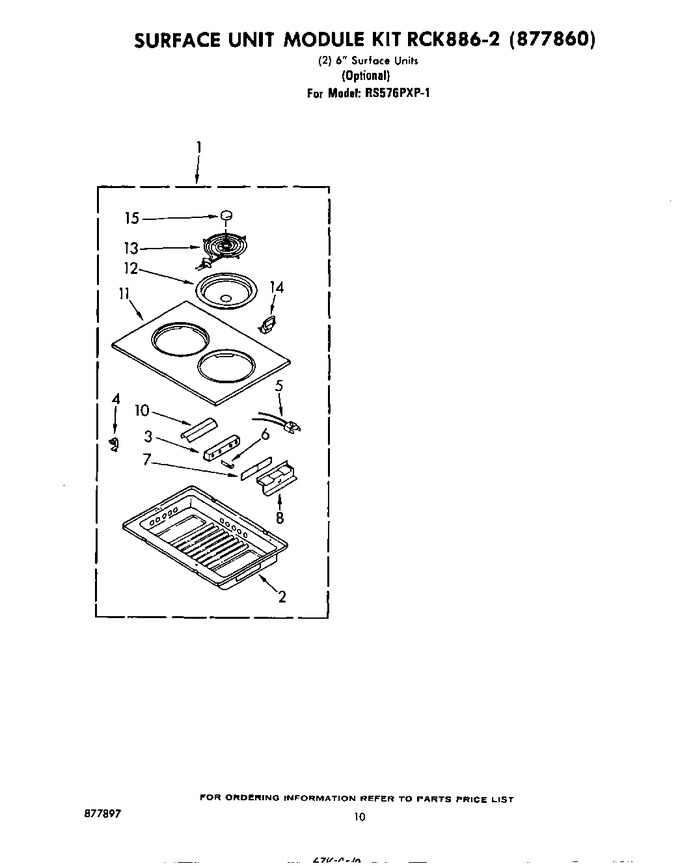

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242898		Surface Unit, Modular Complete		Appelez-nous	-
2	877544		Pan, Surface Unit Modular		Appelez-nous	-
3	868437		Receptacle, Porcelain		Appelez-nous	-
4	868466		Clamp		Appelez-nous	-
5	330031		Receptacle & Wire Assembly   (Replaces: 877610)			Immediately	$ 17.93
6	868438		Terminal, Male (4)		Appelez-nous	-
6	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
7	868814		Insulator, Receptacle		Appelez-nous	-
8	WP486754		Screw, 6-32 X 5/16 (3)   (Replaces: 680406)				$ 7.21
8	868440		Bracket, Ground		Appelez-nous	-
8	866272		Pushnut, 1/8		Appelez-nous	-
10	868686		Shield, Wire		Appelez-nous	-
11	868462		Cooktop, Surface Unit (1)		Appelez-nous	-
11	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
11	868382		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
12	WPW10196406		Pan, Reflector 6`` (2) (alternate)   (Replaces: 877545)			Immediately	$ 12.42
12	WPW10196406		Pan, Reflector 6`` (2) (alternate)   (Replaces: 834753)			Immediately	$ 12.42
13	WP660532		Unit, Surface 6`` (2) (alternate)   (Replaces: 866446)			Immediately	$ 45.10
13	WP660532		Unit, Surface 6`` (2) (alternate)   (Replaces: 868445)			Immediately	$ 45.10
14	868450		Handle, Cooktop		Appelez-nous	-
15	868522		Medallion		Appelez-nous	-
