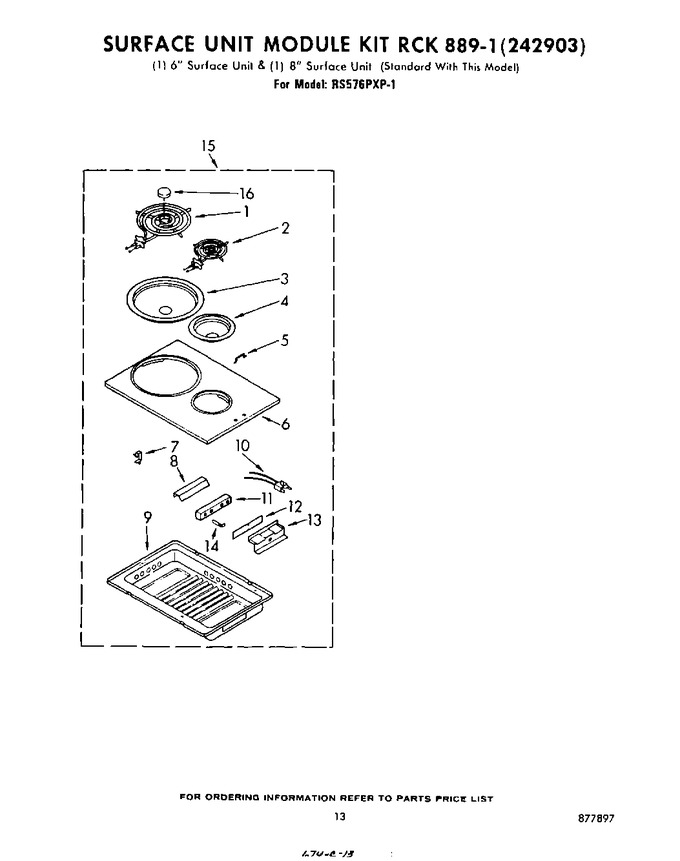

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660533		Unit, Surface (8``) (alternate)   (Replaces: 868449)			Immediately	$ 40.21
1	WP660533		Unit, Surface (8``) (alternate)   (Replaces: 866447)			Immediately	$ 40.21
2	WP660532		Unit, Surface (6``) (alternate)   (Replaces: 868445)			Immediately	$ 45.10
2	WP660532		Unit, Surface (6``) (alternate)   (Replaces: 866446)			Immediately	$ 45.10
3	W10196405RW		Pan, Surface Unit (8``) (alternate)   (Replaces: 834754)			Immediately	$ 19.64
3	W10196405RW		Pan, Surface Unit (8``) (alternate)   (Replaces: 877546)			Immediately	$ 19.64
4	WPW10196406		Pan, Surface Unit (6``) (alternate)   (Replaces: 877545)			Immediately	$ 12.42
4	WPW10196406		Pan, Surface Unit (6``) (alternate)   (Replaces: 834753)			Immediately	$ 12.42
5	868866		Handle, Cooktop		Appelez-nous	-
5	WP486754		Screw, 6-32 X 3/16   (Replaces: 680406)				$ 7.21
6	868382		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
6	868865		Cooktop (6``/8``)		Appelez-nous	-
6	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
7	868466		Clamp, Wire (2)		Appelez-nous	-
8	877912		Shield, Wire		Appelez-nous	-
9	877544		Pan, Surface Unit		Appelez-nous	-
10	330031		Receptacle & Wire Assembly   (Replaces: 877618)			Immediately	$ 17.93
11	WP486754		Screw, 6-32 X 5/16 (2)   (Replaces: 680406)				$ 7.21
11	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
11	868437		Receptacle, Male		Appelez-nous	-
12	868814		Insulator, Receptacle		Appelez-nous	-
13	WP486754		Screw, 6-32 X 3/16 (3)   (Replaces: 680406)				$ 7.21
13	866272		Pushnut, 1/8		Appelez-nous	-
13	868440		Bracket, Ground		Appelez-nous	-
14	868438		Terminal, Male (4)		Appelez-nous	-
15	242903		Kit, Surface Unit Module (6``/8``)		Appelez-nous	-
16	877897		List, Parts		Appelez-nous	-
16	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
16	261748		Touch-up, Oven (1 Oz.)		Appelez-nous	-
16	261582		Grease		Appelez-nous	-
16	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 54.98
16	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 54.98
16	WPW10208653		Insulation, Moisture Barrier   (Replaces: 866187)			Immediately	$ 54.98
16	WPW10208653		Insulation, Door   (Replaces: 241531)			Immediately	$ 54.98
16	834470		Insulation, Oven Back		Appelez-nous	-
16	834469		Insulation, Oven Wrapper		Appelez-nous	-
16	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
16	877902		Tech Sheet		Appelez-nous	-
16	877750		Installation Instructions		Appelez-nous	-
16	877913		Guide, Use & Care		Appelez-nous	-
16	308500		Book, Cooking Guide		Appelez-nous	-
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	868522		Medallion (for 8`` & 6`` Surface Units)		Appelez-nous	-
16	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
16	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
16	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
16	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
16	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
16	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
16	261888		New Avocado		Appelez-nous	-
16	261886		Coffee		Appelez-nous	-
16	261890		Harvest Gold		Appelez-nous	-
16	285006		Paint, Spray 13 Oz. (black)				$ 53.90
16	350942		Primer (white)   (Replaces: 206922)				$ 84.73
16	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
16	978883		Almond (uncut)		Appelez-nous	-
16	261889		New Avocado (uncut)		Appelez-nous	-
16	261887		Coffee (uncut)		Appelez-nous	-
16	261891		Harvest Gold (uncut)		Appelez-nous	-
16	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
