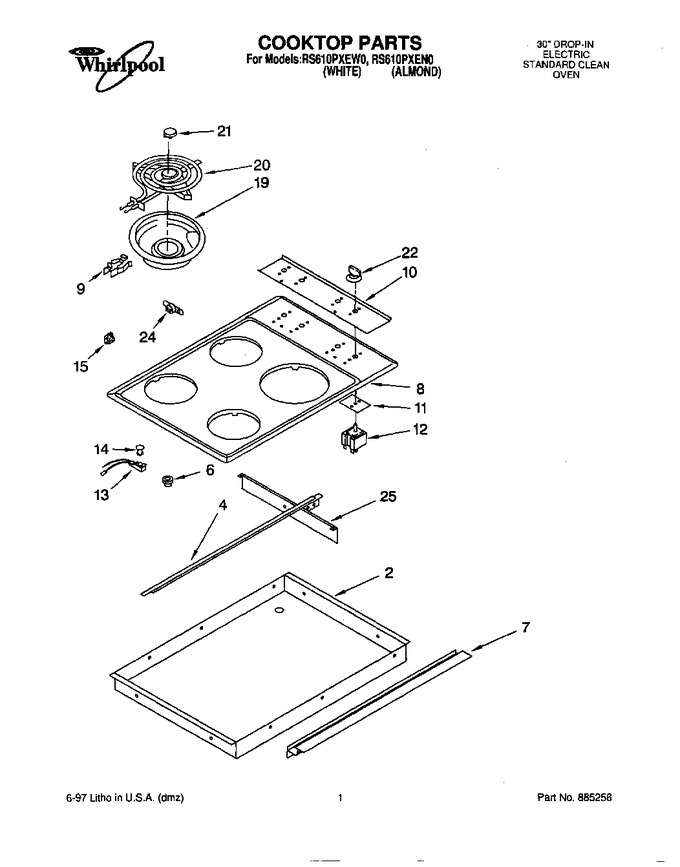

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel, Literature


03 - Oven


04 - Oven Door


05 - Internal Oven


06 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4450883		Burner Box		Appelez-nous	-
4	4159456		Screw		Appelez-nous	-
4	4454588		Bracket, Mounting		Appelez-nous	-
6	4159035		Bushing		Appelez-nous	-
7	4159456		Screw		Appelez-nous	-
7	4451005		Trim, Extension		Appelez-nous	-
8	3148755		Cooktop (almond)		Appelez-nous	-
8	3148754		Cooktop (white)		Appelez-nous	-
9	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 7.47
9	330031		Receptacle   (Replaces: 312606)			Immediately	$ 17.93
10	4450908		Panel, Control		Appelez-nous	-
11	3183956		Seal, Switch (4)				$ 43.89
12	155023		Switch, Infinite (screw (8))			Immediately	$ 7.91
12	4454533		Switch, Infinite (use W/ 8`` Surface Unit (2))		Appelez-nous	-
12	4454532		Switch, Infinite (use W/ 6`` Surface Unit (2))		Appelez-nous	-
13	3187778		Indicator Light		Appelez-nous	-
14	313602		Lens, Light		Appelez-nous	-
15	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.47
19	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3150247)			Immediately	$ 19.64
19	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3150246)			Immediately	$ 12.05
20	WP660533		Unit, Surface 8`` (includes Illus. 21)   (Replaces: 660531)			Immediately	$ 40.21
20	WP660532		Unit, Surface 6``   (Replaces: 660529)			Immediately	$ 45.10
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	3183120		Knob, Control (4)		Appelez-nous	-
24	WP3188286		Thermostat   (Replaces: 3188286)				$ 69.44
24	313806		Screw, 6-32 (2)		Appelez-nous	-
25	4159456		Screw		Appelez-nous	-
25	3187446		Shield, Heat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
