SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel, Literature

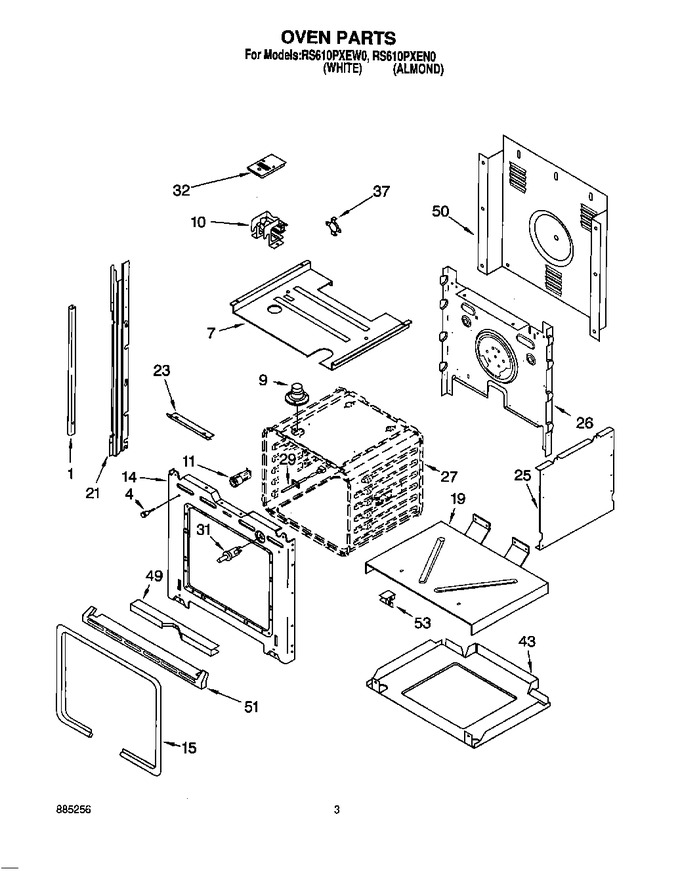

03 - Oven


04 - Oven Door


05 - Internal Oven


06 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450847		Trim, Side (lh Black)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 7.34
1	4450844		Trim, Side (rh Black)		Appelez-nous	-
4	4448520		Bumper, Door				$ 20.03
7	4451166		Partition		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
9	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
9	4450967		Tube, Vent		Appelez-nous	-
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
10	4451050		Fan & Bracket Assy		Appelez-nous	-
11	4450706		Oven Light Assy		Appelez-nous	-
14	4450417		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.90
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	4450493		Gasket, Door		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
19	4450542		Support, Insulation		Appelez-nous	-
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 115.01
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 7.34
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.07
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 114.07
23	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
23	4450051		Deflector		Appelez-nous	-
25	4450528		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
26	4451169		Back, Chassis		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
29	4450026		Sensor		Appelez-nous	-
31	4450819		Switch, Door		Appelez-nous	-
32	4449369		Vent Box Assy		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 4451442)			Immediately	$ 53.60
43	4451398		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
49	WP4448933		Retainer   (Replaces: 4448933)				$ 8.37
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
50	4450544		Cover, Back		Appelez-nous	-
51	4448477		Trim, Bottom (black Model)				$ 71.44
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
53	WP4449154		Screw   (Replaces: 4449154)				$ 7.34
53	4450365		Insulation, Back				$ 70.95
53	4449845		Bracket-support		Appelez-nous	-
53	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 112.37

    View Diagram in Separate Window       Print Part List
