SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel, Literature


03 - Oven


04 - Oven Door


05 - Internal Oven

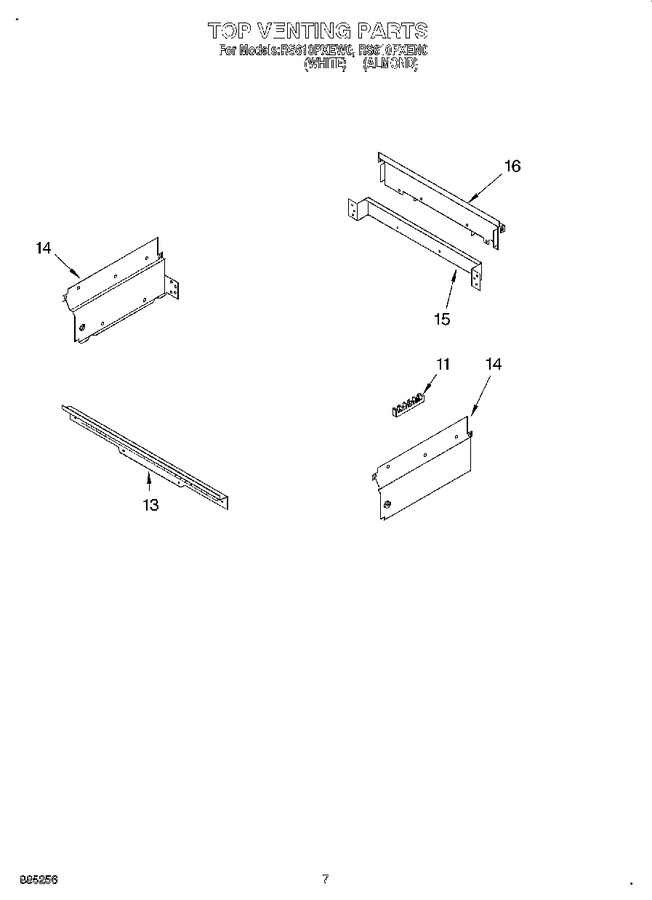

06 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
11	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 7.69
13	WP4450038		Screw   (Replaces: 4450038)				$ 7.47
13	4448549		Vent, Control Panel		Appelez-nous	-
14	4450029		Side, Control Compt. (right)		Appelez-nous	-
14	WP4449809		Side, Control Compt. (screw)   (Replaces: 4449809)			Immediately	$ 6.80
14	3191833		Side, Control Compt. (left)   (Replaces: 4450030)		Appelez-nous	-
15	4450658		Back, Control		Appelez-nous	-
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
16	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
16	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 73.65
16	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
16	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
16	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
16	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
16	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
16	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
16	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
16	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
16	242831		Wire (14 Ga. 200 C Red)				$ 342.23
16	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
16	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
16	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
16	WP488366		Clamp   (Replaces: 488366)				$ 10.73
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
16	4451430		Harness, Wire (main)		Appelez-nous	-
16	4451163		Conduit		Appelez-nous	-
16	4450800		Screw, Ground				$ 12.12
16	4448664		Clamp				$ 19.27
16	WP112432		Nut   (Replaces: 112432)				$ 7.77
16	3188566		Harness, Wire (infinite Switch)		Appelez-nous	-
16	3188449		Harness, Wire (surface Unit)		Appelez-nous	-
16	3184020		Ground Wire   (Replaces: 4454384)				$ 78.23
16	WP98997		Clip   (Replaces: 98997)				$ 10.48
16	WP4448950		Screw, Install. 8-14 X 1`` (4)   (Replaces: 4448950)				$ 7.34
16	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
16	814381		Hinge Pin Kit				$ 10.15
16	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
16	4449973		Cover, Rear		Appelez-nous	-
16	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 25.05
16	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
16	261900		Citrine White				$ 53.90
16	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 53.90

    View Diagram in Separate Window       Print Part List
