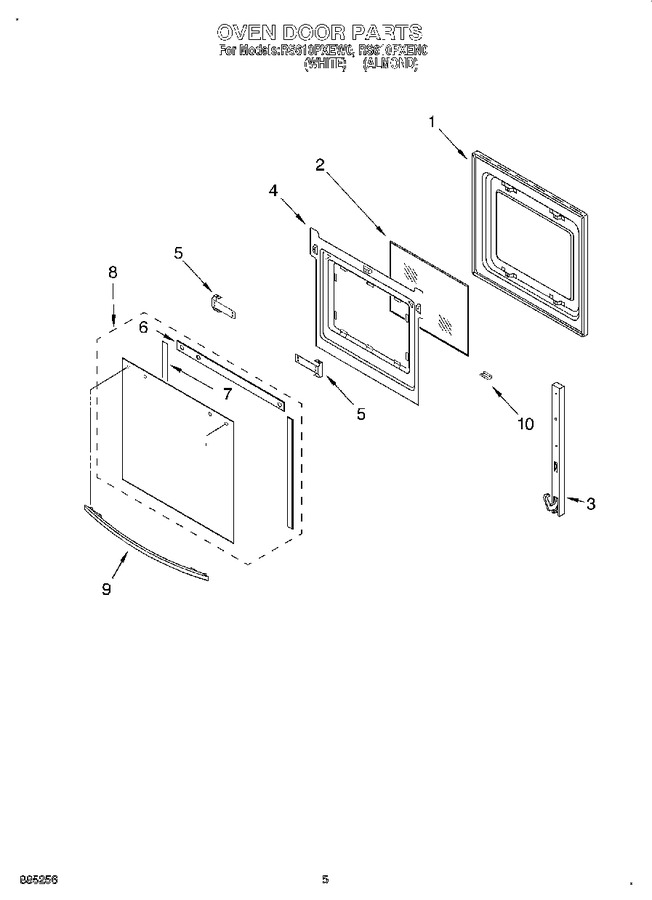

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450429		Door Liner		Appelez-nous	-
2	WP4449259		Glass, Inner   (Replaces: 4449258)				$ 192.01
3	WP4449743		Screw (4)   (Replaces: 4449743)				$ 6.80
3	WP4455523		Hinge, Door   (Replaces: 4451172)				$ 69.44
4	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 6.80
4	4450423		Retainer, Glass		Appelez-nous	-
5	4450813		Bracket, Handle				$ 24.20
5	W10276642		Screw (4)   (Replaces: 4451040)				$ 5.77
6	4450837		Seal, Top		Appelez-nous	-
7	4450838		Seal, Side (2)		Appelez-nous	-
8	4450691		Glass, Outer Door		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 5.77
9	4448854		Handle, Door				$ 74.07
10	4450863		Retainer, Glass		Appelez-nous	-
