SELECT A DIAGRAM

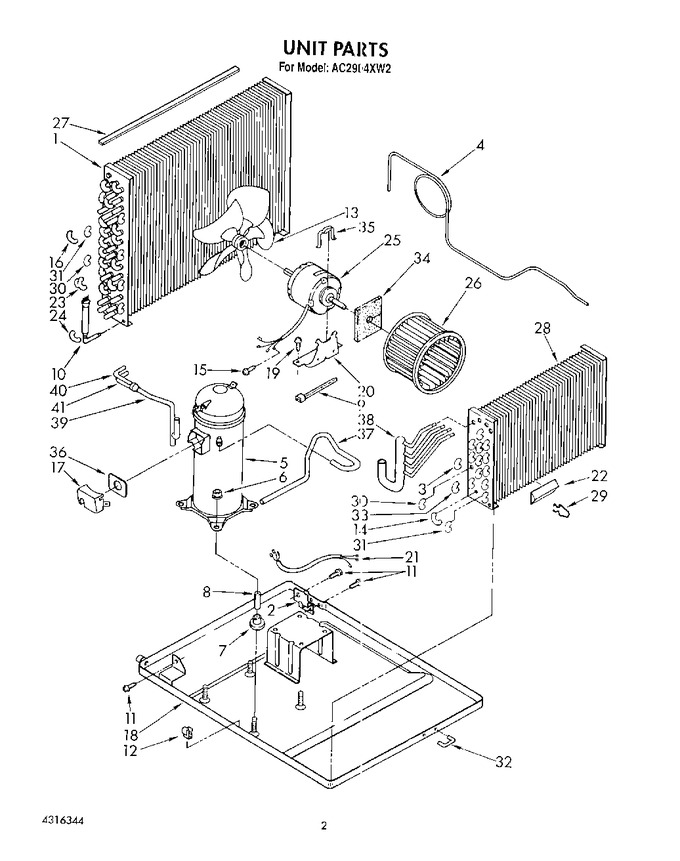

02 - Unit
03 - Airflow And Control
04 - Cabinet, Lit\optional
05 - Installation
06 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1162236 | Condenser |
|
- | |||||
| 2 | 856028 | Support, Condenser (rs) |
|
- | |||||
| 3 | 856665 | Bend, Return |
|
- | |||||
| 4 | 1162232 | Tube, Restrictor (4) |
|
- | |||||
| 5 | 1162220 | Compressor |
|
- | |||||
| 6 | 858121 | Locknut (4) |
|
- | |||||
| 7 | 475041 | Grommet (4) |
|
- | |||||
| 8 | 858116 | Sleeve (4) |
|
- | |||||
| 9 | WPW10339879 | Tie, Cable (8) (Replaces: 857547) |
|
$ 7.47 | |||||
| 10 | 1159504 | Strainer, Tube |
|
- | |||||
| 11 | WP489069 | Screw (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 12 | 471088 | Clamp (2) |
|
- | |||||
| 13 | 1162226 | Blade, Fan |
|
- | |||||
| 14 | 1162511 | Bend, Return Condenser (1) Evaporator (2) |
|
- | |||||
| 15 | WPW10141604 | Screw, 8 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 16 | 854625 | Bend, Return |
|
- | |||||
| 17 | 1162342 | Cover, Terminal |
|
- | |||||
| 18 | 856498 | Base, Unit |
|
- | |||||
| 19 | 488311 | Screw, 1/4 X 5/8 (4) |
|
- | |||||
| 20 | 471719 | Cradle, Motor (2) |
|
- | |||||
| 21 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 22 | 472046 | Anticipator |
|
- | |||||
| 23 | 953168 | Bend, Return (3-way) |
|
- | |||||
| 24 | 855457 | Bend, Return |
|
- | |||||
| 25 | 1162324 | Motor, Fan |
|
- | |||||
| 26 | 855934 | Wheel, Blower |
|
- | |||||
| 27 | WP854334 | Condenser, Top Seal (Replaces: 1159601) |
|
$ 12.55 | |||||
| 28 | 1162224 | Evaporator |
|
- | |||||
| 29 | 472047 | Clip (2) |
|
- | |||||
| 30 | 855199 | Bend, Return Condenser (32 Evaporator (12) |
|
- | |||||
| 31 | 854624 | Bend, Return Condenser (5 Evaporator (18) |
|
- | |||||
| 32 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 33 | 1162512 | Bend, Return |
|
- | |||||
| 34 | 476719 | Seal, Shaft |
|
- | |||||
| 35 | WPY015825 | Clip, Motor (2) (Replaces: 49633) |
|
$ 22.65 | |||||
| 36 | 1162343 | Gasket, Terminal Cover |
|
- | |||||
| 37 | 1162233 | Tube, Suction |
|
- | |||||
| 38 | 1162231 | Tube, Manifold (evaporator) |
|
- | |||||
| 39 | 1162813 | Tube, Discharge |
|
- | |||||
| 40 | 1159292 | Tube Inlet Top |
|
- | |||||
| 41 | 1159293 | Tube Inlet Bottom |
|
- |
