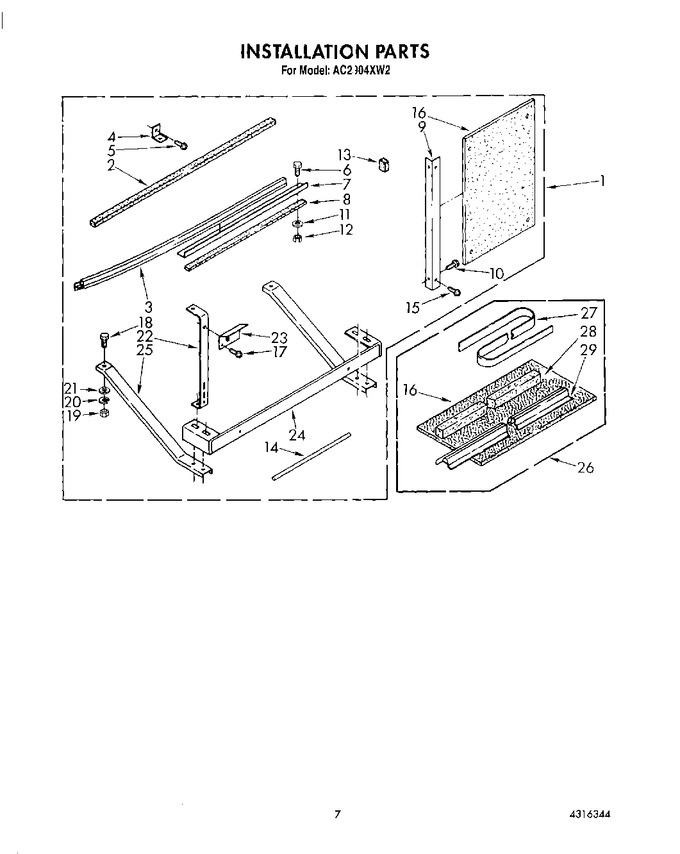

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 485451 | Standard Installation Kit |
|
- | |||||
| 2 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 3 | 644288 | Gasket, Sash |
|
- | |||||
| 4 | 644228 | Bracket, Window Lock |
|
- | |||||
| 5 | 488255 | Screw Wood No.8x3/4 |
|
- | |||||
| 6 | 487336 | Bolt, No.10-32 X 3/8 (3) |
|
- | |||||
| 7 | 645514 | Angle, Top Mounting |
|
- | |||||
| 8 | 855265 | Strip, Seal |
|
- | |||||
| 9 | 644272 | Angle, Side Mounting (2) |
|
- | |||||
| 10 | 488481 | Screw, S.m. No.10 X 3/8 (4) |
|
- | |||||
| 11 | 486608 | Washer Flat (3) |
|
- | |||||
| 12 | 487642 | Nut, Hex No.10-32 (3) |
|
- | |||||
| 13 | 995274 | Block, Spacer (2) |
|
- | |||||
| 14 | 212643 | Permagum, Sea1er (4 - 12`` Strips) |
|
Immediately | $ 86.78 | ||||
| 15 | WP965173 | Screw, S.m. No.8 X 3/8 (4) (Replaces: 488017) |
|
Immediately | $ 10.68 | ||||
| 16 | 645513 | Board, Filler (2) |
|
- | |||||
| 17 | 487488 | Wood Screw, 10 X 1 |
|
- | |||||
| 18 | 488750 | Bolt, No.10 X 3/4 (10) |
|
- | |||||
| 19 | 486035 | Nut, Hex |
|
- | |||||
| 20 | 486009 | Washer, Lock (10) |
|
- | |||||
| 21 | 488808 | Washer, Flat (10) |
|
- | |||||
| 22 | 645517 | Retainer, Cabinet Support |
|
- | |||||
| 23 | 645515 | Bracket, Sill (2) |
|
- | |||||
| 24 | 645516 | Bracket, Support |
|
- | |||||
| 25 | 645518 | Support, Caninet (2) |
|
- | |||||
| 26 | 485856 | Wide Window Installation Kit |
|
- | |||||
| 27 | 856979 | Strip, Seal |
|
- | |||||
| 28 | 470800 | Seal, Meeting Rail |
|
- | |||||
| 29 | 998618 | Instructions Installation (wide Window Kit) |
|
- | |||||
| 29 | 485457 | Gasket, Sash (54``) |
|
- | |||||
| 29 | 993383 | Instructions, Installation (standard Kit) |
|
- |
