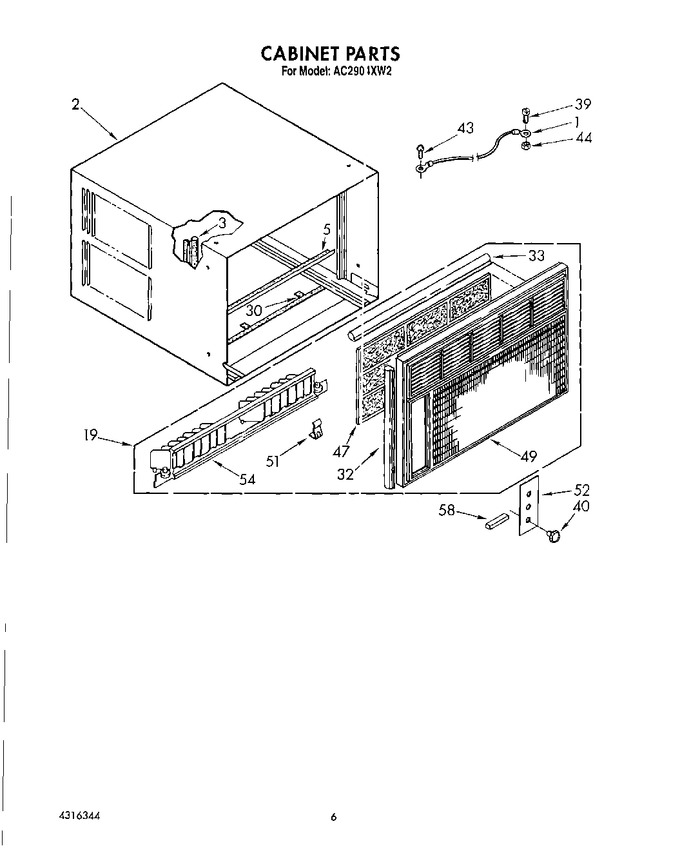

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857078		Wire, Ground		Appelez-nous	-
2	856602		Cabinet		Appelez-nous	-
3	476796		Seal, Sides (2)		Appelez-nous	-
5	857154		Seal, Bottom		Appelez-nous	-
19	947874		Front, Cabinet (complete Assembly)		Appelez-nous	-
30	WP854334		Spacer, Bottom (2)   (Replaces: 857471)				$ 12.55
32	644168		Seal, Side (2)		Appelez-nous	-
33	644167		Seal, Top And Bottom (02)		Appelez-nous	-
39	488853		Screw, 8 X 3/8		Appelez-nous	-
40	947264		Knob, Control		Appelez-nous	-
43	488854		Screw, 8-32 X 3/8		Appelez-nous	-
44	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
47	648475		Filter, Air		Appelez-nous	-
49	947875		Cabinet, Front		Appelez-nous	-
51	644169		Clip, Mounting (4)		Appelez-nous	-
52	952553		Plate, Escutcheon		Appelez-nous	-
54	644164		Louver, Vertical		Appelez-nous	-
58	469175		Spacer, Esuctcheon		Appelez-nous	-
	LIT950355		Guide, Use And Care		Appelez-nous	-
	LIT4316255		List, Repair Parts		Appelez-nous	-
	LIT952017		Guide, Energy		Appelez-nous	-
	LIT948990		Instructions, Installation		Appelez-nous	-
	LIT1159265		Sheet, Tech		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
