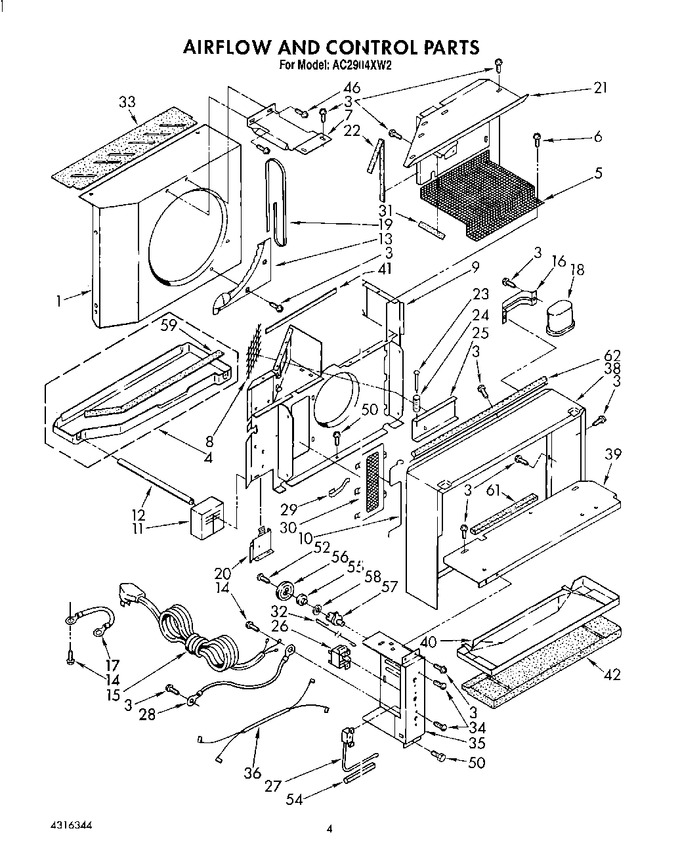

03 - Airflow And Control


04 - Cabinet, Lit\optional


05 - Installation


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162326		Shroud, Condenser		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	952708		Pan, Condensate		Appelez-nous	-
5	1159324		Guard, Evaporator Impeller		Appelez-nous	-
6	1159503		Screw, (2)		Appelez-nous	-
7	475742		Support, Unit		Appelez-nous	-
8	470986		Screen		Appelez-nous	-
9	1156124		Wall, Dividing		Appelez-nous	-
10	648138		Actuator, Fresh Air Door		Appelez-nous	-
11	856916		Seal, Tube		Appelez-nous	-
12	475710		Tube, Left		Appelez-nous	-
12	477542		Tube, Right		Appelez-nous	-
13	1158387		Cup, Condensate		Appelez-nous	-
14	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
15	647223		Cable, Appliance		Appelez-nous	-
16	997218		Bracket		Appelez-nous	-
17	998010		Ground Wire		Appelez-nous	-
18	951518		Capacitor,		Appelez-nous	-
19	1162814		Seal, Unit Support Running		Appelez-nous	-
20	1155699		Extension, Wall		Appelez-nous	-
21	998324		Plate, Back		Appelez-nous	-
22	1158774		Seal,		Appelez-nous	-
23	471108		Pin		Appelez-nous	-
24	471109		Spring		Appelez-nous	-
25	473781		Door, Exhaust		Appelez-nous	-
26	950520		Switch, Rotary		Appelez-nous	-
27	649422		Control, Temperature		Appelez-nous	-
28	856509		Wire, Ground		Appelez-nous	-
29	649428		Spring, Fresh Air & Exhaust Door		Appelez-nous	-
30	648137		Door, Fresh Air		Appelez-nous	-
31	WP854334		Seal, Cut-off Flange   (Replaces: 854528)				$ 12.55
32	648322		Wire, Fresh Air Control		Appelez-nous	-
32	648321		Wire, Exhaust Control		Appelez-nous	-
33	855213		Insulation, Condenser Shroud		Appelez-nous	-
34	488734		Screw, 6-32 X .175		Appelez-nous	-
35	950551		Box, Control		Appelez-nous	-
36	1159317		Wiring Harness, Control Box 01		Appelez-nous	-
37	WP489069		Screw No.8-3/8   (Replaces: 1157158)			Immediately	$ 7.56
38	475730		Cover, Air Duct		Appelez-nous	-
39	648319		Cover, Evaporator		Appelez-nous	-
40	475708		Pan, Evaporator		Appelez-nous	-
41	1160792		Seal		Appelez-nous	-
42	856917		Insulation		Appelez-nous	-
46	488624		Screw, 8 X 3/8		Appelez-nous	-
50	WP965173		Screw, 8 X 3/8 (6)   (Replaces: 487415)			Immediately	$ 10.68
52	489092		Screw, 8-16 5/8		Appelez-nous	-
54	475841		Sleeve		Appelez-nous	-
55	647879		Bushing, Fresh Air & Exhaust		Appelez-nous	-
56	648131		Cam, Fresh Air & Exhaust		Appelez-nous	-
57	648130		Shaft, Fresh Air & Exhaust		Appelez-nous	-
58	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
59	476089		Seal, Pan		Appelez-nous	-
61	476099		Strip, Seal (2)		Appelez-nous	-
62	475733		Seal, Cabinet Top		Appelez-nous	-
