SELECT A DIAGRAM
New Model Search:

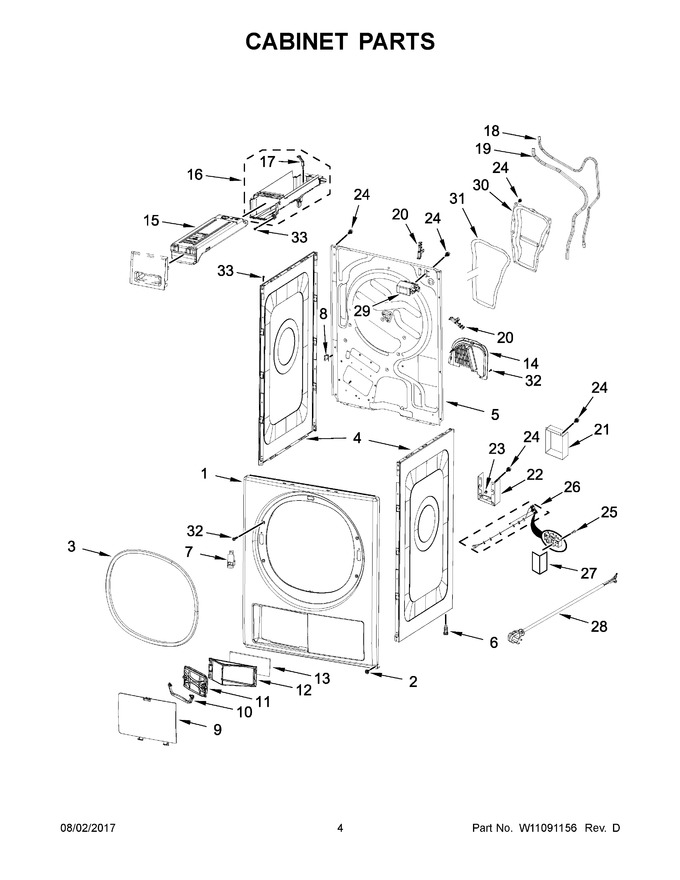

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11089032 | Panel, Front (white) (Replaces: W10749940) |
|
$ 208.99 | |||||
| 2 | 251920100121 | Screw |
|
$ 11.78 | |||||
| 3 | W10713648 | Seal (front Panel - Door) |
|
$ 43.15 | |||||
| 4 | W11086536 | Panel, Side (white) (Replaces: W10783931) |
|
Immediately | $ 251.05 | ||||
| 5 | W10869854 | Panel - Rear, Dryer Bulkhead (white) |
|
$ 251.05 | |||||
| 6 | 461971007235 | Foot |
|
Immediately | $ 10.59 | ||||
| 7 | W11034741 | Lock, Door |
|
Immediately | $ 39.70 | ||||
| 7 | W11173155 | Lock, Door (Replaces: W10903697) |
|
Immediately | $ 13.49 | ||||
| 8 | W10413565 | Clip, Grounding |
|
$ 21.97 | |||||
| 9 | W10590597 | Filter Door (front Panel) |
|
$ 38.08 | |||||
| 10 | W10354762 | Filter, Handle |
|
$ 70.43 | |||||
| 11 | W11382898 | Filter, Cover (Replaces: W10878816) |
|
Immediately | $ 153.53 | ||||
| 12 | W11382898 | Filter, Frame (Replaces: W10716908) |
|
Immediately | $ 153.53 | ||||
| 13 | W11382898 | Filter, Foam (Replaces: W10716911) |
|
Immediately | $ 153.53 | ||||
| 14 | W10869901 | Access Door (pump - Rear Panel) |
|
$ 80.84 | |||||
| 15 | W10572507 | Tank, Water |
|
$ 103.34 | |||||
| 16 | W10869879 | Housing, Water Tank (includes Inflow Pipe) |
|
$ 74.73 | |||||
| 17 | W10629345 | Pipe, Water Tank Inflow |
|
$ 104.50 | |||||
| 18 | 461970110583 | Hose (inflow To Pump) |
|
$ 33.37 | |||||
| 19 | 461970110592 | Hose, Over Fill (water Tank To Pump) |
|
Immediately | $ 29.12 | ||||
| 20 | W10877423 | Bracket, Hose |
|
$ 21.56 | |||||
| 21 | W11024654 | Cover, Terminal Box |
|
$ 89.46 | |||||
| 22 | W10867297 | Housing, Terminal Box |
|
- | |||||
| 23 | W10901033 | Screw |
|
- | |||||
| 24 | 251915100047 | Screw |
|
- | |||||
| 25 | W10910838 | Screw |
|
$ 20.48 | |||||
| 26 | W10893552 | Harness, Terminal Block |
|
$ 177.85 | |||||
| 27 | W10913553 | Insulator, Terminal Block Harness |
|
$ 102.47 | |||||
| 28 | W10919298 | Power Cord (can) |
|
$ 102.09 | |||||
| 29 | WPW10367632 | Filter, Rfi (Replaces: 461970255241) |
|
$ 115.50 | |||||
| 30 | W10730860 | Cover, Heater |
|
$ 231.28 | |||||
| 31 | 461970110931 | Seal, Heater Cover |
|
$ 105.82 | |||||
| 32 | W10658549 | Screw |
|
$ 19.79 | |||||
| 33 | 251925600056 | Screw |
|
- |
