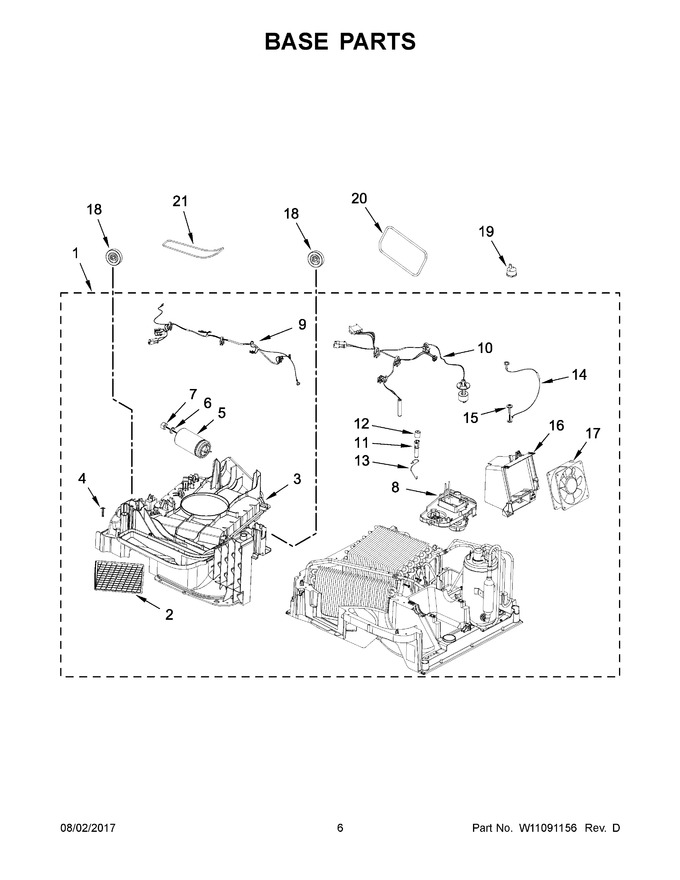

04 - Base Parts


05 - Motor Parts


06 - Drum And Bulkhead Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11095574		Base Unit   (Replaces: W10869824)				$ 1,756.96
2	W10717367		Filter, Base			Immediately	$ 91.60
3	W10749921		Cover, Base Unit				$ 188.43
4	W10306501		Screw		Appelez-nous	-
5	W10888251		Capacitor				$ 129.34
6	W10526920		Washer, Lock		Appelez-nous	-
7	461971006671		Nut		Appelez-nous	-
8	W11086537		Pump Assembly   (Replaces: W10876878)			Immediately	$ 294.65
9	W10861575		Harness, Compressor				$ 226.91
10	W10863066		Harness, Ntc				$ 166.91
11	W11676452		Sensor, Ntc   (Replaces: 461975011671)			Immediately	$ 27.38
12	W10354746		Cap, Ntc		Appelez-nous	-
13	W10374142		Spring, Ntc				$ 24.35
14	W10863067		Harness, Heat Pump (ground)				$ 24.10
15	251926500053		Screw		Appelez-nous	-
16	W10645481		Housing, Fan				$ 73.03
17	W11097203		Fan   (Replaces: W10869835)				$ 249.49
18	W10456115		Roller, Support			Immediately	$ 73.94
19	W11095574		Compressor Thermal Overload Protector   (Replaces: W10869849)				$ 1,756.96
20	461970110101		Seal, Base To Rear Panel				$ 105.82
21	461970110181		Seal, Base To Front Bulkhead				$ 105.82
