Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10869841 Motor Appelez-nous -
2 W10629389 Washer Special Order $ 36.47

3 W11794562 Kit, Pulley (includes Bolt And Nut)   (Replaces: W10700903) Special Order $ 26.71

4 W11086538 Wheel, Blower   (Replaces: W10425277) Special Order $ 90.27

5 251960079006 Washer Special Order $ 11.71

6 251950002001 Nut Special Order $ 23.58

7 461970111021 Spring, Belt Tension Special Order $ 25.48

8 251920100121 Screw Special Order $ 11.78

9 W10645484 Cover, Blower Special Order $ 83.21

10 461970110251 Seal, Motor To Blower Special Order $ 29.12

11 461970110451 Bracket, Motor Special Order $ 16.90

12 251925600056 Screw Appelez-nous -

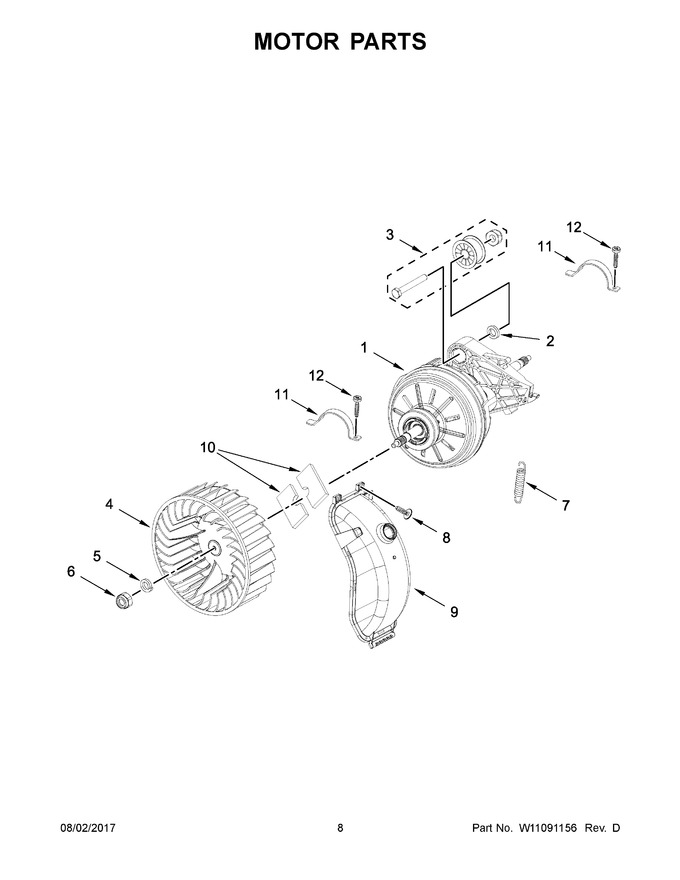

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for YWHD3090GW0
