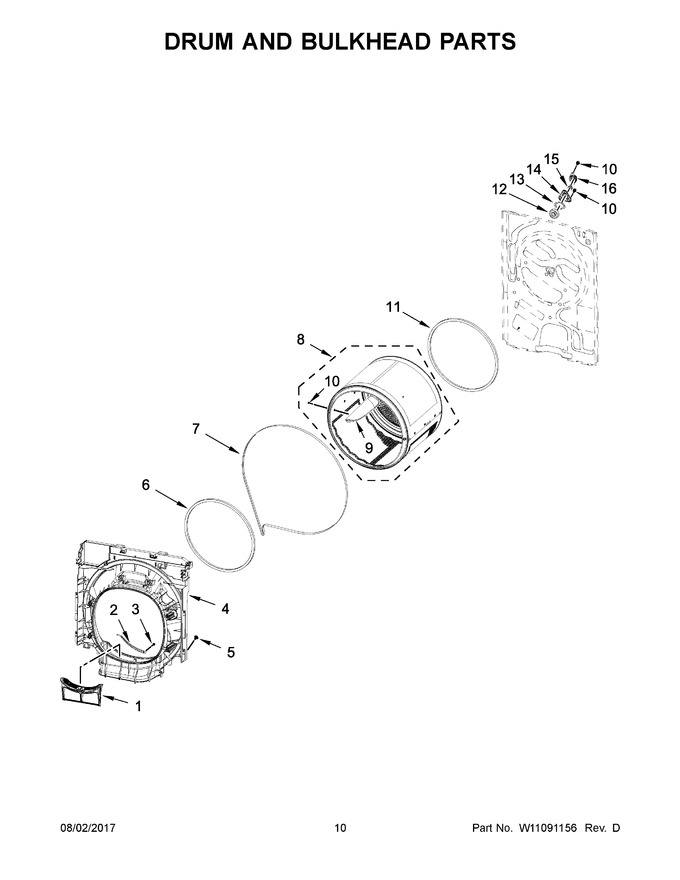

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11665948 | Lint Screen (Replaces: W10615876) |
|
Immediately | $ 68.80 | ||||
| 2 | 461970109731 | Sensor, Humidity |
|
Immediately | $ 80.09 | ||||
| 3 | 251926501053 | Screw |
|
$ 12.12 | |||||
| 4 | W11086785 | Bulkhead, Front (Replaces: W10615877) |
|
Immediately | $ 293.18 | ||||
| 5 | W10711270 | Screw |
|
- | |||||
| 6 | W10615879 | Seal, Drum (front) |
|
$ 85.85 | |||||
| 7 | W11661103 | Belt, Drum (Replaces: 461970110511) |
|
Immediately | $ 32.09 | ||||
| 8 | W11444459 | Assembly, Drum (complete) (Replaces: W10607221) |
|
$ 543.47 | |||||
| 9 | W10492721 | Baffle, Drum |
|
- | |||||
| 10 | 251925600056 | Screw |
|
- | |||||
| 11 | W10829310 | Seal, Drum (rear) |
|
$ 86.87 | |||||
| 12 | 461970104891 | Bearing, Drum (axis) |
|
$ 76.36 | |||||
| 13 | 461970104831 | Washer, Spring |
|
Immediately | $ 12.74 | ||||
| 14 | 461970109272 | Housing, Bearing (axis) |
|
$ 27.76 | |||||
| 15 | 251950002001 | Nut |
|
$ 23.58 | |||||
| 16 | 461970105381 | Cover, Bearing (axis) |
|
$ 170.27 |
