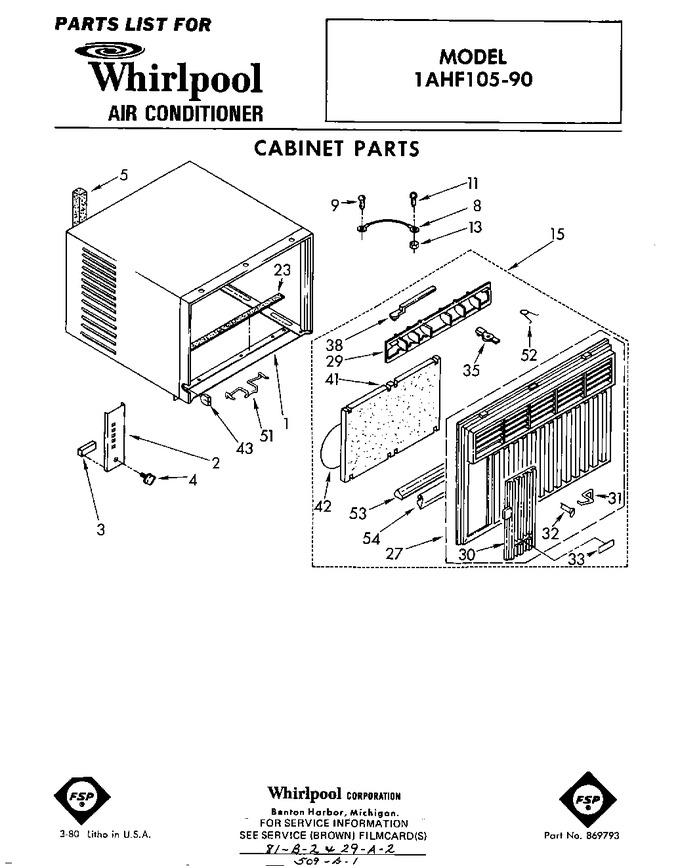

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858828		Cabinet		Appelez-nous	-
2	947665		Escutcheon		Appelez-nous	-
3	470036		Spacer, Escutcheon (3)		Appelez-nous	-
4	947264		Knob, Control (3)		Appelez-nous	-
5	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 13.94
8	857017		Ground, Wire		Appelez-nous	-
9	488853		Screw, 8 X 3/8		Appelez-nous	-
11	488854		Screw, 8 X 3/8		Appelez-nous	-
13	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 6.47
15	947666		Cabinet Front (complete)		Appelez-nous	-
23	647854		Seal, Cabinet Bottom		Appelez-nous	-
27	947667		Cabinet Cabinet Front (includes Items 31, 31 & 32)		Appelez-nous	-
29	647798		Louver, Vertical		Appelez-nous	-
30	947669		Door, Control		Appelez-nous	-
31	649943		Pin. Hinge (2)		Appelez-nous	-
32	649949		Spring, Catch		Appelez-nous	-
33	947408		Nameplate		Appelez-nous	-
35	644165		Handle, Louver (2)		Appelez-nous	-
38	647799		Link (2)		Appelez-nous	-
41	852413		Filter		Appelez-nous	-
42	476707		Retainer, Filter		Appelez-nous	-
43	647849		Grommet, Appliance Cable		Appelez-nous	-
51	649966		Clip, Front (2)		Appelez-nous	-
52	641484		Spring (2)				$ 166.82
53	WP854334		Seal   (Replaces: 647913)				$ 13.94
54	647914		Seal		Appelez-nous	-
