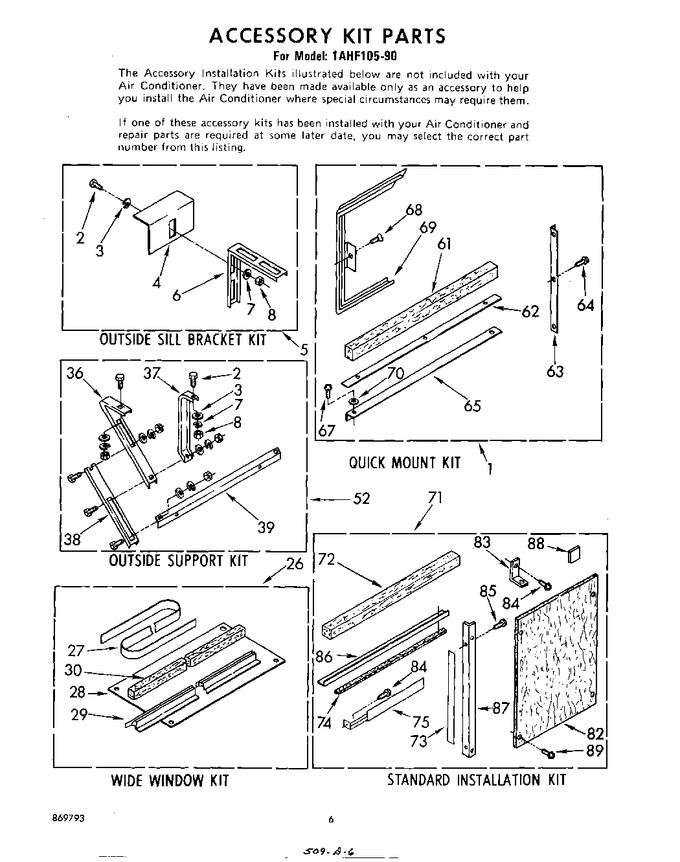

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 485675 | Kit, Quick Mount |
|
- | |||||
| 2 | 488750 | Bolt, 1/4 X 3/4 |
|
- | |||||
| 3 | 488808 | Lockwasher |
|
- | |||||
| 4 | 645515 | Bracket, Sill Mounting (2) |
|
- | |||||
| 5 | 485678 | Kit, Outside Sill Bracket |
|
- | |||||
| 6 | 485466 | Bracket, Rail Support (2) |
|
- | |||||
| 7 | 486009 | Lockwasher |
|
- | |||||
| 8 | 486035 | Nut, Hex |
|
- | |||||
| 26 | 485676 | Kit, Wide Window |
|
- | |||||
| 27 | 855265 | Strip, Seal |
|
- | |||||
| 28 | 485484 | Board, Filler |
|
- | |||||
| 29 | 485455 | Bracket, Mounting (l.s.) |
|
- | |||||
| 29 | 485454 | Bracket, Mounting (r.s.) |
|
- | |||||
| 30 | 479158 | Gasket, Meeting Rail |
|
- | |||||
| 36 | 12035780 | Support (2) (Replaces: 644283) |
|
Immediately | $ 384.19 | ||||
| 37 | 644285 | Support, Retainer (2) |
|
- | |||||
| 38 | 00644284 | Extension, Support (2) (Replaces: 644284) |
|
$ 38.00 | |||||
| 39 | 644281 | Bracket, Support (2) |
|
- | |||||
| 52 | 485679 | Kit, Outside Support |
|
- | |||||
| 61 | 855841 | Seal, Meeting Rail |
|
$ 7.86 | |||||
| 62 | 477597 | Strip, Seal |
|
$ 6.29 | |||||
| 63 | 644388 | Retainer, Curtain (2) |
|
- | |||||
| 64 | 488730 | Screw, 8 X 7/16 |
|
- | |||||
| 65 | 644387 | Channel, Bottom |
|
- | |||||
| 67 | WP308685 | Screw, 10 X 1/2 (Replaces: 488720) |
|
Immediately | $ 7.87 | ||||
| 68 | 475581 | Thumbscrew (2) |
|
- | |||||
| 69 | 647841 | Curtain Housing Assembly, L.s. |
|
- | |||||
| 69 | 647840 | Curtain Housing Assembly, R.s. |
|
- | |||||
| 70 | 487656 | Washer (2) |
|
- | |||||
| 71 | 485674 | Kit, Standard Installation |
|
- | |||||
| 72 | 469877 | Seal |
|
- | |||||
| 73 | 856979 | Strip, Seal |
|
- | |||||
| 74 | 856986 | Strip, Seal |
|
- | |||||
| 75 | 645563 | Bracket, L.s. |
|
- | |||||
| 75 | 645562 | Bracket, R.s. |
|
- | |||||
| 82 | 647835 | Board, Filler |
|
- | |||||
| 83 | 644228 | Bracket |
|
- | |||||
| 84 | 488255 | Wood Screw, 8 X 3/4 |
|
- | |||||
| 85 | WP308685 | Screw, 10 X 1/2 (Replaces: 488720) |
|
Immediately | $ 7.87 | ||||
| 86 | 644380 | Angle, Top |
|
- | |||||
| 87 | 645564 | Angle (2) |
|
- | |||||
| 88 | 995274 | Spacer, Block (2) |
|
- | |||||
| 89 | WP965173 | Screw, 8 X 3/8 (Replaces: 488017) |
|
Immediately | $ 11.87 | ||||
| 89 | 485706 | Instructions, Installation (outside Sill Kit) |
|
- | |||||
| 89 | 485687 | Instructions, Installation (kit, Quick Mount) |
|
- | |||||
| 89 | 485688 | Instructions, Installation (kit, Wide Window) |
|
- | |||||
| 89 | 485707 | Instructions, Installation (kit, Outside Support) |
|
- | |||||
| 89 | 648435 | Instructions, Installation (kit, Standard Installation) |
|
- |
