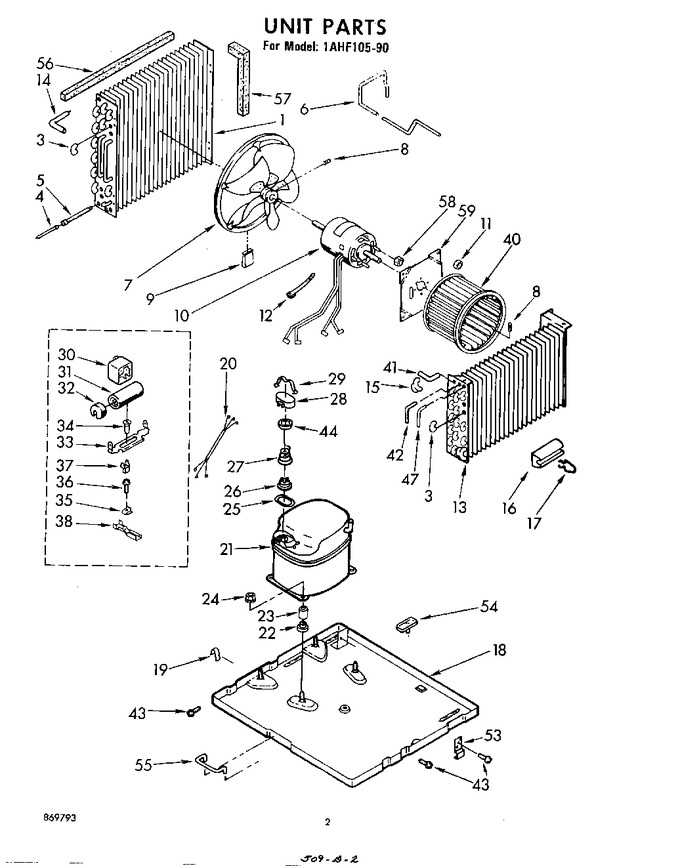

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 993333 | Condenser |
|
- | |||||
| 3 | 855199 | Bend, Return (21) Condenser (13) Evaporator |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer |
|
- | |||||
| 6 | 993339 | Tube, Restrictor |
|
- | |||||
| 7 | 947370 | Blade, Fan |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 9 | 485334 | Clip, Balancing |
|
- | |||||
| 10 | 998492 | Fan Motor |
|
- | |||||
| 11 | 858122 | Nut, Hex (4) |
|
- | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 8.30 | |||||
| 13 | 855790 | Evaporator |
|
- | |||||
| 14 | 485022 | Tube, Inlet |
|
- | |||||
| 15 | 49493 | Bend, Return 3-way |
|
- | |||||
| 16 | 475573 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 856430 | Base |
|
- | |||||
| 19 | 642684 | Clamp |
|
- | |||||
| 20 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 484361 | Compressor |
|
- | |||||
| 22 | 469581 | Grommet (4) |
|
- | |||||
| 23 | 858148 | Sleeve (4) |
|
- | |||||
| 24 | 858121 | Locknut (4) |
|
- | |||||
| 25 | 473884 | Gasket, Terminal Cover |
|
- | |||||
| 26 | WP1161170 | Overload (Replaces: 947914) |
|
$ 94.13 | |||||
| 27 | 473882 | Spring, Overload |
|
- | |||||
| 28 | 647713 | Cover, Terminal |
|
- | |||||
| 29 | 647714 | Strap, Terminal Cover |
|
- | |||||
| 30 | 484363 | Relay (component Of Start Kit) |
|
- | |||||
| 31 | 484358 | Capacitor (component Of Start Kit) |
|
- | |||||
| 32 | 791869 | Cap, Capacitor (component Of Start Kit) |
|
- | |||||
| 33 | 35564 | Bracket, Capacitor (component Of Start Kit) |
|
$ 262.34 | |||||
| 34 | 487880 | Screw, 10 X 5/8 (component Of Start Kit) |
|
- | |||||
| 35 | 488660 | Nut, Speed (component Of Start Kit) (Replaces: 486197) |
|
- | |||||
| 36 | WP965173 | Screw, 8 X 3/8 Component Of Start Kit) (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 37 | 90654 | Multiplier, Terminal (component Of Start Kit) |
|
- | |||||
| 38 | 45571 | Clip, Terminal (component Of Start Kit) |
|
- | |||||
| 40 | 855608 | Wheel, Blower |
|
- | |||||
| 41 | 485624 | Tube, Inlet (90~ Bend) |
|
- | |||||
| 42 | 485897 | Tube 90~ Bend |
|
- | |||||
| 43 | WP308685 | Screw, Repair (Replaces: 488861) |
|
Immediately | $ 7.87 | ||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 44 | 473883 | Adapter, Overload |
|
- | |||||
| 47 | 485625 | Tube, Outlet (90~ Bend) |
|
- | |||||
| 53 | 647824 | Condenser, Support (r.s.) |
|
- | |||||
| 54 | 647850 | Cup, Condensate Drain |
|
- | |||||
| 55 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 143.42 | |||||
| 56 | 649609 | Seal |
|
- | |||||
| 57 | 649610 | Seal |
|
- | |||||
| 58 | WP488130 | Nut, Hex (4) (Replaces: 488130) |
|
$ 7.32 | |||||
| 59 | 869793 | List, Parts |
|
- | |||||
| 59 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 59 | 484220 | Kit, Start Assist |
|
- | |||||
| 59 | 994121 | Electrical Requirement |
|
- | |||||
| 59 | 947261 | Installation Instruction |
|
- | |||||
| 59 | 994741 | Use & Care Guide |
|
- | |||||
| 59 | 998024 | Plate, Mounting |
|
- | |||||
| 59 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 59 | 212643 | Sealer, Gum (Replaces: 470168) |
|
Immediately | $ 96.42 | ||||
| 59 | 649939 | Insulation, Fiberglass (5/8`` X 25-5/8`` X 13-1/2``) |
|
- | |||||
| 59 | 647846 | Insulation, Cabinet (top) |
|
- | |||||
| 59 | 647847 | Insulation, Cabinet R.s. |
|
- | |||||
| 59 | 647848 | Insulation, Cabinet L.s. |
|
- | |||||
| 59 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 59 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 59 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 59 | WP279368 | Adhesive, To Attach Insulation (24 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| 59 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 59 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 59 | 799351 | Thinner, Blend (1 Gal.) |
|
- | |||||
| 59 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 59 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 18.65 | |||||
| 59 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 59 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 59 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 59 | 484069 | Cover, Winter |
|
$ 62.49 | |||||
| 59 | 484364 | Kit, Compressor |
|
- |
