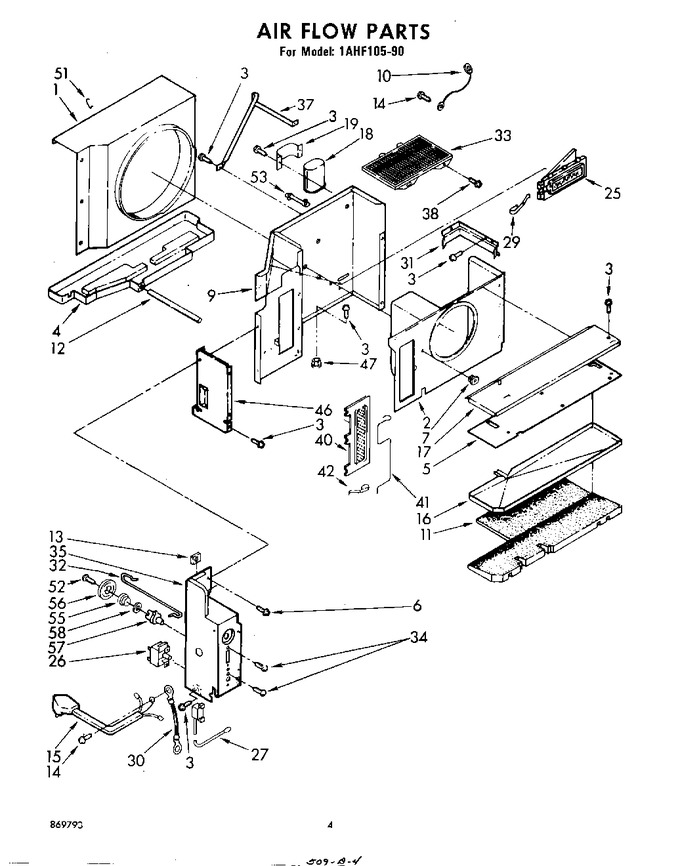

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 647862 | Shroud, Condenser |
|
- | |||||
| 2 | 852876 | Housing, Blower Wheel |
|
- | |||||
| 3 | WP308685 | Screw, Repair (Replaces: 488861) |
|
Immediately | $ 7.87 | ||||
| 3 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 8.40 | ||||
| 4 | 859238 | Pan, Condensate |
|
- | |||||
| 5 | 948410 | Insulation, Evaporator Cover |
|
- | |||||
| 6 | WP965173 | Screw, 8 X 3/8z (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 7 | 487808 | Fastener, Snap (2) |
|
- | |||||
| 9 | 998488 | Wall |
|
- | |||||
| 10 | 948285 | Wire Assembly, Ground |
|
- | |||||
| 11 | 853269 | Insulation, Condensate Pan |
|
- | |||||
| 12 | 49181 | Tube, Condensate |
|
- | |||||
| 13 | 647865 | Grommet |
|
- | |||||
| 14 | WPW10141604 | Screw, 8 X 3/8 (Replaces: 487871) |
|
$ 8.85 | |||||
| 15 | 649070 | Cable |
|
- | |||||
| 16 | 853268 | Pan, Evaporator Condensate |
|
- | |||||
| 17 | 856957 | Cover, Evaporator |
|
- | |||||
| 18 | 947913 | Capacitor, Running |
|
- | |||||
| 19 | 475844 | Bracket, Capacitor (lower) |
|
- | |||||
| 19 | 852992 | Bracket, Capacitor (upper) |
|
- | |||||
| 25 | 649720 | Door, Exhaust |
|
- | |||||
| 26 | 948315 | Switch, Rotary |
|
- | |||||
| 27 | 852543 | Control, Temperature |
|
- | |||||
| 29 | 859369 | Spring, Fresh Air & Exhaust |
|
- | |||||
| 30 | 857634 | Wire, Ground |
|
- | |||||
| 31 | 852317 | Channel, Wiring |
|
- | |||||
| 32 | 648132 | Wire, Fresh Air Control |
|
- | |||||
| 32 | 859370 | Wire, Exhaust Control |
|
- | |||||
| 33 | 997949 | Guard, Evaporator Impeller |
|
- | |||||
| 34 | 488734 | Screw, 6 X .175 |
|
- | |||||
| 35 | 994174 | Box, Control |
|
- | |||||
| 37 | 852318 | Support, Unit |
|
- | |||||
| 38 | WP488729 | Screw, 8 X 1/2 (2) (Replaces: 487910) |
|
Immediately | $ 8.28 | ||||
| 40 | 859639 | Door, Fresh Air |
|
- | |||||
| 41 | 853434 | Actuator, Fresh Air Door |
|
- | |||||
| 42 | 649428 | Spring, Fresh Air Door |
|
- | |||||
| 46 | 852994 | Dividing Wall Assembly, L.s. |
|
- | |||||
| 47 | 649620 | Clip, Speed |
|
- | |||||
| 51 | 647873 | Clip, Shroud (3) |
|
- | |||||
| 52 | 00487953 | Screw, 8 X 1/2 (Replaces: 487953) |
|
$ 177.40 | |||||
| 53 | 648791 | Clamp, Cable |
|
- | |||||
| 55 | 647879 | Bushing, Fresh Air & Exhaust |
|
- | |||||
| 56 | 647882 | Cam, Fresh Air & Exhaust |
|
- | |||||
| 57 | 852668 | Shaft, Fresh Air & Exhaust |
|
- | |||||
| 58 | 00647881 | Washer, Spring (Replaces: 647881) |
|
$ 407.23 |
