01 - Cover Sheet

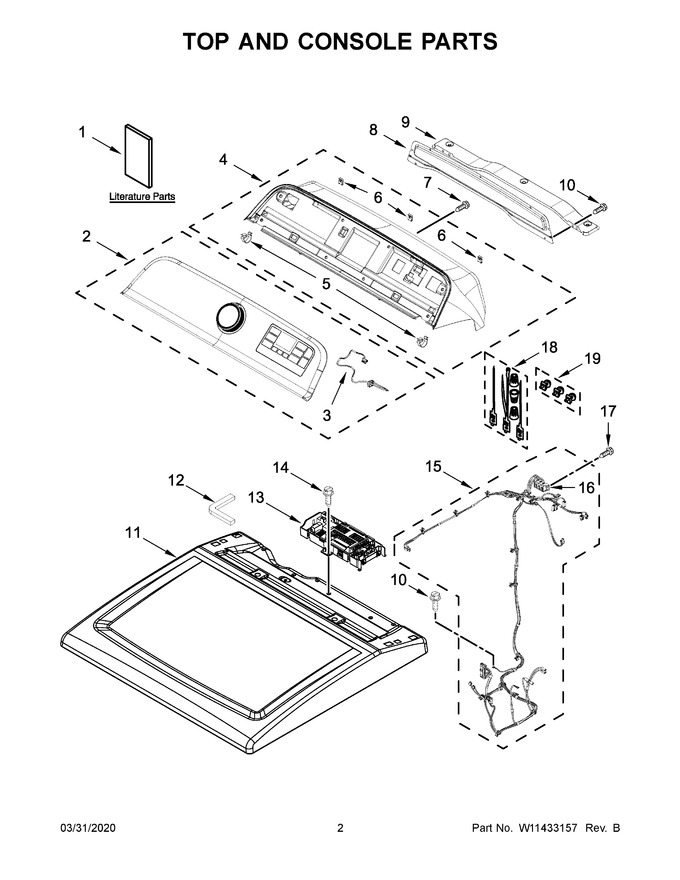

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268643 | Installation Instructions |
|
- | |||||
| 2 | W11413568 | Assembly, Console Fascia (complete) (Replaces: W11164012) |
|
- | |||||
| 3 | W11721377 | Harness, User Interface (hmi) (Replaces: W11164276) |
|
$ 27.98 | |||||
| 4 | W11406680 | Console (chrome Shadow) (Replaces: W11128049) |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 7 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 8 | W10622402 | Panel, Rear Console |
|
- | |||||
| 9 | W10651902 | Bulkhead Bracket, Rear Panel |
|
- | |||||
| 10 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 11 | W11051477 | Top (chrome Shadow) (Replaces: W10681117) |
|
$ 322.97 | |||||
| 12 | W10185554 | Foam, Top |
|
- | |||||
| 13 | W11526008 | Control, Electronic (acu) (Replaces: W11396815) |
|
$ 322.25 | |||||
| 14 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 15 | W11164051 | Main Harness |
|
- | |||||
| 16 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 17 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 18 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 19 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 1A | W11175222 | Tech Sheet |
|
- | |||||
| 1B | W11175228 | Quick Start Guide |
|
- |
