01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts

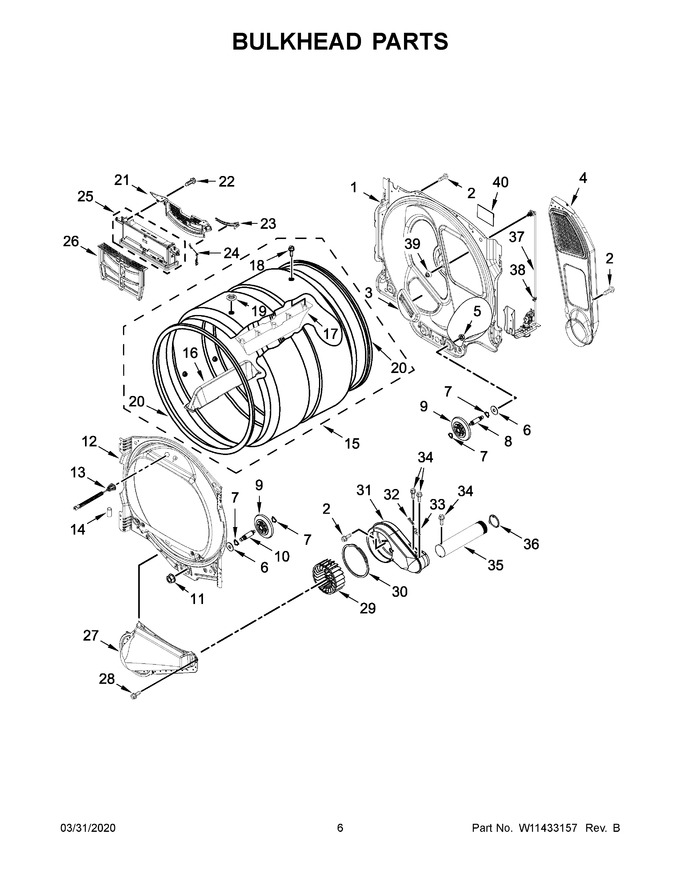

04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11135008 | Bulkhead, Rear (Replaces: W10712886) |
|
- | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 3 | W11702231 | Sensor Assembly, Quad Bulkhead (Replaces: W10677270) |
|
$ 103.71 | |||||
| 4 | W11104017 | Duct, Inlet Assembly |
|
$ 141.55 | |||||
| 5 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 6 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 7 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 9.68 | ||||
| 8 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 9 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 10 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 11 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 12 | W10861007 | Bulkhead, Front |
|
$ 221.78 | |||||
| 13 | WPW10629046 | Assembly, Drum Light (Replaces: W10629046) |
|
$ 82.97 | |||||
| 14 | W10491983 | Cap (Replaces: 359702) |
|
- | |||||
| 15 | W10646770 | Assembly, Drum |
|
Immediately | $ 256.80 | ||||
| 16 | W10767074 | Baffle, Drum High |
|
$ 37.79 | |||||
| 17 | W10767090 | Baffle, Drum Low |
|
$ 39.12 | |||||
| 18 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 19 | W10665050 | Cap, Plug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 20 | W11189144 | Seal, Drum (Replaces: W10664120) |
|
$ 22.69 | |||||
| 21 | W11242876 | Housing, Outlet. (Replaces: W10608806) |
|
$ 110.26 | |||||
| 22 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 23 | W11165163 | Sensor, Electrode (Replaces: W10608814) |
|
$ 99.31 | |||||
| 24 | W11161899 | Sensor Jumper, Moisture (Replaces: W10657328) |
|
$ 15.89 | |||||
| 25 | W10608813 | Grille, Outlet |
|
$ 230.15 | |||||
| 26 | W10859086 | Lint Screen (grey) (Replaces: W10608811) |
|
$ 88.70 | |||||
| 27 | W10868982 | Lint Duct Assembly |
|
$ 196.38 | |||||
| 28 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 29 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 81.98 | ||||
| 30 | W10868675 | Seal, Lint Duct |
|
$ 78.46 | |||||
| 31 | W11246350 | Housing, Blower (Replaces: W10667717) |
|
Immediately | $ 98.52 | ||||
| 32 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 88.43 | ||||
| 33 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 34 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 35 | W10608817 | Pipe, Exhaust |
|
$ 77.08 | |||||
| 36 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 37 | W11314437 | Valve Hose Assy. (Replaces: W11136346) |
|
Immediately | $ 226.16 | ||||
| 38 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 33.43 | |||||
| 39 | W11230609 | Nozzle, Cap (Replaces: W11100488) |
|
Immediately | $ 8.24 | ||||
| 40 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| NI | W10623830 | Accessory Parts, Kit, Dryer - Premium Steam Hose (includes (1) 2' Hose And (1) 5' Hose, (1) Y Adapter And (5) Rubber Was |
|
Immediately | $ 43.68 | ||||
| NI | W10782875 | Accessory Parts, Dryer - Steam System Inlet Hose, 5 Ft (cold Water) |
|
$ 27.03 | |||||
| NI | W10044609A | Accessory Parts, Kit, Dryer - Steam Hose (includes (1) 3' Hose, (1) 5' Hose, (1) Y Adapter And (4) Rubber Washers.) |
|
Immediately | $ 22.46 | ||||
| NI | W10443301A | Accessory Parts, Kit, Dryer - Steam Hose (includes (1) 2' Hose, (1) 5' Hose, (1) Y Adapter, (2) Export (british) Adapter |
|
- |
