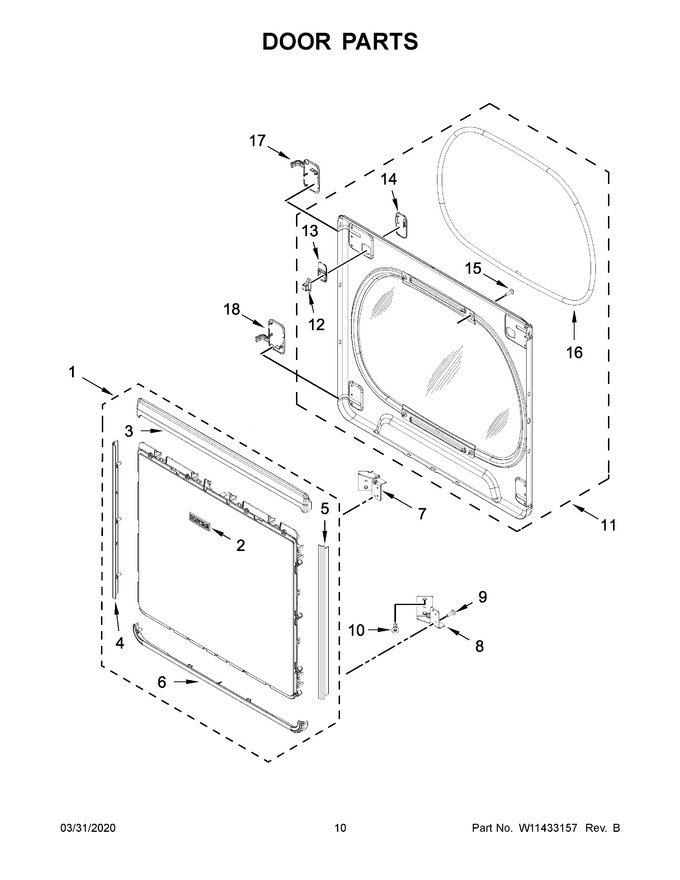

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11315255		Assembly, Outer Door		Appelez-nous	-
2	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
3	W10608739		Trim, Handle (top)				$ 281.56
4	W11315257		Trim, Side (left)		Appelez-nous	-
5	W11315258		Trim, Side (right)		Appelez-nous	-
6	W11315256		Trim, Side (bottom)		Appelez-nous	-
7	W10850024		Door, Hinge (upper)   (Replaces: W10783754)				$ 76.98
8	W10850044		Door, Hinge (lower)   (Replaces: W10783755)				$ 76.88
9	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 6.80
10	W10704731		Screw		Appelez-nous	-
11	W11162064		Assembly, Inner Door (chrome Shadow)   (Replaces: W10915195)				$ 274.92
12	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 23.90
13	W10669023		Bezel, Door Catch (chrome Shadow)				$ 21.28
14	W10669024		Cover, Door Catch (chrome Shadow)				$ 23.09
15	WP488627		Screw   (Replaces: 342055)				$ 7.30
16	W10763835		Seal, Door			Immediately	$ 116.81
17	W10631412		Hinge Cover, Top (chrome Shadow)				$ 25.76
18	W10631413		Hinge Cover, Bottom (chrome Shadow)		Appelez-nous	-
