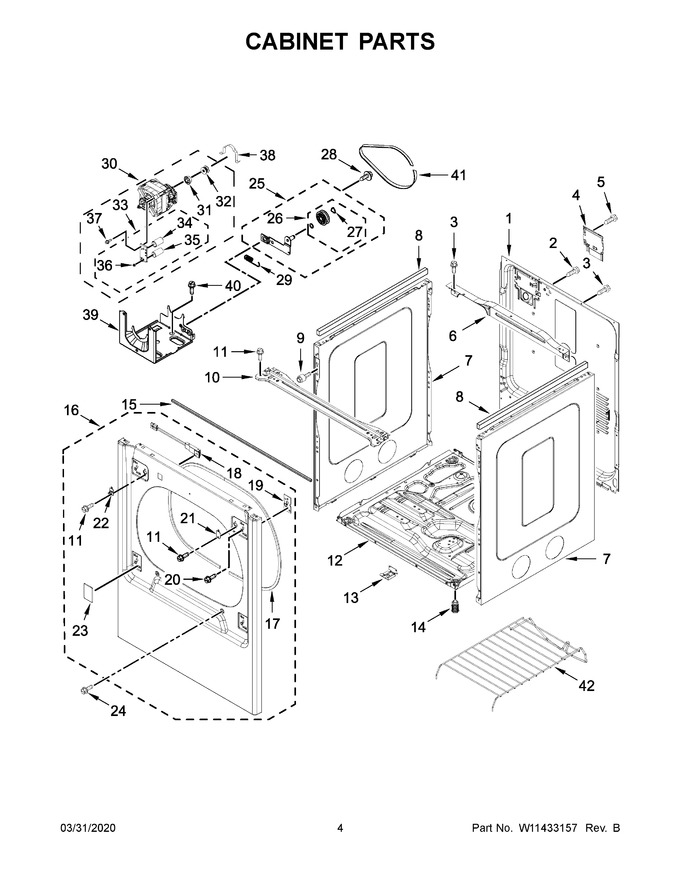

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Dryer Heating Parts-electric


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10824896		Panel, Rear				$ 280.18
2	W10850756		Screw   (Replaces: W10773242)				$ 7.38
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
4	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 93.64
5	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
6	W10622391		Bracket, Rear Panel Upper		Appelez-nous	-
7	W10681830		Panel, Side (chrome Shadow (without Cutout))				$ 315.50
8	W10316616		Seal, Foam				$ 25.01
9	W10636208		Screw		Appelez-nous	-
10	W10722502		Brace, Cab And Seal Assembly		Appelez-nous	-
11	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
12	W10613683		Base, Cabinet				$ 181.41
13	W10632347		Spacer Bracket, Lower		Appelez-nous	-
14	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
15	W11406199		Seal, Foam   (Replaces: W11261179)				$ 58.73
16	W10875891		Panel, Front (chrome Shadow)   (Replaces: W10861062)				$ 320.51
17	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
18	W11036551		Switch, Door   (Replaces: W10459026)			Immediately	$ 66.83
19	W10596959		Bracket, Hinge				$ 20.00
20	920119		Screw		Appelez-nous	-
21	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 26.72
22	W11163826		Strike   (Replaces: W10778071)				$ 23.95
23	W10596965		Plug, Hinge (chrome Shadow)		Appelez-nous	-
24	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.08
25	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 32.20
26	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 29.26
27	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.71
28	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
29	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
30	W11448775		Motor Assembly   (Replaces: W10824899)				$ 372.00
31	W10786088		Pulley, Motor				$ 74.55
32	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
33	W10565150		Bracket Assembly				$ 95.88
34	W10442539		Capacitor, Motor Run				$ 80.89
35	W10701357		Capacitor, Motor Start				$ 127.61
36	W10759923		Nut   (Replaces: W10604214)				$ 7.52
37	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.62
38	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 24.26
39	W10578053		Bracket, Motor Mounting				$ 83.00
40	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
41	W10849499		Belt, Drive   (Replaces: W10610882)			Immediately	$ 63.17
42	W10693998		Dry Rack		Appelez-nous	-
