SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

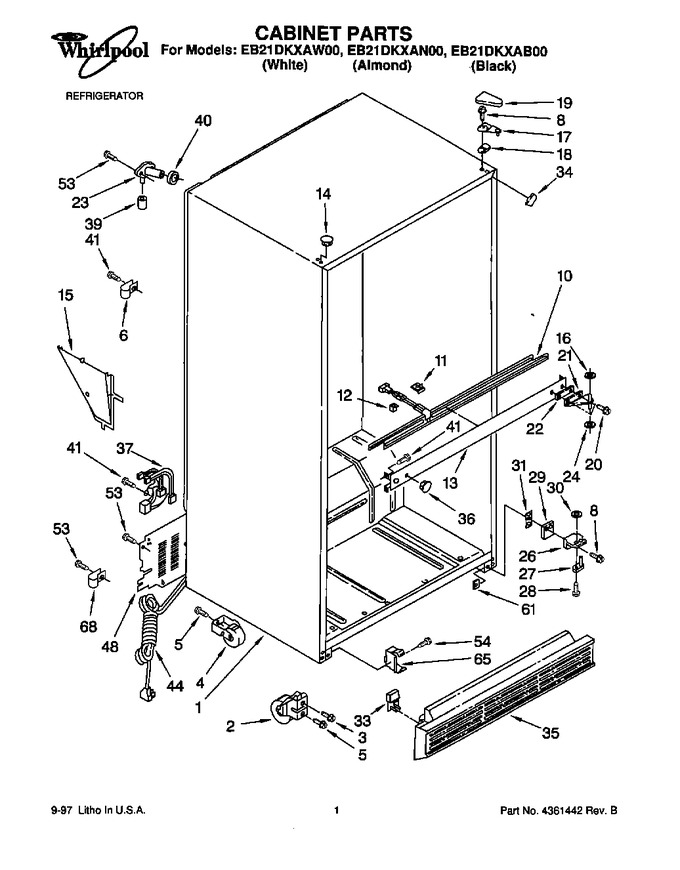

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489393		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2 (6)		Appelez-nous	-
6	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
8	WP999367		Screw   (Replaces: 489367)				$ 8.56
10	2157307		Heater, Mullion		Appelez-nous	-
11	2149060		Clip, Rail (4)		Appelez-nous	-
12	1115105		Spacer (3)		Appelez-nous	-
13	2152836		Center Rail		Appelez-nous	-
14	WP2151652		Hole Plug (white)   (Replaces: 2151652)				$ 22.87
14	2151653		Hole Plug (almond)		Appelez-nous	-
14	WP2183998		Hole Plug (black)   (Replaces: 2160802)				$ 19.01
15	2160492		Scoop, Air		Appelez-nous	-
16	WP489467		Washer-plain   (Replaces: 489341)			Immediately	$ 11.42
17	WP2189412		Hinge, Top   (Replaces: 2157593)				$ 120.23
18	2157269		Shim, Hinge Top		Appelez-nous	-
19	WP2213360		Hinge Cover (white)   (Replaces: 2160403)				$ 20.19
19	2160404		Hinge Cover (almond)		Appelez-nous	-
19	WP2213363		Hinge Cover (black)   (Replaces: 2160406)			Immediately	$ 19.12
20	WP999367		Screw   (Replaces: 489105)				$ 8.56
21	2147335		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting, Water Tube   (Replaces: 2154080)			Immediately	$ 12.59
24	WP487802		Washer, 11/64   (Replaces: 488184)			Immediately	$ 7.91
26	2148563		Hinge Butt, Bottom (chrome)		Appelez-nous	-
26	1123378		Hinge Butt, Bottom (black Model)		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	1123379		Shim, Bottom		Appelez-nous	-
30	489200		Washer, 7/32				$ 7.75
31	1121117		Spacer		Appelez-nous	-
33	1118078		Corner Filler, Grille (black)		Appelez-nous	-
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
34	2162679		Filler, Wrap Corner (black)		Appelez-nous	-
34	1118058		Filler, Wrap Corner (white)		Appelez-nous	-
34	1118059		Filler, Wrap Corner (almond)		Appelez-nous	-
35	1129001		Grille (black)		Appelez-nous	-
35	1125667		Grille (almond)		Appelez-nous	-
35	1125663		Grille (white)		Appelez-nous	-
36	1129062		Hole Plug (5) (white)		Appelez-nous	-
37	2153994		Wiring Assy. Intermediate		Appelez-nous	-
39	WP487996		Cap   (Replaces: 487996)				$ 8.67
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
41	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 8.18
44	937360		Cord, Service		Appelez-nous	-
48	2160490		Cover, Unit		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
54	WP489478		Screw   (Replaces: 489242)				$ 8.18
61	2147310		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 2155013)			Immediately	$ 8.11
68	549193		Clamp				$ 14.06

    View Diagram in Separate Window       Print Part List
