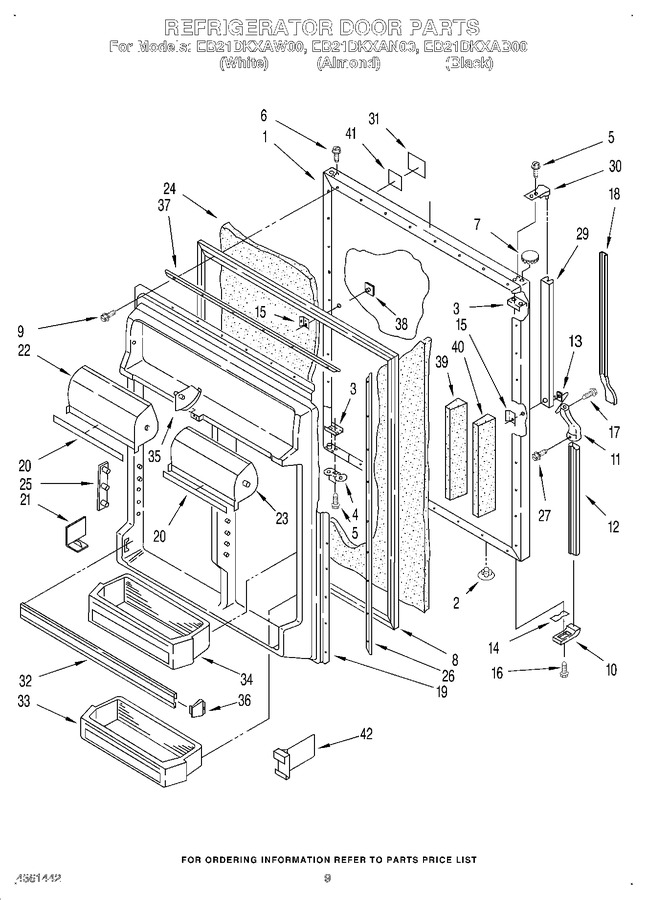

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2152806		Panel, Refrigerator Door (also Order Item 24) (white)		Appelez-nous	-
1	2160486		Panel, Refrigerator Door (also Order Item 24) (black)		Appelez-nous	-
1	2160485		Panel, Refrigerator Door (also Order Item 24) (almond)		Appelez-nous	-
2	989197		Almond		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
2	1110485		Hole Plug (black)		Appelez-nous	-
3	1123568		Plate, Tap (4)		Appelez-nous	-
4	2157749		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
8	2160437		Door Gasket, Magnetic (black Model)		Appelez-nous	-
8	2160435		Door Gasket, Magnetic (almond Model)				$ 54.38
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
10	944157		Handle End		Appelez-nous	-
11	1109189		Handle End, Side		Appelez-nous	-
12	2148665		Handle, Center (white Model)		Appelez-nous	-
12	1109057		Handle, Center (black Model)		Appelez-nous	-
12	945099		Handle, Center (almond Model)		Appelez-nous	-
13	935075		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	2160445		Insert, Handle (white Model)		Appelez-nous	-
18	2160476		Insert, Handle (black Model)		Appelez-nous	-
18	2160475		Insert, Handle (almond Model)		Appelez-nous	-
19	2160430		Interior Door Panel		Appelez-nous	-
20	1122750		Trim, Door Compartment		Appelez-nous	-
21	2160050		Divider-door		Appelez-nous	-
22	2148809		Compartment Door,		Appelez-nous	-
23	2148807		Compartment Door		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
25	1116986		Pin Plate				$ 12.10
26	986008		Gasket Retainer, Side (2)		Appelez-nous	-
27	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
29	2160446		Retainer, Insert		Appelez-nous	-
30	1105804		Endcap, Insert Retainer		Appelez-nous	-
31	2162698		Nameplate (almond Model)		Appelez-nous	-
31	2148544		Nameplate (white Model)		Appelez-nous	-
31	2162668		Nameplate (black Model)		Appelez-nous	-
32	2148616		Trim, Door Shelf		Appelez-nous	-
33	2148549		Bin, Door Shelf		Appelez-nous	-
34	2148550		Bin, Door Shelf Deep		Appelez-nous	-
35	WP1118001		Hinge Pin, Center   (Replaces: 1118001)				$ 8.06
36	4386917		End Cap Trim   (Replaces: 1105685)			Immediately	$ 18.90
37	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
38	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.77
38	WP2189009		Hole Plug, Handle (black)   (Replaces: 2160809)				$ 7.61
38	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
39	1122711		Reinforcement-mid		Appelez-nous	-
40	1122709		Reinforcement, Side		Appelez-nous	-
41	991259		Tape Strip		Appelez-nous	-
42	2152335		Divider, Bin		Appelez-nous	-
