SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

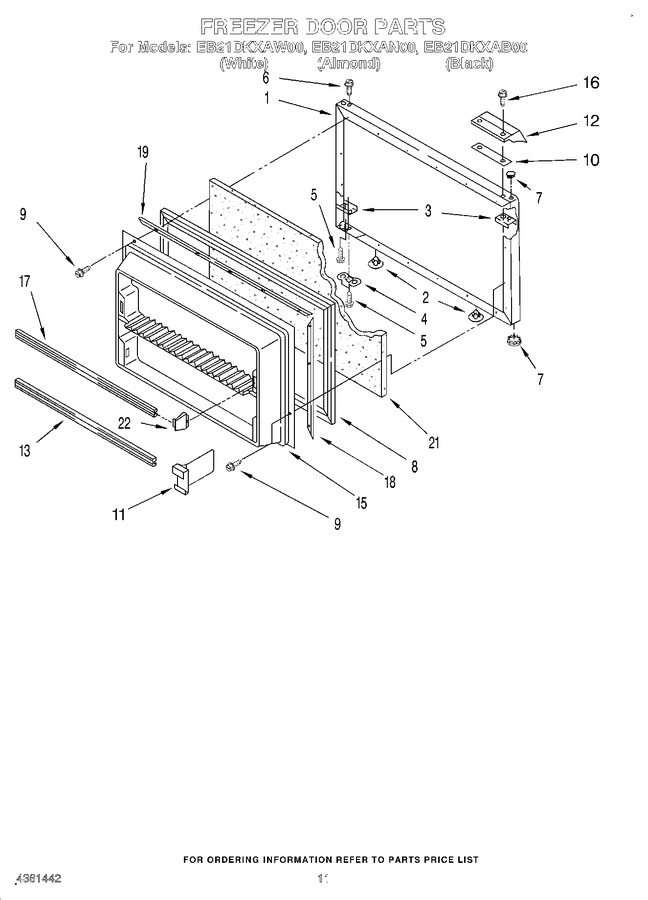

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2152871		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	2161799		Panel, Freezer Door (also Order Item 21) (black)		Appelez-nous	-
1	2161785		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	1110485		Hole Plug (black)		Appelez-nous	-
2	989197		Hole Plug (almond)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
3	1123568		Plate, Tap (4)		Appelez-nous	-
4	2157748		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 24.21
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2160436		Door Gasket (almond Model)		Appelez-nous	-
8	2160438		Door Gasket (black Model)		Appelez-nous	-
9	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
10	989711		Shim		Appelez-nous	-
11	1123293		Divider, Shelf		Appelez-nous	-
12	657077		Handle		Appelez-nous	-
13	2152878		Trim, Door Shelf		Appelez-nous	-
15	2152814		Interior Door Panel		Appelez-nous	-
16	488935		Screw		Appelez-nous	-
17	2152876		Trim, Door		Appelez-nous	-
18	986015		Gasket Retainer, Side (2)		Appelez-nous	-
19	1122552		Gasket Retainer, Top & Bottom		Appelez-nous	-
21	876029		Kit, Foam Slab		Appelez-nous	-
22	4386917		End Cap, Trim (4)   (Replaces: 1105685)			Immediately	$ 18.90

    View Diagram in Separate Window       Print Part List
