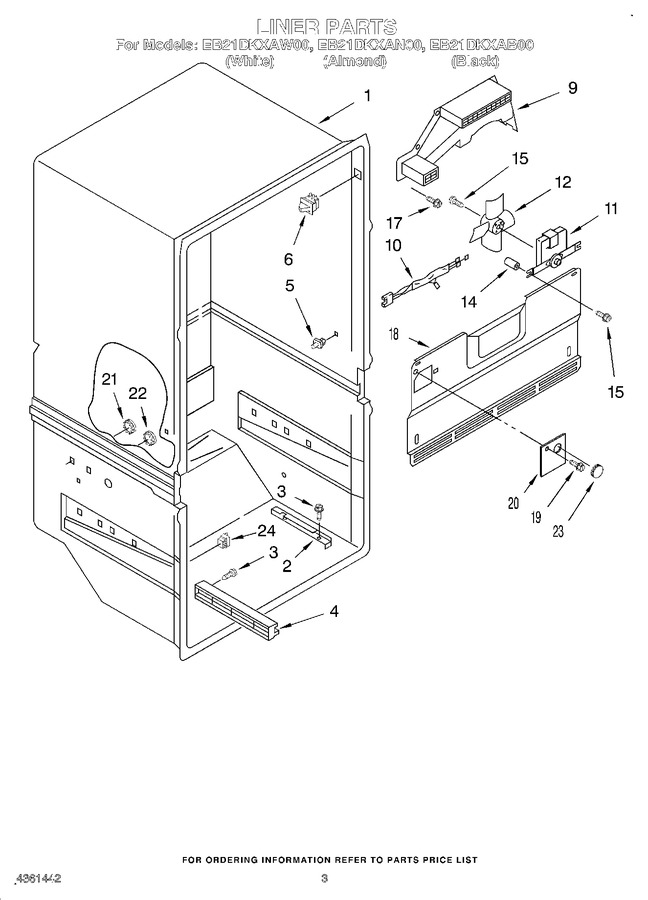

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	986383		Slide, Basket (left Side)		Appelez-nous	-
2	986382		Slide, Basket (right Side)		Appelez-nous	-
3	W11693756		Screw   (Replaces: 487042)			Immediately	$ 14.76
4	2149174		Shelf, Track (l.s.)		Appelez-nous	-
4	2149175		Shelf, Track (r.s.)		Appelez-nous	-
5	1106612		Shelf Stud (2)				$ 7.56
6	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
9	2152779		Scroll, Fan		Appelez-nous	-
10	1127434		Wiring Assembly, Fan Motor		Appelez-nous	-
11	2160412		Fan Motor		Appelez-nous	-
12	2160471		Fan Blade		Appelez-nous	-
14	531933		Grommet (2)				$ 5.70
15	489168		Screw (2)		Appelez-nous	-
17	WP489478		Screw (4)   (Replaces: 489242)				$ 8.18
18	2152796		Cover, Evaporator		Appelez-nous	-
19	WP488729		Screw (7)   (Replaces: 489196)			Immediately	$ 8.28
20	2152827		Hole Cover, Evaporator		Appelez-nous	-
21	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 8.03
22	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
23	1103725		Hole Plug		Appelez-nous	-
24	W11457217		Switch   (Replaces: 1115373)				$ 40.09
