| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11504344 |
|
Owner's Manual |
|
Appelez-nous
|
- |
|
|
|
| 2 |
ARI0E0595B5C30868CDEDF430A9DC24D80C |
|
Cabinet (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
WP2260503B |
 |
Button, Water Filter (black) (Replaces: 2260503B) |
|
|
|
$ 76.42 |
|
|
| 4 |
WPW10138054 |
 |
Roller Assembly (Replaces: W10138054) |
|
|
|
$ 45.34 |
|
|
| 5 |
W10860229 |
 |
Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
|
|
$ 381.83 |
|
|
| 6 |
W11238395 |
 |
Cap, Water Filter (black) (Replaces: W10797527) |
|
|
Immediately |
$ 50.68 |
|
|
| 7 |
W10839844 |
|
Bracket, Grill Mounting (Replaces: 2307640) |
|
|
|
$ 43.26 |
|
|
| 8 |
2307584 |
|
Grommet, Crossover Tube |
|
|
|
$ 23.40 |
|
|
| 9 |
2005433 |
|
Spacer |
|
|
|
$ 23.33 |
|
|
| 10 |
WPW10121140 |
 |
Housing, Water Filter (Replaces: W10121140) |
|
|
Immediately |
$ 270.85 |
|
|
| 11 |
2318189 |
|
Tray, Filter Drip |
|
|
|
$ 148.73 |
|
|
| 12 |
3400525 |
|
Screw |
|
|
|
$ 12.83 |
|
|
| 13 |
EDR3RXD1B |
 |
Filter, Water (Replaces: W10121146) |
|
|
Immediately |
$ 49.99 |
|
|
| 14 |
00487294 |
|
Screw (Replaces: 487294) |
|
|
|
$ 175.09 |
|
|
| 15 |
W11769878 |
|
Screw (Replaces: 3400230) |
|
|
|
$ 12.77 |
|
|
| 16 |
2257644 |
 |
Hinge, Top |
|
|
|
$ 177.98 |
|
|
| 17 |
W11755873 |
|
Bracket, Filter (Replaces: W11695780) |
|
|
|
$ 80.33 |
|
|
| 18 |
WP489464 |
 |
Screw (Replaces: W10001250) |
|
|
Immediately |
$ 8.38 |
|
|
| 19 |
WP2004994 |
 |
Lock, Bushing (Replaces: 2004994) |
|
|
Immediately |
$ 8.39 |
|
|
| 20 |
W11298172 |
 |
Arm, Door Closer Extension (left Hand) (Replaces: W10709785) |
|
|
Immediately |
$ 87.43 |
|
|
| 21 |
W11805224 |
|
Spring, Door Closure (green) (Replaces: 2221242) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.72 |
|
|
| 23 |
WP489236 |
 |
Ring, Bushing Retaining (Replaces: 2005008) |
|
|
Immediately |
$ 12.78 |
|
|
| 24 |
W11439643 |
|
Shield, Water Valve |
|
|
|
$ 125.86 |
|
|
| 25 |
W11700297 |
|
Cover, Bottom Gap (Replaces: W10482554) |
|
|
Immediately |
$ 38.28 |
|
|
| 26 |
W10527053 |
 |
Hinge, Bottom (left Hand) (Replaces: 2006779) |
|
|
|
$ 137.73 |
|
|
| 27 |
WP2302876 |
 |
Bushing, Adjustable (Replaces: 2302876) |
|
|
Immediately |
$ 90.72 |
|
|
| 28 |
W11721628 |
|
Screw (Replaces: W11370632) |
|
|
Immediately |
$ 14.78 |
|
|
| 29 |
WP2209024B |
 |
Skirt, Bottom Grille (black) (Replaces: 2209024B) |
|
|
|
$ 169.87 |
|
|
| 30 |
W11634221 |
|
Tube, Water (Replaces: W11449524) |
|
|
|
$ 92.77 |
|
|
| 31 |
W11739149 |
|
Grille, Bottom (black) (Replaces: W11695789) |
|
|
Immediately |
$ 209.08 |
|
|
| 32 |
W11663448 |
|
Tube, Water Filter (Replaces: W11450887) |
|
|
|
$ 57.93 |
|
|
| 33 |
2006616 |
 |
Bracket, Support (left Hand) |
|
|
|
$ 91.53 |
|
|
| 34 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 8.40 |
|
|
| 35 |
2006617 |
|
Bracket, Base Support (rear) |
|
Appelez-nous
|
- |
|
|
|
| 36 |
WP2006346 |
 |
Washer, Extension Arm (Replaces: 2006346) |
|
|
Immediately |
$ 11.76 |
|
|
| 37 |
W11246413 |
|
Valve, Isolation (no Flow Washer) (Replaces: W10578757) |
|
|
Immediately |
$ 198.88 |
|
|
| 38 |
2320559 |
|
Support, Valve |
|
|
|
$ 88.79 |
|
|
| 39 |
WP2300868 |
 |
Connector, Union (Replaces: W10271541) |
|
|
Immediately |
$ 36.99 |
|
|
| 40 |
WP8281163 |
 |
Screw (stainless) (Replaces: 8281163) |
|
|
Immediately |
$ 10.70 |
|
|
| 41 |
W11396033 |
 |
Switch, Rocker (refrigerator) (Replaces: W10847848) |
|
|
Immediately |
$ 37.30 |
|
|
| 42 |
W11756944 |
|
Cover, Switch (Replaces: W11695310) |
|
Appelez-nous
|
- |
|
|
|
| 43 |
WP965173 |
|
Screw (Replaces: 487415) |
|
|
Immediately |
$ 11.87 |
|
|
| 44 |
W11610480 |
|
Bracket, Switch (left Hand) |
|
|
|
$ 76.49 |
|
|
| 45 |
2215612 |
|
Cover, Air Duct |
|
Appelez-nous
|
- |
|
|
|
| 46 |
2005032 |
|
Leveler, Adjustable |
|
|
Immediately |
$ 200.07 |
|
|
| 47 |
2006841 |
|
Ring, Retainer |
|
|
|
$ 92.66 |
|
|
| 48 |
WP2320509 |
|
Stop, Door (Replaces: 2320509) |
|
|
|
$ 29.95 |
|
|
| 49 |
W10780213 |
|
Assembly, Switch Wire |
|
|
|
$ 130.91 |
|
|
| 50 |
W10833902 |
|
Clamp, Tube (Replaces: 2221070) |
|
|
|
$ 11.54 |
|
|
| 51 |
W11212166 |
 |
Fitting, Water (Replaces: W10357286) |
|
|
Immediately |
$ 40.93 |
|
|
| 52 |
W11421923 |
|
Harness, Water Valve |
|
|
|
$ 174.72 |
|
|
| 53 |
W10847867 |
|
Bracket, Water Valve (Replaces: W10237915) |
|
|
|
$ 80.75 |
|
|
| 54 |
WPW10279866 |
 |
Assembly, Dual Valve (Replaces: W10279866) |
|
|
Immediately |
$ 240.40 |
|
|
| 55 |
W11634223 |
|
Waterline (Replaces: W11447812) |
|
|
Immediately |
$ 136.46 |
|
|
| 56 |
W10782424 |
|
Locking Ring(5/16") |
|
Appelez-nous
|
- |
|
|
|
| 57 |
WP2316859 |
 |
Bushing, Extension Arm (Replaces: 2316859) |
|
|
Immediately |
$ 54.20 |
|
|
| 58 |
W11177574 |
|
Screw (Replaces: W10485630) |
|
|
|
$ 14.84 |
|
|
| 59 |
W11171640 |
|
Cover, Hinge Pin (Replaces: W11103275) |
|
|
Immediately |
$ 32.63 |
|
|
| 60 |
W11500952 |
|
Bushing, Top Hinge (Replaces: W10484913) |
|
|
Immediately |
$ 34.74 |
|
|
| 61 |
W11354227 |
|
Screw (Replaces: W10761279) |
|
|
|
$ 14.77 |
|
|
| 62 |
WP8533914 |
|
Washer, Lock (Replaces: 8533914) |
|
|
Immediately |
$ 4.72 |
|
|
| 63 |
W11089212 |
|
Washer (Replaces: 3392186) |
|
|
|
$ 11.06 |
|
|
| 1A |
W11648175 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W11494196 |
|
Tech Sheet |
|
Appelez-nous
|
- |
|
|
|
| 20A |
W10847927 |
 |
Arm, Door Closer Extension (right Hand) (Replaces: W10728112) |
|
|
|
$ 99.91 |
|
|
| 26A |
WP2006780 |
 |
Hinge, Bottom (right Hand) (Replaces: 2006780) |
|
|
|
$ 299.33 |
|
|
| 33A |
2006556 |
|
Bracket, Support (right Hand) |
|
|
|
$ 37.20 |
|
|
| 41A |
W11291138 |
 |
Switch, Rocker (Replaces: W10847852) |
|
|
Immediately |
$ 36.67 |
|
|
| 44A |
W11610479 |
|
Bracket, Switch (right Hand) |
|
Appelez-nous
|
- |
|
|
|
| 56A |
W10782423 |
|
Locking Ring (1/4") |
|
|
|
$ 24.37 |
|
|
| 5A |
W10860448 |
 |
Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
|
Immediately |
$ 383.00 |
|
|

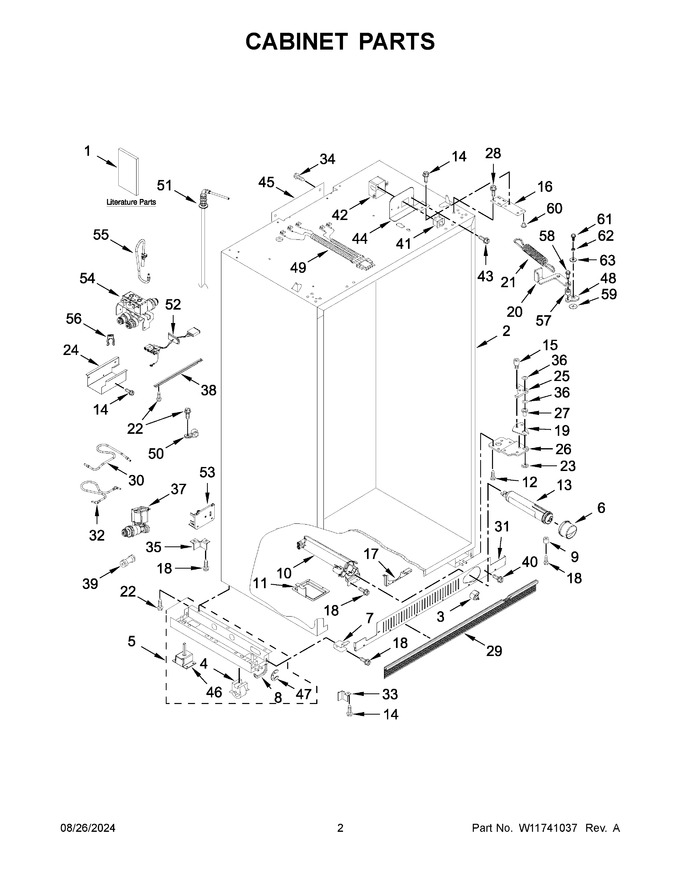

View Diagram in Separate Window
