SELECT A DIAGRAM

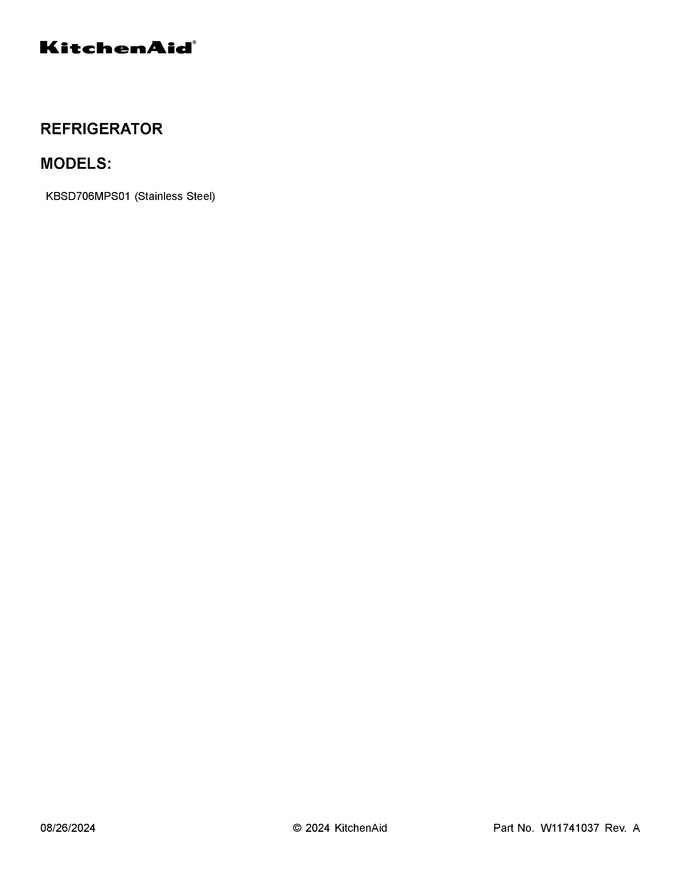

01 - Cover Sheet
02 - Cabinet Parts
03 - Cabinet Trim Parts

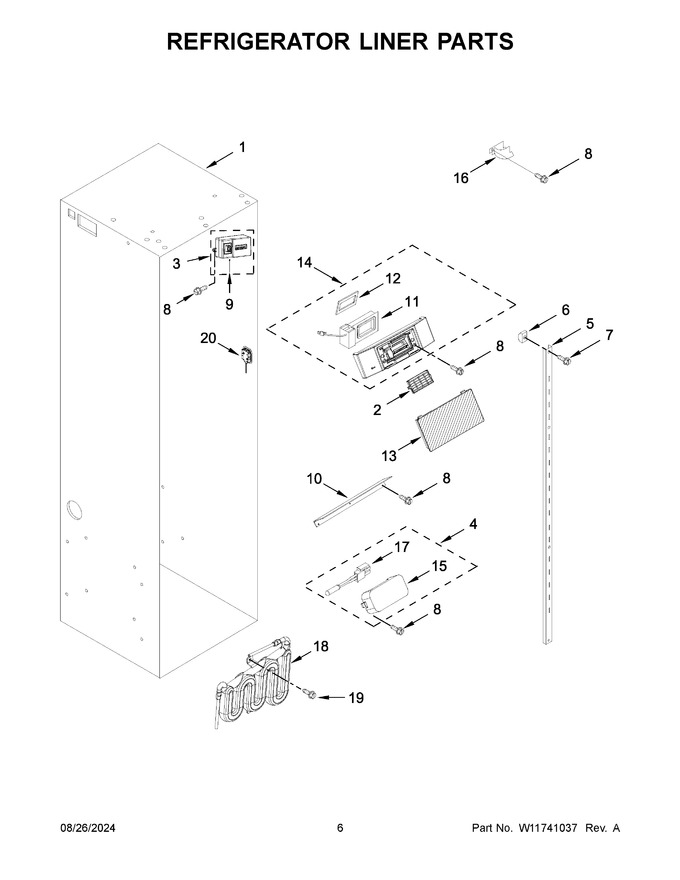

04 - Refrigerator Liner Parts
05 - Freezer Liner And Air Flow Parts
06 - Icemaker And Ice Container Parts

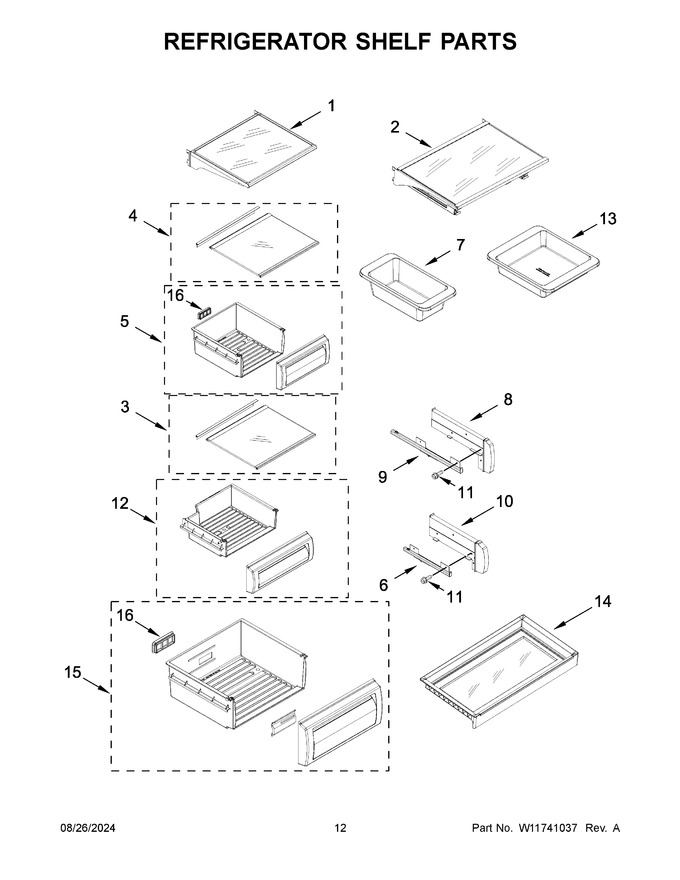

07 - Refrigerator Shelf Parts
08 - Freezer Shelf Parts

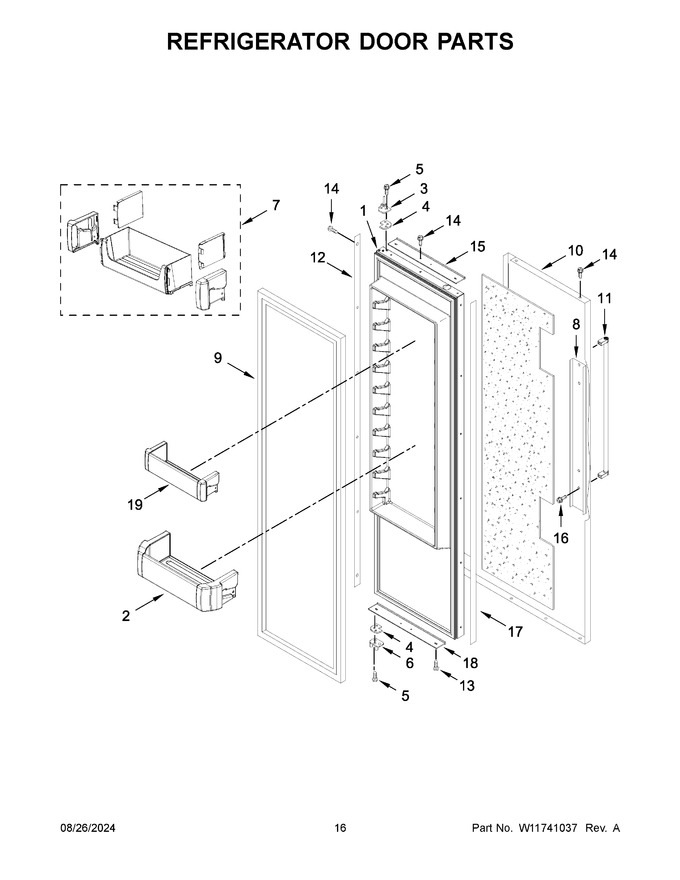

09 - Refrigerator Door Parts
10 - Freezer Door Parts

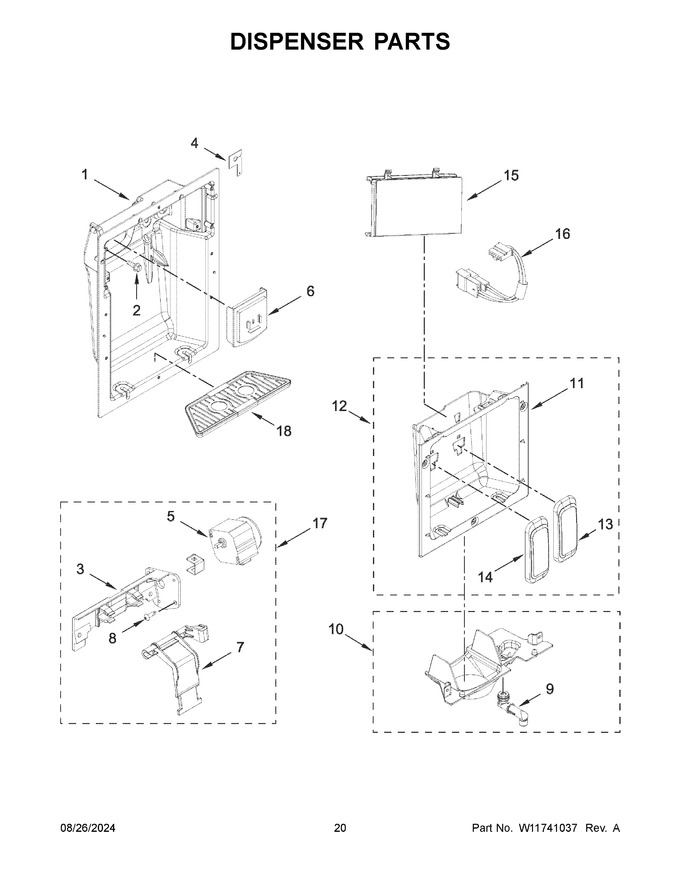

11 - Dispenser Parts

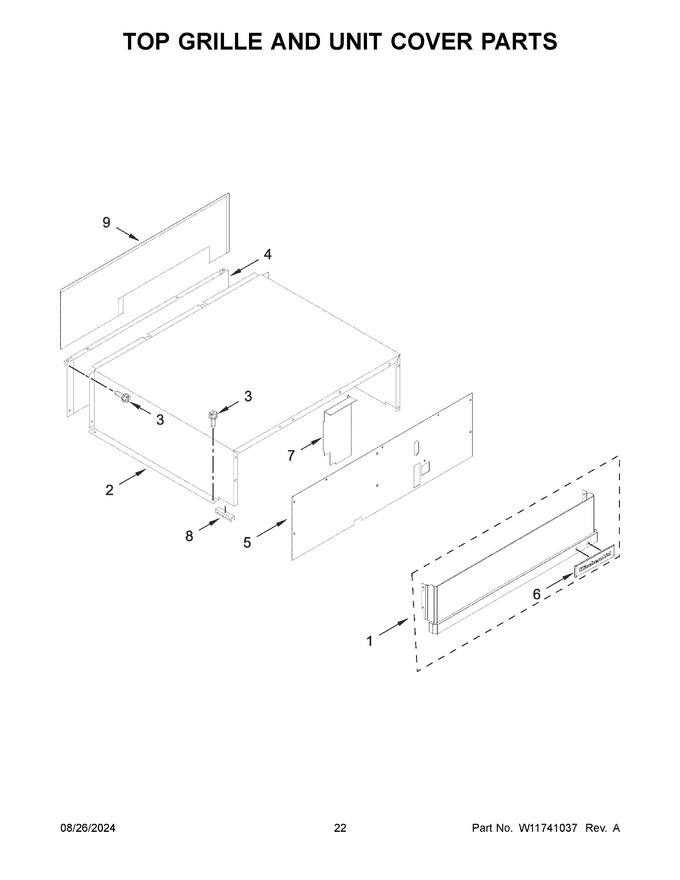

12 - Top Grille And Unit Cover Parts
13 - Upper Unit Parts

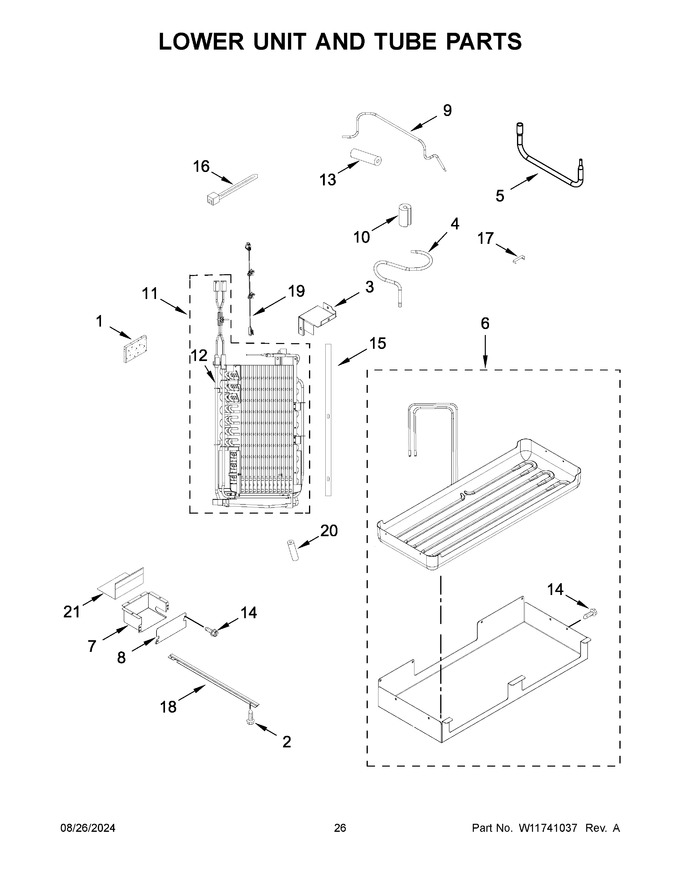

14 - Lower Unit And Tube Parts
Cabinet Parts
Cabinet Trim Parts
Dispenser Parts
Freezer Door Parts
Freezer Liner And Air Flow Parts
Freezer Shelf Parts
Icemaker And Ice Container Parts
Lower Unit And Tube Parts
Refrigerator Door Parts
Refrigerator Liner Parts
Refrigerator Shelf Parts
Top Grille And Unit Cover Parts
Upper Unit Parts
