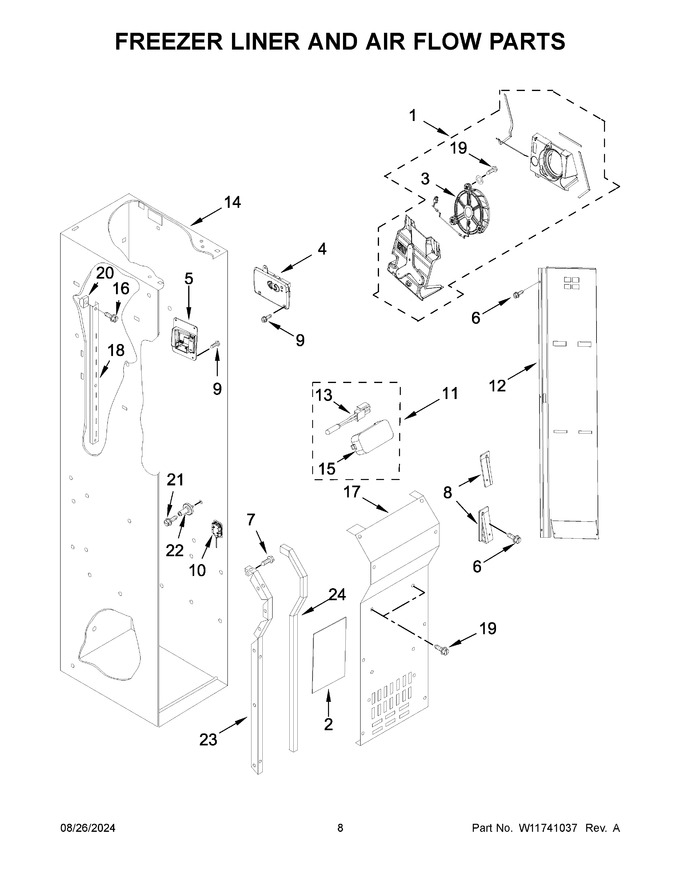

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11631625 |
|
Assembly, Evaporator Fan (Replaces: W11437866) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11748378 |
|
Gasket, Fc Evaporator Bypass (Replaces: W11678122) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
W11618271 |
|
Fan, Evaporator (Replaces: W11544700) |
|
|
Immediately |
$ 208.83 |
|
|
| 4 |
W11737648 |
|
Assembly, Receiver Control (Replaces: W11667268) |
|
|
|
$ 271.04 |
|
|
| 5 |
W11748346 |
|
Assembly, Emiiter Control (Replaces: W11667267) |
|
|
|
$ 273.32 |
|
|
| 6 |
WP489464 |
 |
Screw (Replaces: W10001250) |
|
|
Immediately |
$ 7.54 |
|
|
| 7 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 13.25 |
|
|
| 8 |
W11447235 |
|
Wedge, Air Duct (left Hand) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W11748041 |
|
Screw (stainless) (Replaces: W11672062) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
W11484836 |
 |
Assembly, Led Module (Replaces: W11229041) |
|
|
Immediately |
$ 24.31 |
|
|
| 11 |
W11625042 |
|
Assembly, Thermistor (Replaces: W11550866) |
|
|
Immediately |
$ 60.07 |
|
|
| 12 |
W11410841 |
|
Duct, Fc Air |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP2188820 |
 |
Thermistor (Replaces: 2188820) |
|
|
Immediately |
$ 27.77 |
|
|
| 14 |
ARI8B23AD81B97D70C7853D17BAA6EEAA2D |
|
Liner (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
W10609678 |
|
Cover, Thermistor |
|
|
|
$ 35.27 |
|
|
| 16 |
W10808291 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 17 |
W11756948 |
|
Cover, Evaporator (Replaces: W11497293) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W11625043 |
|
Ladder, Shelf (Replaces: W11481390) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
WP488729 |
 |
Screw (stainless) (Replaces: 487539) |
|
|
Immediately |
$ 7.45 |
|
|
| 20 |
520965 |
 |
Support, Ladder |
|
|
|
$ 28.22 |
|
|
| 21 |
W10191952 |
|
Screw |
|
|
|
$ 5.65 |
|
|
| 22 |
W11627395 |
|
Assembly, Shelf Stud (Replaces: W11445126) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
W11756941 |
|
Rail, Evaporator Cover (left Hand) (Replaces: W11695307) |
|
Appelez-nous
|
- |
|
|
|
| 24 |
W11467833 |
|
Gasket, Evaporator Cover |
|
Appelez-nous
|
- |
|
|
|
| 23A |
W11756942 |
|
Rail, Evaporator Cover (right Hand) (Replaces: W11695308) |
|
Appelez-nous
|
- |
|
|
|
| 8A |
W11447234 |
|
Wedge, Air Duct (right Hand) |
|
Appelez-nous
|
- |
|
|
|
