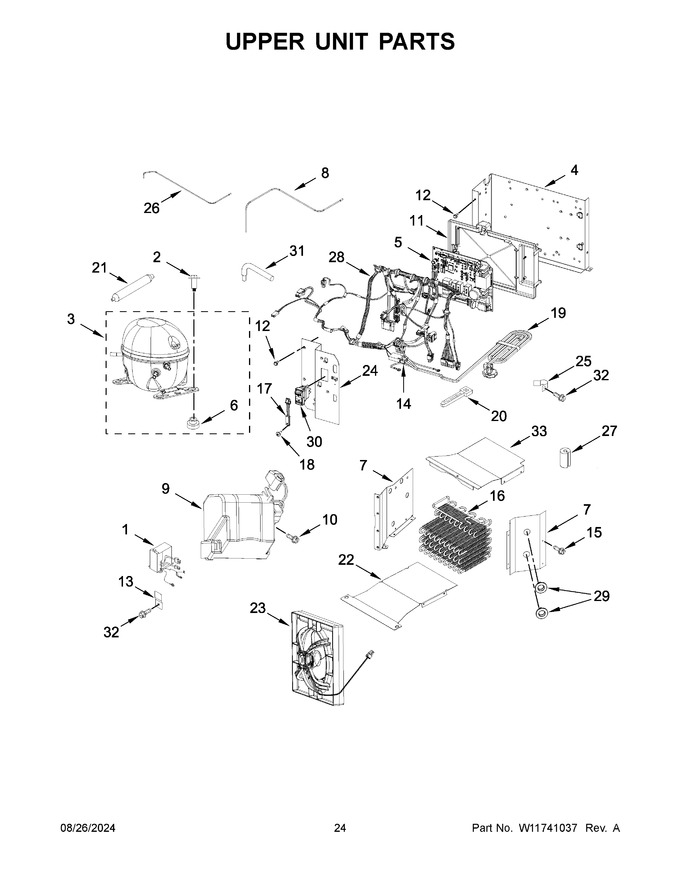

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W11623097 |
|
Assembly, Inverter Box (Replaces: W11411269) |
|
|
Immediately |
$ 337.94 |
|
|
| 2 |
W11661574 |
|
Screw (Replaces: 489473) |
|
|
|
$ 14.29 |
|
|
| 3 |
W11557671 |
|
Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11332037) |
|
|
Immediately |
$ 728.13 |
|
|
| 4 |
W10550831 |
|
Housing, Control Board Mounting |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W11752963 |
|
Control, Electronic (Replaces: W11444684) |
|
|
Immediately |
$ 378.82 |
|
|
| 6 |
W11661108 |
|
Grommet (Replaces: 2183042) |
|
|
|
$ 15.21 |
|
|
| 7 |
W11756945 |
|
Support, Condenser (left Hand) (Replaces: W11695311) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W11777981 |
|
Tube, Heat Loop Transition (Replaces: W11602251) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W11247667 |
|
Assembly, Compressor Cover (Replaces: W11235263) |
|
|
|
$ 115.24 |
|
|
| 10 |
WP9741232 |
 |
Screw (Replaces: 9741232) |
|
|
Immediately |
$ 5.07 |
|
|
| 11 |
W11623130 |
|
Housing, Control Board (Replaces: W11435369) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WP965173 |
|
Screw (Replaces: 487415) |
|
|
Immediately |
$ 11.87 |
|
|
| 13 |
2256328 |
|
Bracket, Inverter Mounting |
|
Appelez-nous
|
- |
|
|
|
| 14 |
2310195 |
|
Assembly, Jumper Wire (power Switch To Power Cord) |
|
|
|
$ 123.20 |
|
|
| 15 |
WP489069 |
 |
Screw (Replaces: 1157158) |
|
|
Immediately |
$ 8.40 |
|
|
| 16 |
W11693236 |
|
Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11601407) |
|
|
|
$ 165.30 |
|
|
| 17 |
W11627456 |
|
Sensor, Relative Humidity (Replaces: W11482040) |
|
|
|
$ 92.93 |
|
|
| 18 |
W10068580 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 19 |
2310196 |
 |
Cord, Power |
|
|
Immediately |
$ 88.52 |
|
|
| 20 |
WPW10339879 |
 |
Tie, Wire (Replaces: 2263990) |
|
|
|
$ 8.30 |
|
|
| 21 |
W11109499 |
 |
Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
|
Immediately |
$ 39.12 |
|
|
| 22 |
W11756954 |
|
Bracket, Condenser Bottom (Replaces: W11695784) |
|
Appelez-nous
|
- |
|
|
|
| 23 |
W11623099 |
|
Assembly, Condenser Fan (Replaces: W11464545) |
|
|
|
$ 146.65 |
|
|
| 24 |
W11435371 |
|
Bracket, Control Assembly |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W11234470 |
|
Clamp, Power Cord (Replaces: W11242280) |
|
|
|
$ 22.12 |
|
|
| 26 |
W11735284 |
|
Tube, Drier Transition (Replaces: W11602250) |
|
|
Immediately |
$ 59.94 |
|
|
| 27 |
W10852725 |
 |
Grommet, Condenser (Replaces: 2319835) |
|
|
|
$ 8.09 |
|
|
| 28 |
W11421662 |
|
Harness, Unit Wire |
|
|
|
$ 210.50 |
|
|
| 29 |
W10587113 |
|
Grommet |
|
Appelez-nous
|
- |
|
|
|
| 30 |
W11623128 |
|
Switch, Power Disconnect (Replaces: W11311927) |
|
|
|
$ 125.83 |
|
|
| 31 |
W11482820 |
|
Tube, Process |
|
|
Immediately |
$ 36.53 |
|
|
| 32 |
W11624204 |
|
Screw (Replaces: 486194) |
|
|
|
$ 14.72 |
|
|
| 33 |
W11756951 |
|
Cover, Condenser Support (Replaces: W11695783) |
|
Appelez-nous
|
- |
|
|
|
| 16A |
W11504445 |
 |
5/4 Nr Ms 00 (high Side To Condenser) |
|
|
Immediately |
$ 28.92 |
|
|
| 16B |
W11504445 |
|
5/4 Nr Ms 00 (high Side To Condenser) |
|
|
Immediately |
$ 28.92 |
|
|
| 21A |
W11504445 |
|
5/4 Nr Ms 00 (high Side To Condenser) |
|
|
Immediately |
$ 28.92 |
|
|
| 21B |
W11504432 |
 |
6/5 Nr Ms 00 (heat Loop To Condenser) |
|
|
Immediately |
$ 25.88 |
|
|
| 3A |
W11504415 |
 |
8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
|
Immediately |
$ 25.89 |
|
|
| 3B |
W11504431 |
 |
7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
|
Immediately |
$ 27.13 |
|
|
| 3C |
W11504416 |
 |
8.5/6 Nr Ms 00 (suction Tube To Compressor) |
|
|
Immediately |
$ 27.51 |
|
|
| 7A |
W11756946 |
|
Support, Condenser (right Hand) (Replaces: W11695312) |
|
Appelez-nous
|
- |
|
|
|
| NI |
ARI6A800044A9CA84CC57A08DC4A712652B |
|
Refrigerant Charge 61 Grams (r600a) |
|
Appelez-nous
|
- |
|
|
|
